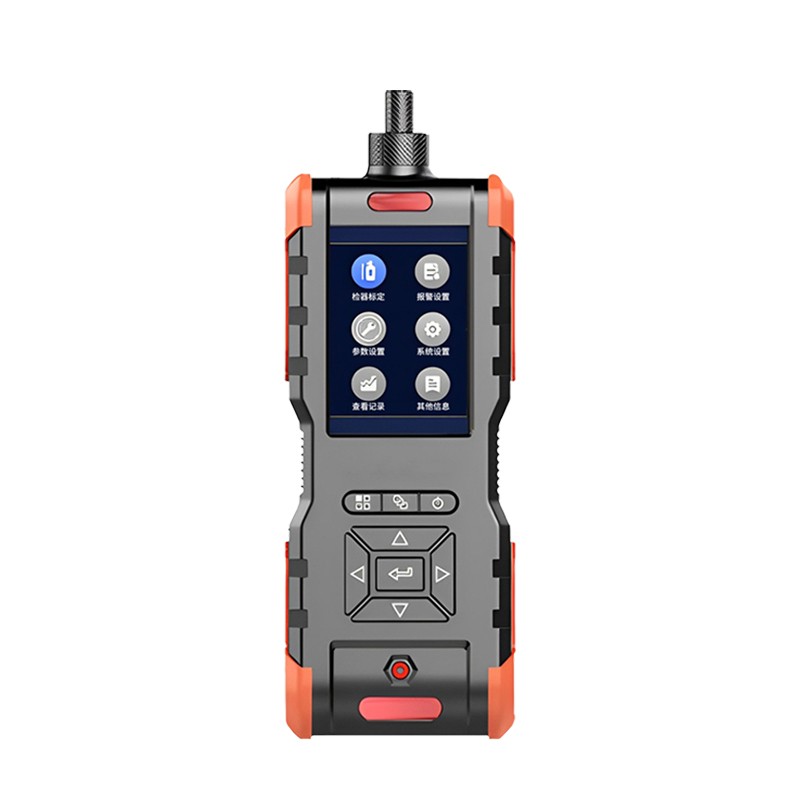

Handheld VOC Detector

【Introduction】PID-based VOC measurement with selectable ranges up to 10000 ppm, a 3.5-inch color display and an adjustable sampling pump up to 500 mL/min.

Product model: HM-SVOC

+86 17853698681

Product details
Detail image
Related products
Related articles

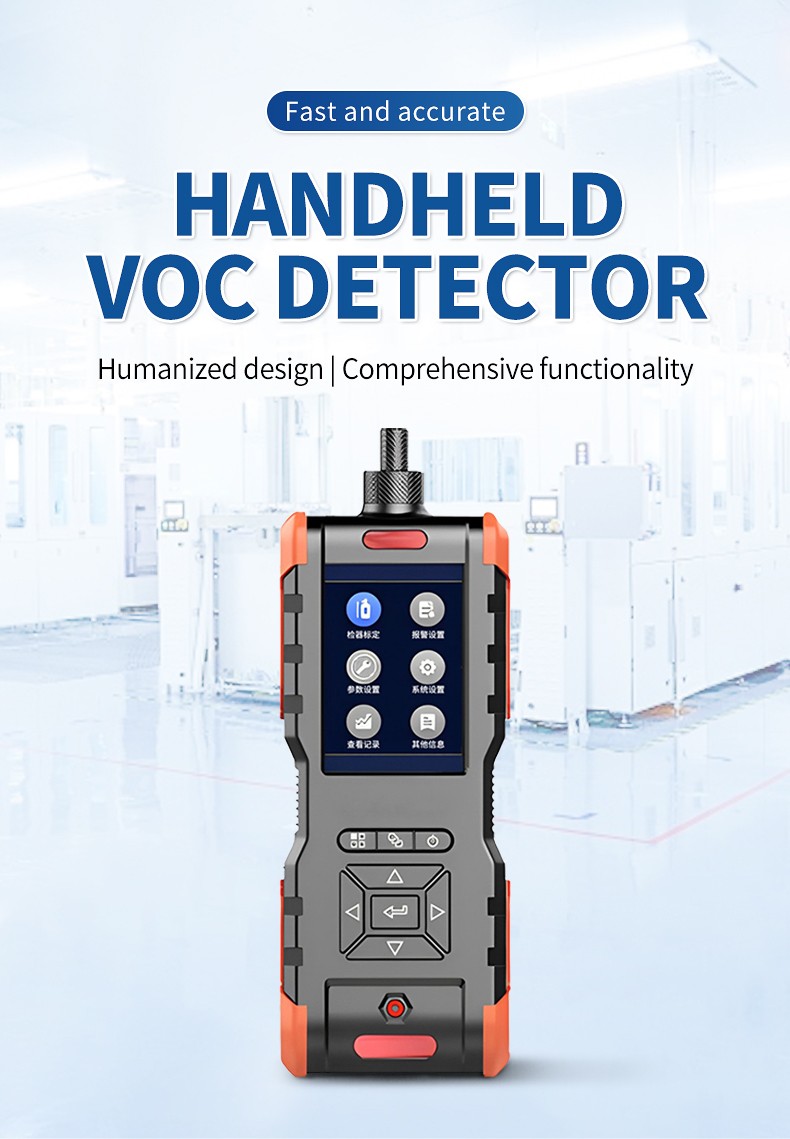

Handheld PID VOC detector product presentation

VOC detector PID sensor, pump and display features

VOC detector industrial and environmental application scenarios

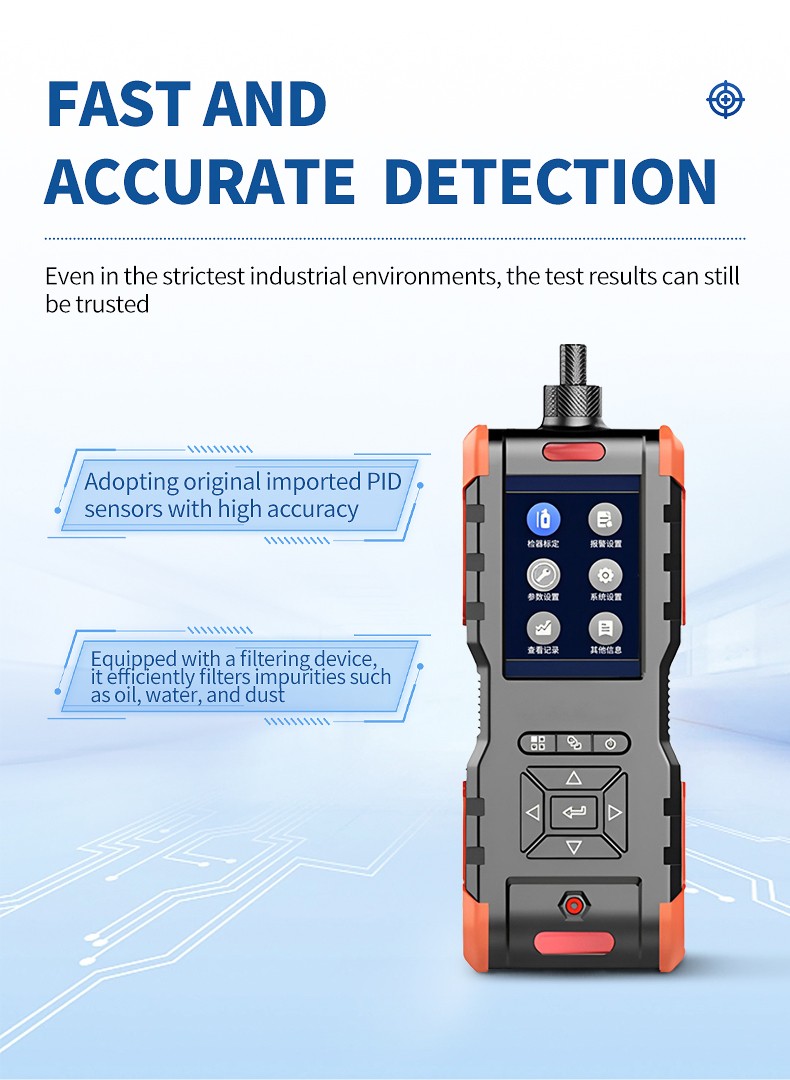

PID VOC detector sensing and inlet filtration illustration

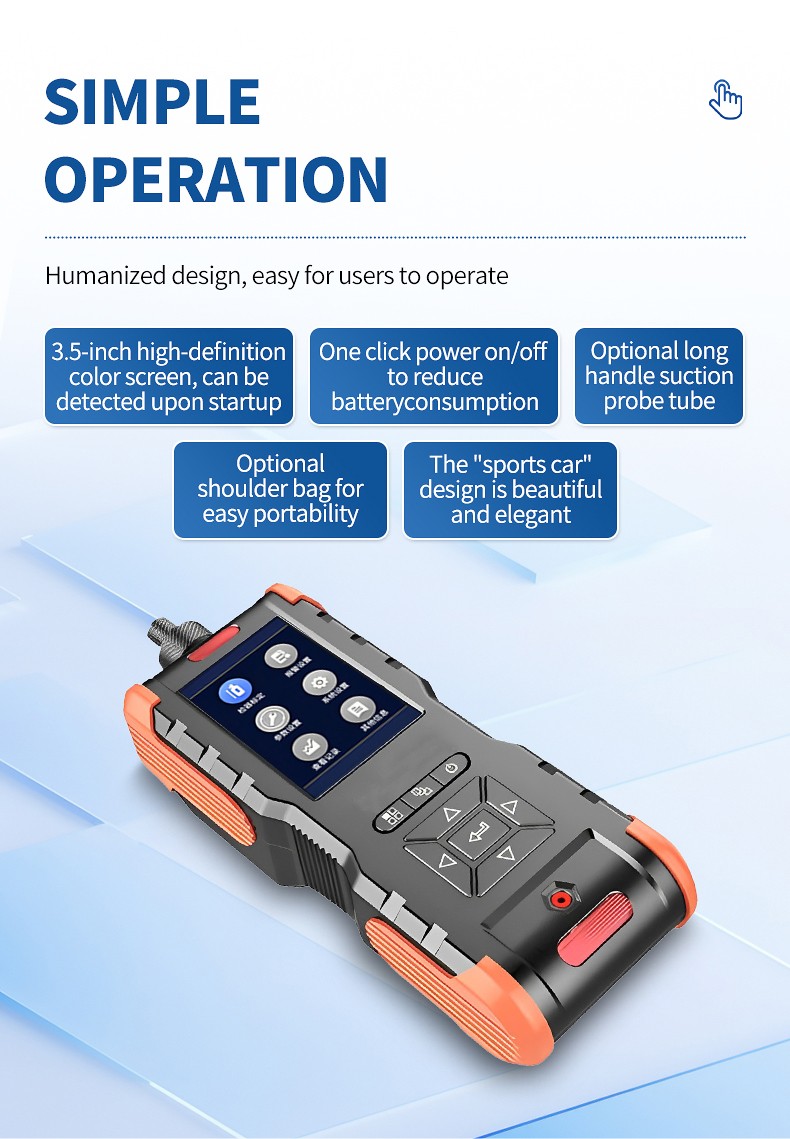

Handheld VOC detector controls and optional sampling accessories

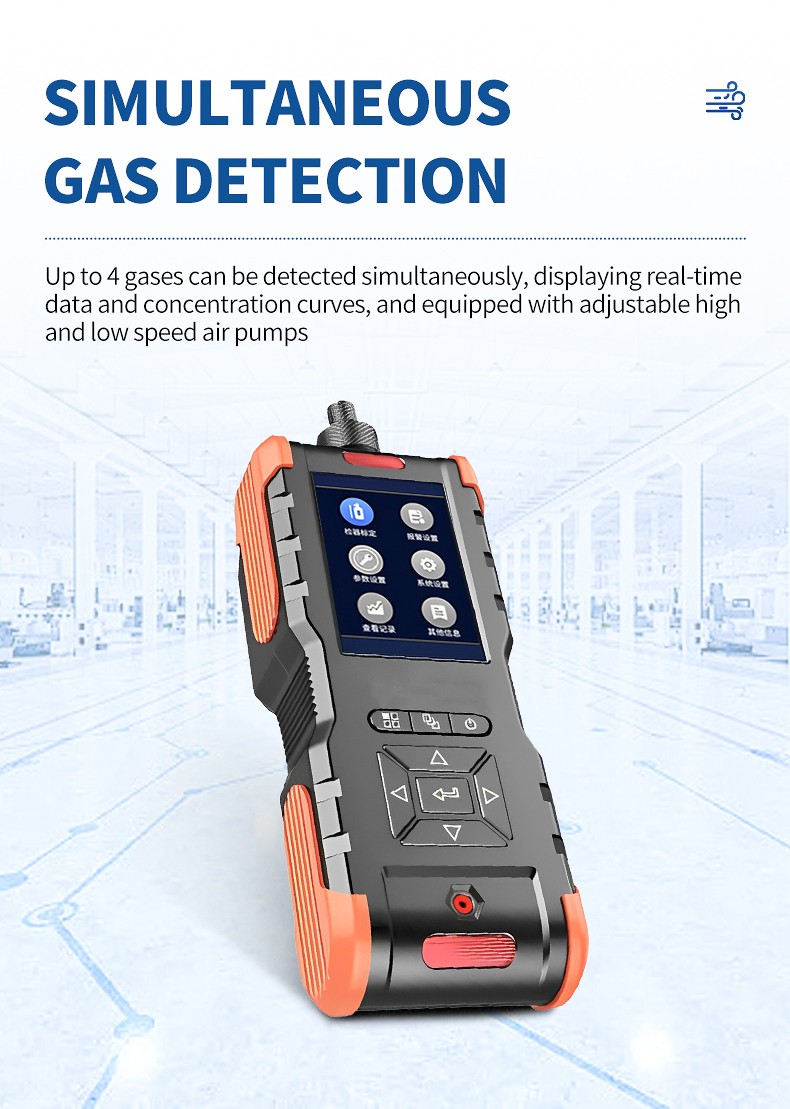

Optional multigas configurations for handheld gas detection

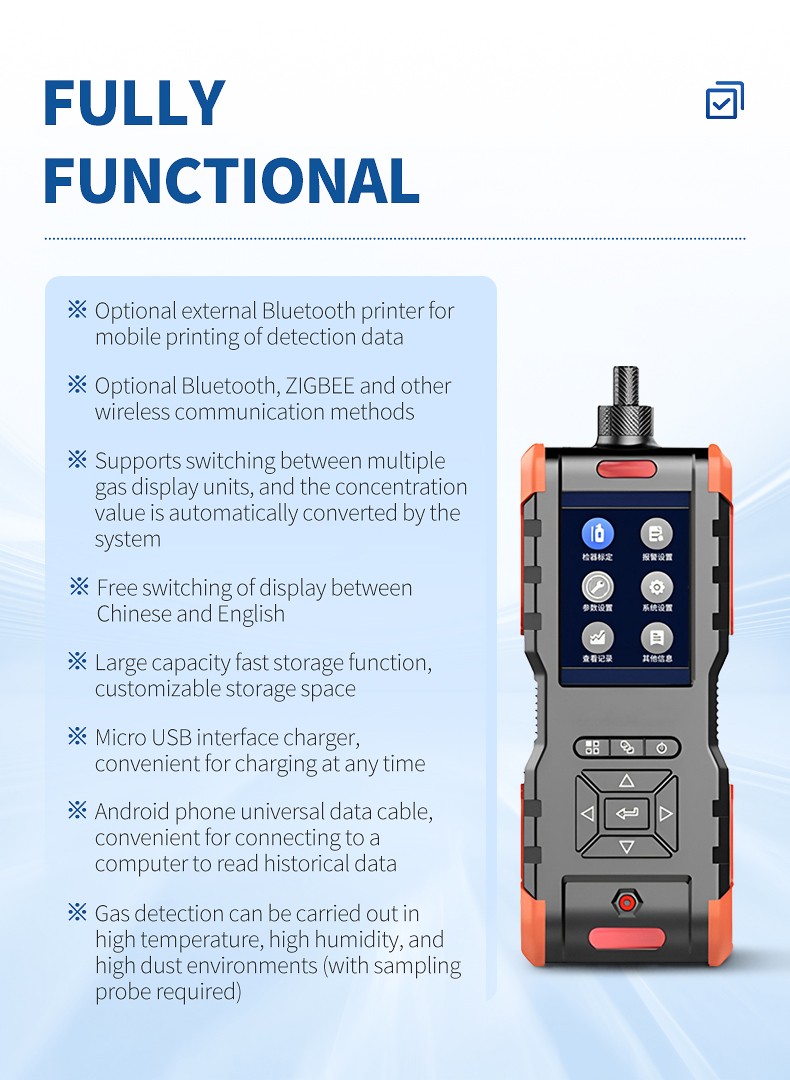

Handheld VOC detector optional recording and communication features

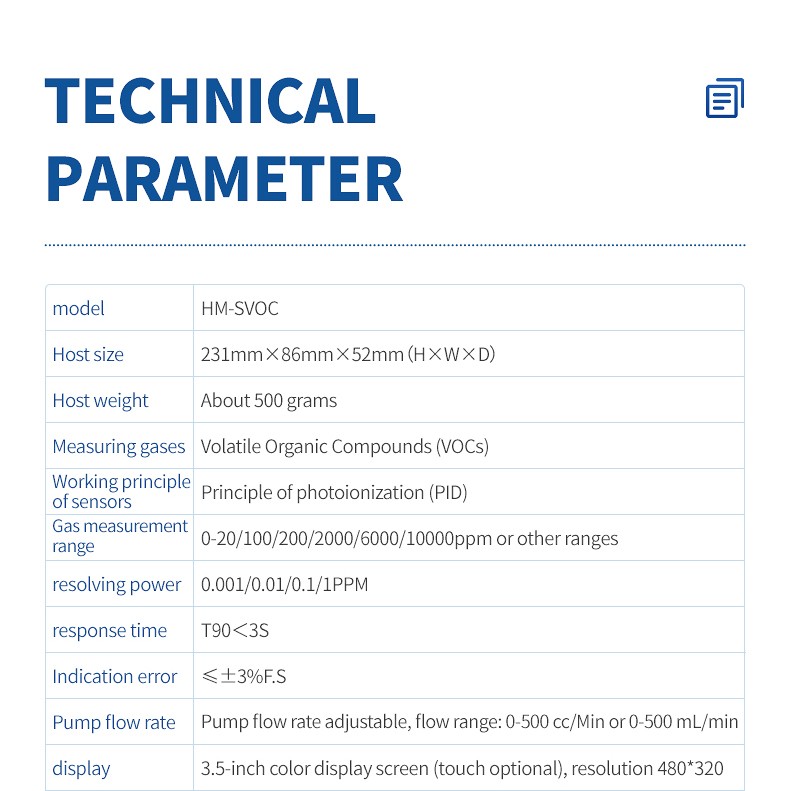

Handheld VOC detector technical specification table

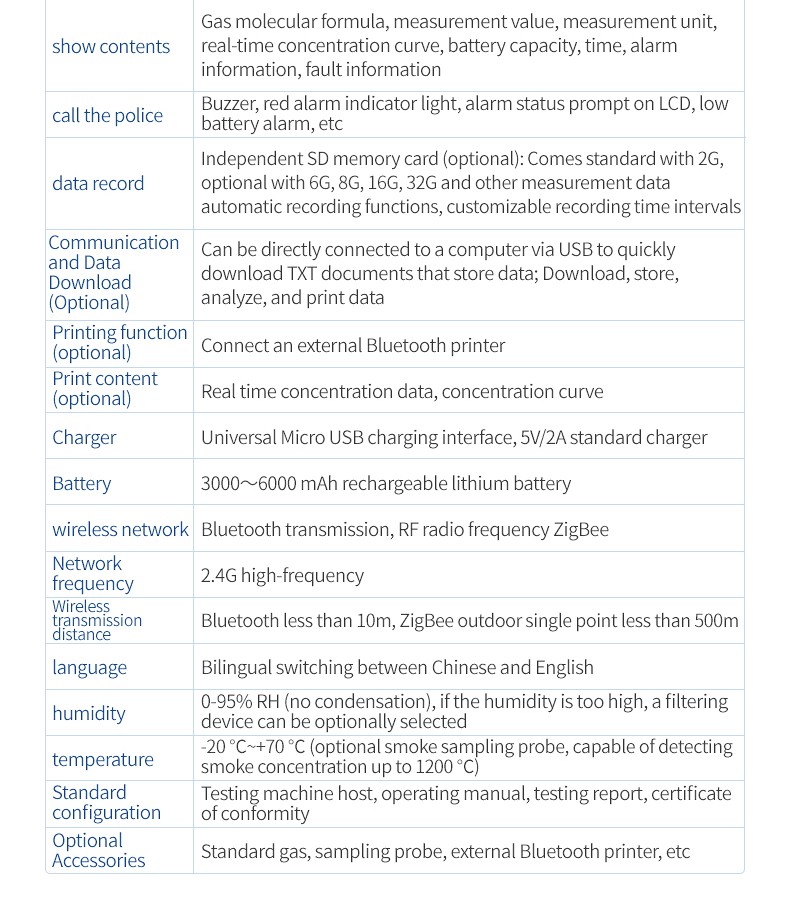

Handheld VOC detector operation and accessory specifications

HM Instruments company and team presentation

HM Instruments laboratory and manufacturing presentation

Product Overview

The HM-SVOC from HM Instruments is a handheld photoionization detector for monitoring volatile organic compounds. A built-in adjustable pump draws the gas sample, and the color display shows concentration and a real-time trend curve.

Key Features

PID sensing supports VOC concentration monitoring with range-dependent resolution.
Adjustable pump flow and a sampling probe support gas collection.
Audible, visual and display alarms show gas and instrument status.
Data logging, wireless communication and an external Bluetooth printer are configuration-dependent options.
Chinese and English display switching and Micro-USB charging are supported.

Applications

Use for VOC checks in workshops, facility boundaries, emission-source investigations and emergency environmental monitoring. Suitable sectors include petroleum, petrochemicals, chemicals, environmental protection, wastewater treatment and research. Select the PID range and sampling accessories for the gas mixture and sampling conditions.

Technical Specifications

Parameter	Specification
Sensor principle	Photoionization detection (PID)
Available VOC ranges	0–20 / 100 / 200 / 2000 / 6000 / 10000 ppm; configuration selected
Available resolution	0.001 / 0.01 / 0.1 / 1 ppm, range dependent
Response time	T90 <3 seconds
Indication error	≤±3% FS
Sampling pump	Adjustable, 0–500 mL/min
Display	3.5-inch color display, 480 × 320; touch optional
Charging	Micro-USB, 5 V / 2 A
Humidity	0–95% RH, noncondensing
Temperature	−20 to 70 °C
Dimensions	231 × 86 × 52 mm (H × W × D)
Approximate weight	500 g

Operation and Support

Select the VOC range and resolution for the intended concentration and arrange appropriate calibration gas and sampling accessories. Keep moisture noncondensing at the instrument; high-temperature, humid or dusty gas sampling requires suitable sampling and filtration accessories. Optional multi-gas sensing, wireless links, touch operation and printing depend on the configuration ordered.
