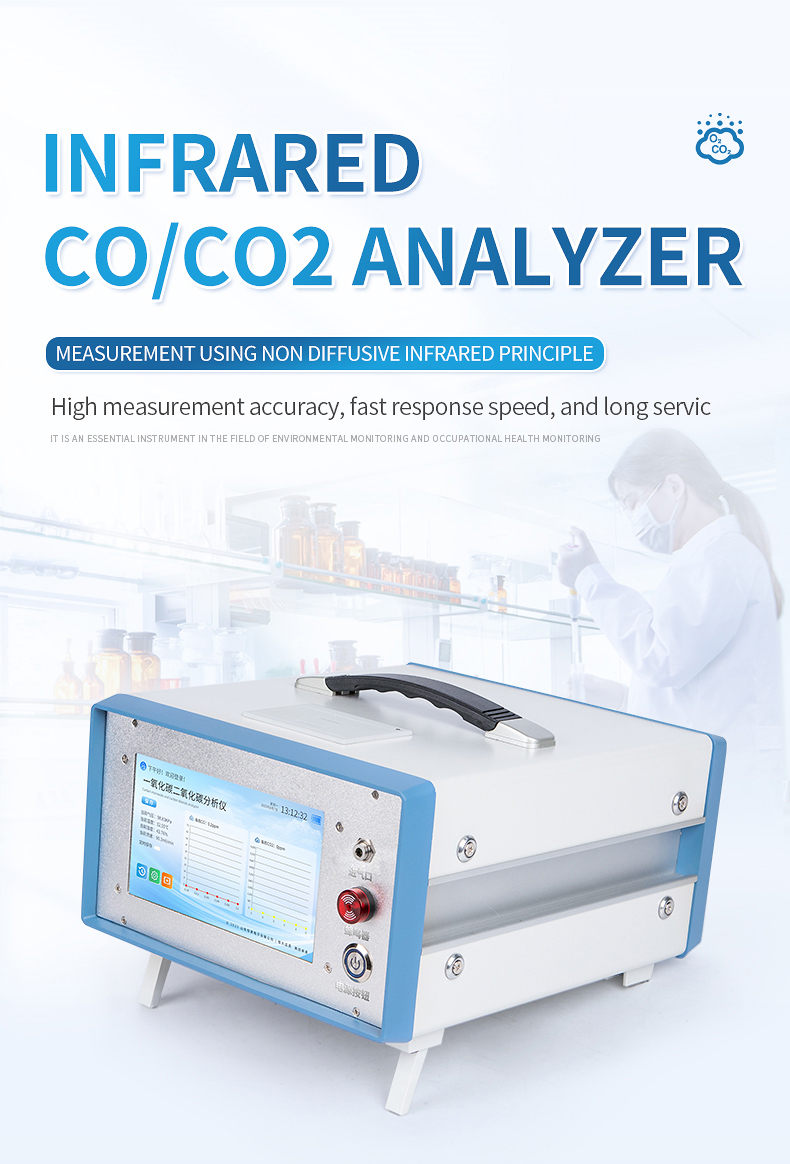

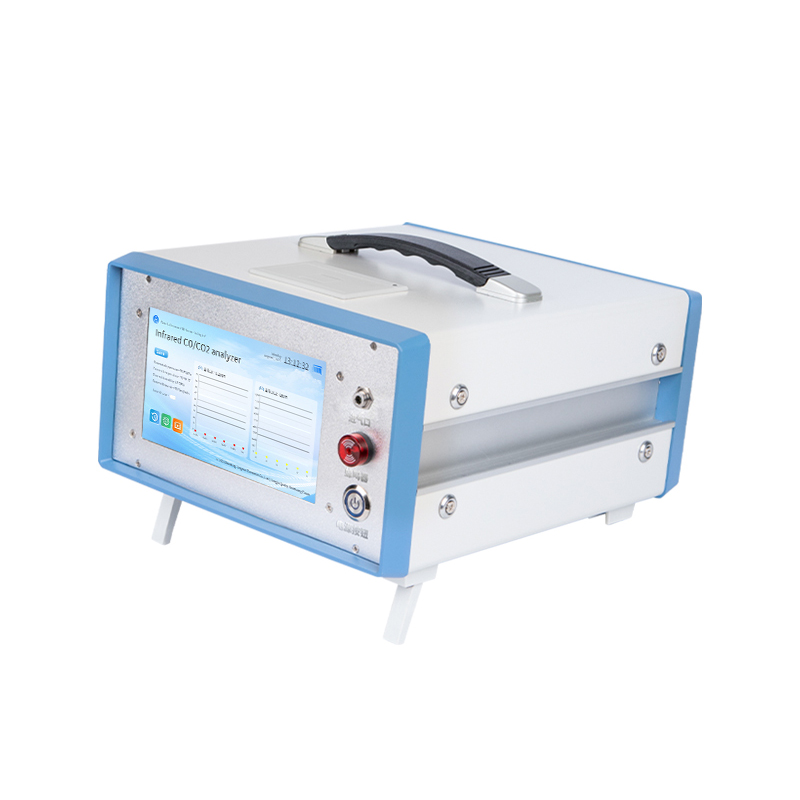

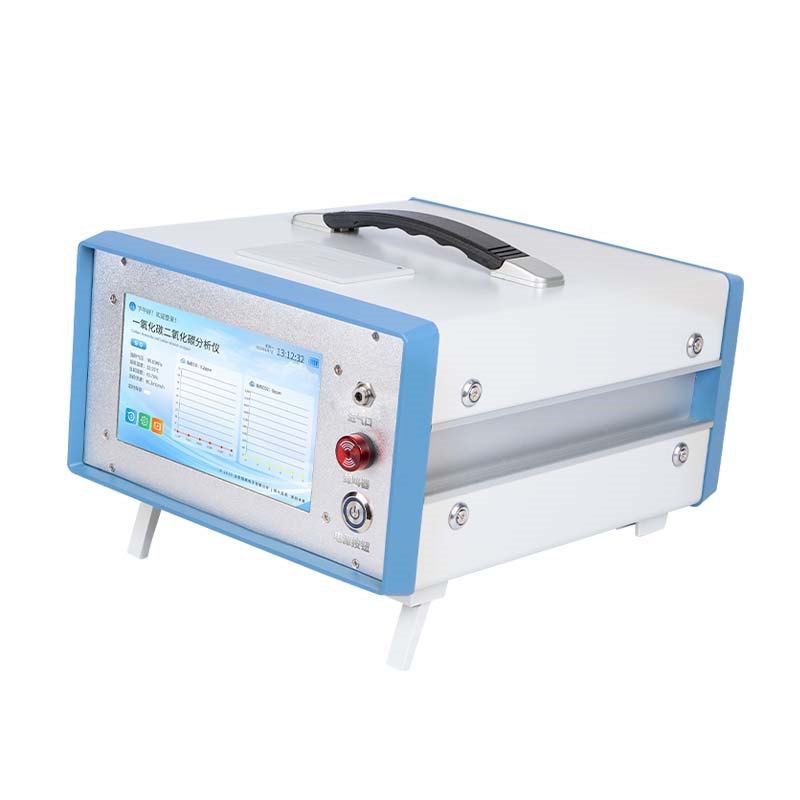

Portable Infrared CO2 Analyzer

Product Overview

The portable infrared CO2 analyzer is a high-precision instrument used by our factory to inspect toxic and harmful substances in the air of public places. The instrument uses the non diffusive infrared principle to measure the concentration of carbon dioxide in the air, and has the advantages of high measurement accuracy, long service life, and low cross interference. It is an essential instrument in the fields of environmental monitoring and occupational health monitoring.

Scope of Application

This instrument is widely used in environmental protection, environmental monitoring, health supervision, occupational health, disease control, and research institutes.

Adopting Standards

JJG635-2011 Infrared Gas Analyzer for Carbon Monoxide and Carbon Dioxide

GB/T18204.2-2014 "Methods for hygiene inspection in public places - Part 2: Chemical pollutants"

GBZ/T 300.37-2017 "Determination of Toxic Substances in the Air of Public Places Part 37: Carbon Monoxide and Carbon Dioxide"

Technical Features

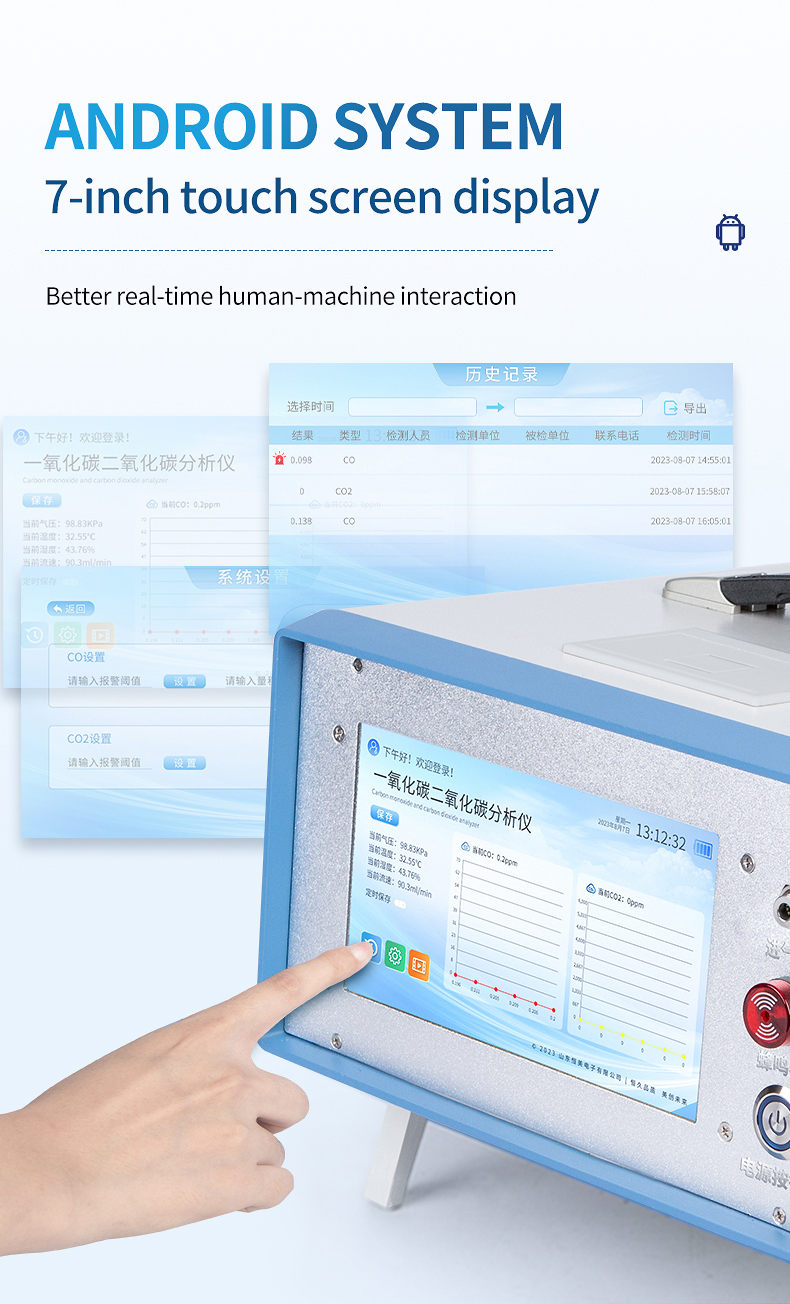

1. Adopting Android system, 7-inch touch screen display, with better real-time human-computer interaction.

2. Large storage space, capable of storing over 100000 pieces of data.

3. Equipped with a thermal printer, the current data can be printed after the detection is completed

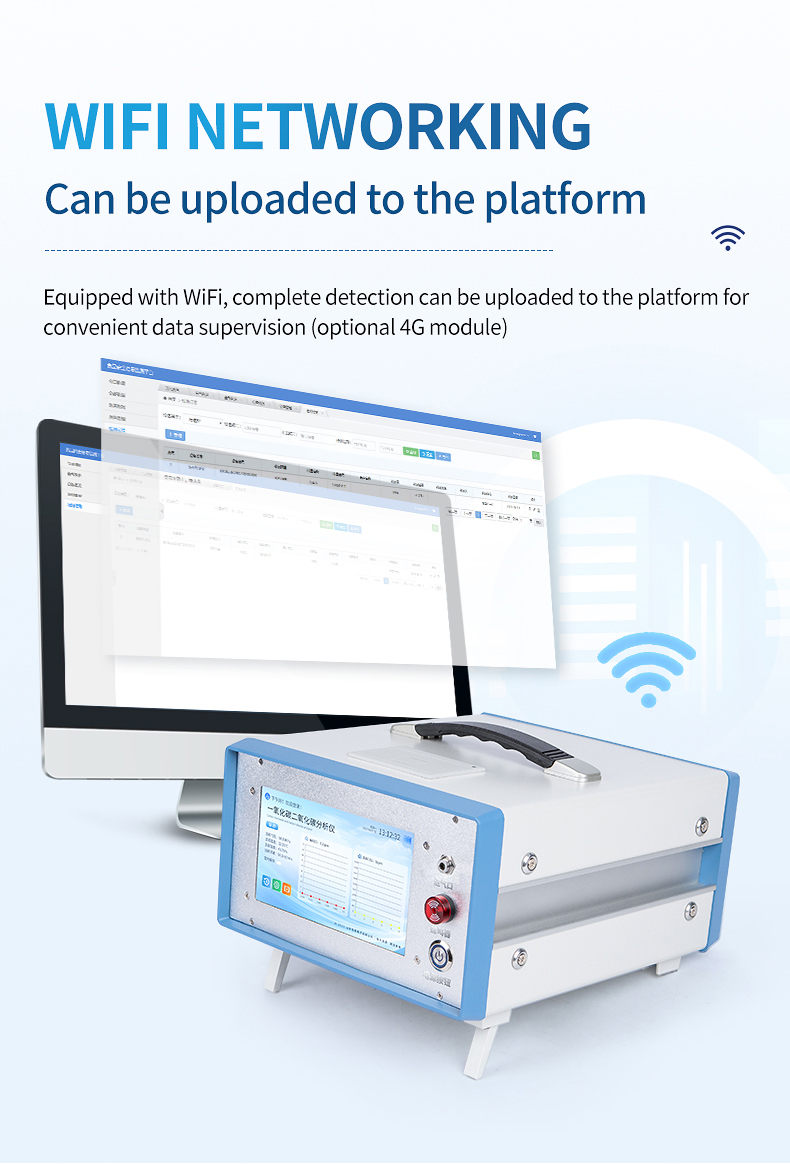

4. Comes with WiFi, completes detection, can be uploaded to the platform for convenient data monitoring (optional 4G module)

5. Equipped with a USB data interface, data can be imported into a USB drive.

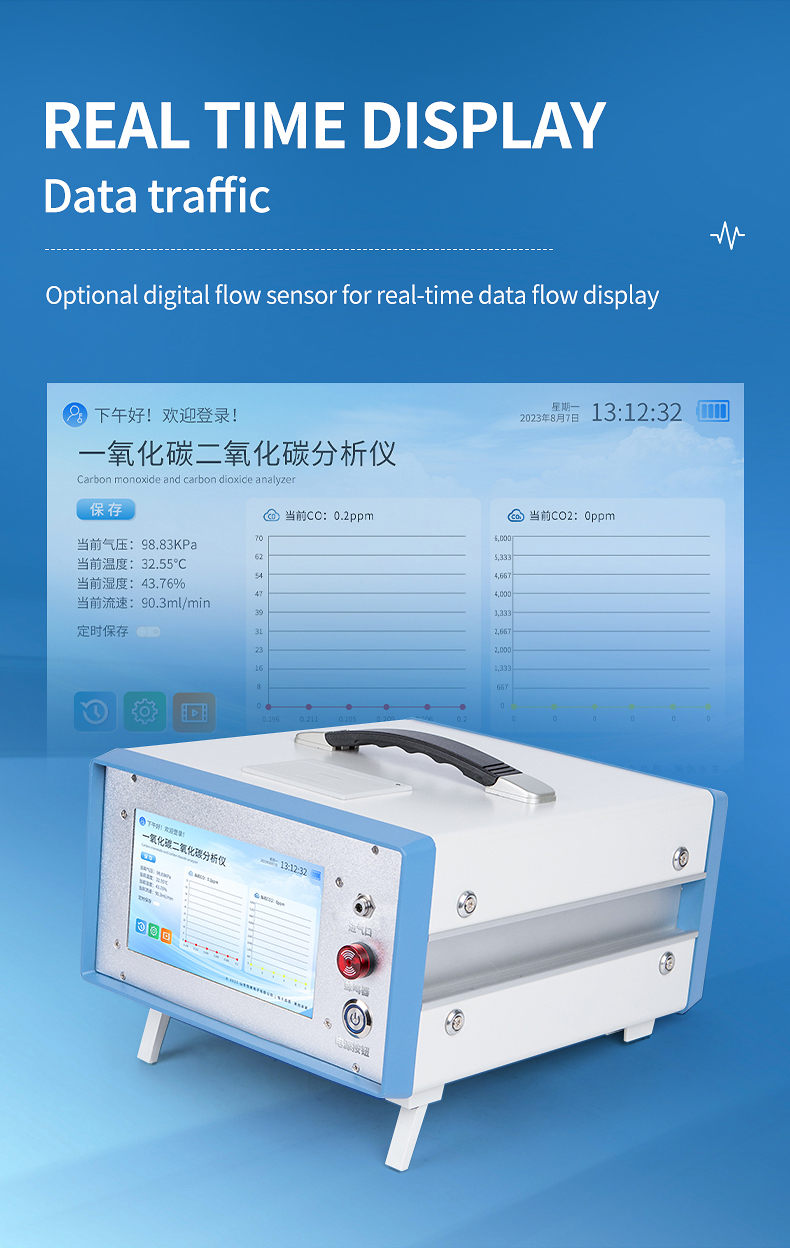

6. Digital flow sensor, real-time data flow display

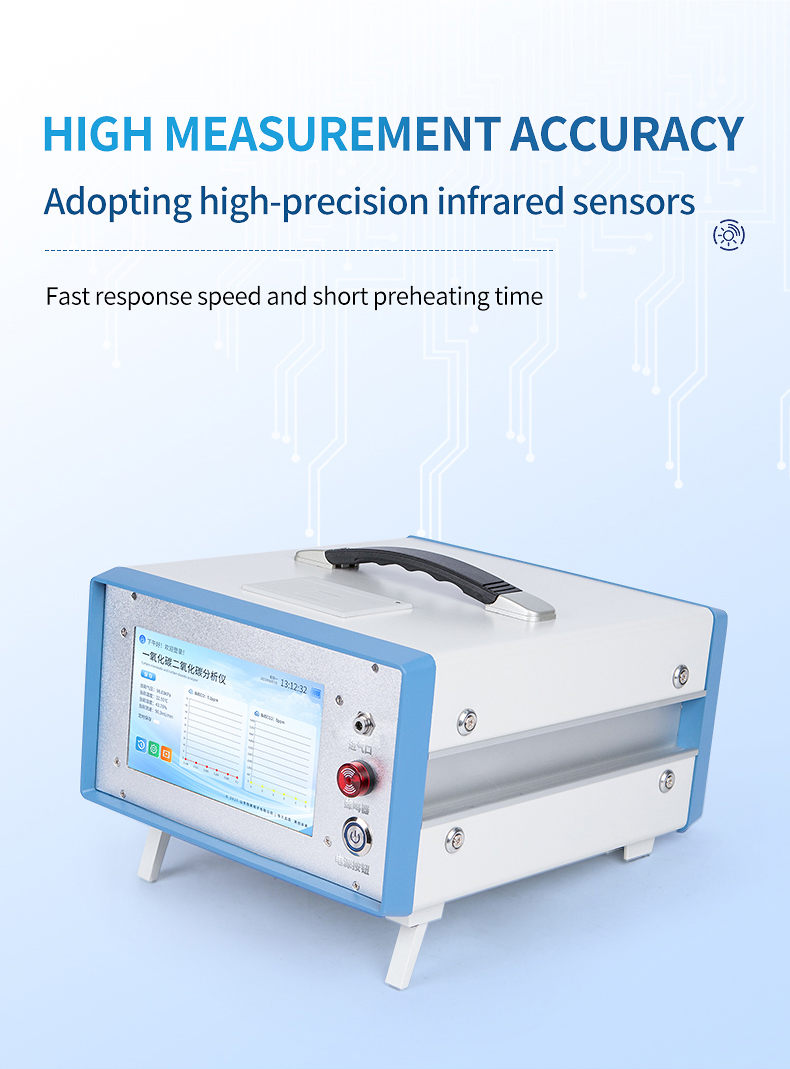

7. Adopting high-precision infrared sensors, with high measurement accuracy, fast response speed, and short preheating time.

8. Support two methods of nitrogen zeroing and catalytic zeroing.

9. Equipped with internal constant temperature heating function, suitable for outdoor low-temperature environment operation.

10. Built in path switching solenoid valve, automatic switching for zero adjustment and measurement.

11. It has temperature and humidity measurement function, built-in temperature and humidity compensation correction algorithm, and eliminates the influence of temperature changes on measurement data.

12. Display of 0.5 hour mean, 8-hour mean, and daily average; Timed storage function.

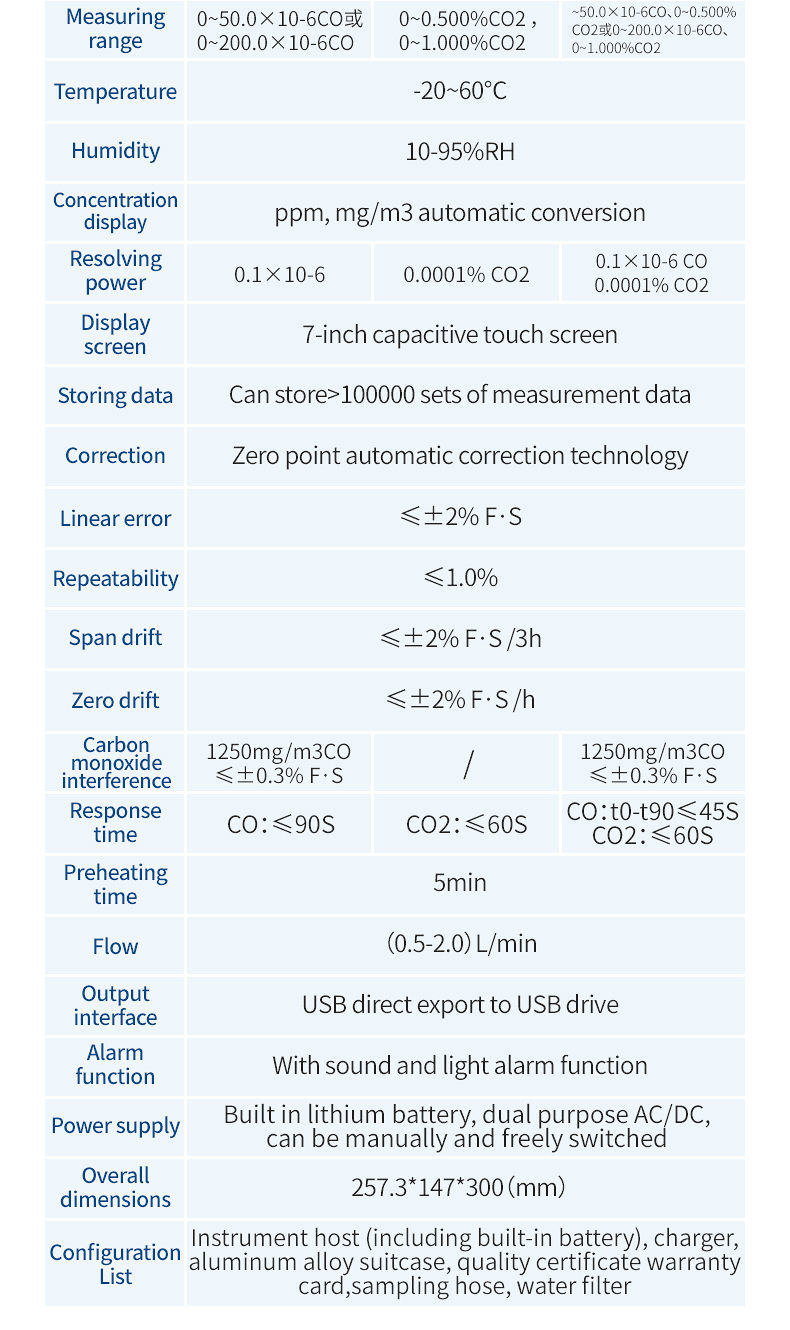

Technical Parameters:

1. Detection principle: Non dispersive infrared gas analysis method/Non dispersive infrared method (NDIR)

2. Gas detection: Carbon dioxide (CO2) in the air

3. Detection method: Built in pump suction

4. Measurement range: Optional 1, 0~0.500% CO2 (0-5000ppm CO2)

Option 2, 0~1.00% CO2 (0-10000 ppm CO2)

5. Temperature range for use: -20 ∽ 60 ℃

6. Humidity: 0-95% RH

7. The concentration display automatically converts into three units: ppm, mg/m3, and%

8. CO2 resolution:; 0.0001% CO2

9. Display screen: 7-inch capacitive touch screen

10. Can store>100000 sets of measurement data

11. Zero point automatic correction technology

12. Linear error: ≤± 2% F · S

13. Repeatability: ≤ 1.0%

14. Span drift: ≤± 2% F · S/3h

15. Zero drift: ≤± 1% F · S/h

16. Response time: CO2: ≤ 60 seconds

17. Preheating time: 5 minutes

18. Flow rate: (0.5-2.0) L/min

19. Output interface: USB direct export to USB flash drive

20. Equipped with sound and light alarm functions

21. Power supply: Equipped with a built-in lithium battery, it can be used for both AC and DC, and can be manually switched freely

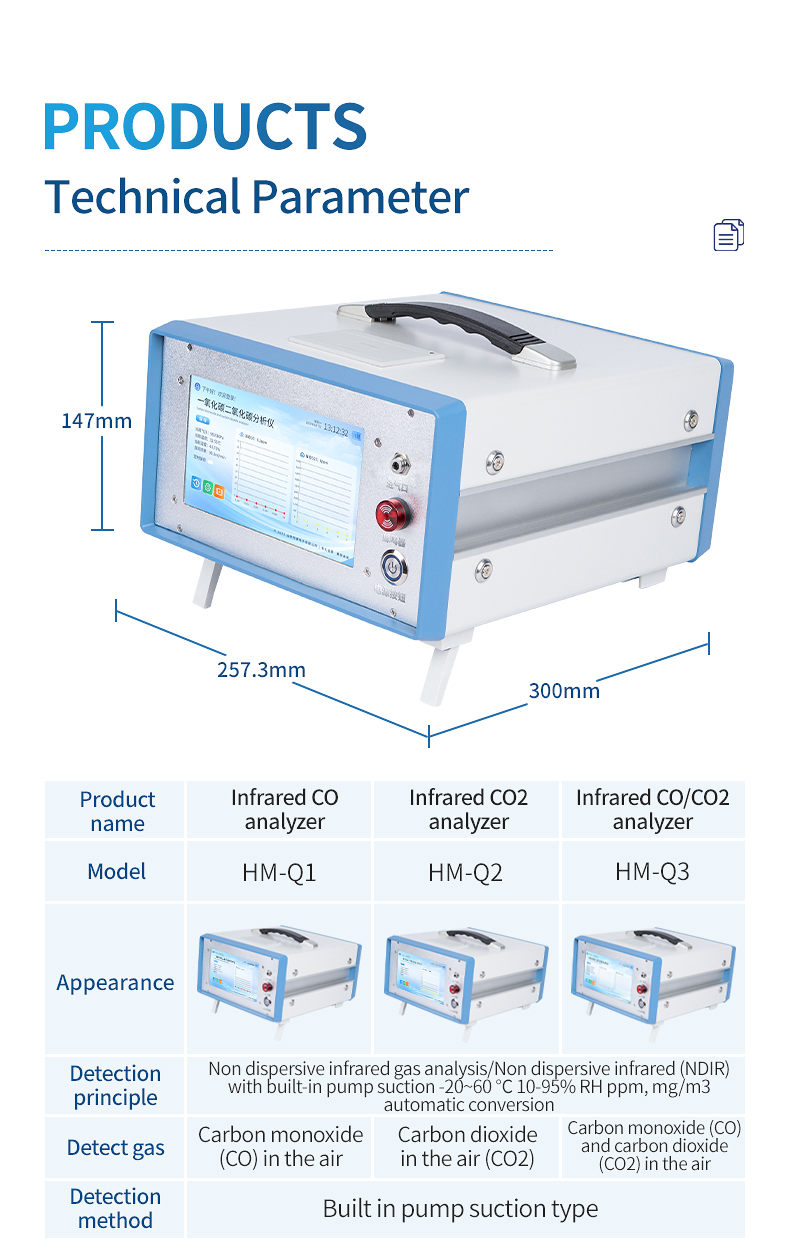

22. Dimensions: 257.3 * 147 * 300 (mm)

Configuration List:

Number, Name, Quantity

1 instrument host (including built-in battery) 1 unit

2 chargers 1

3 aluminum alloy suitcases, 1 piece

1 set of 4 certificate warranty cards

5 sampling hoses, 1 piece

6 water filters, 1 piece
