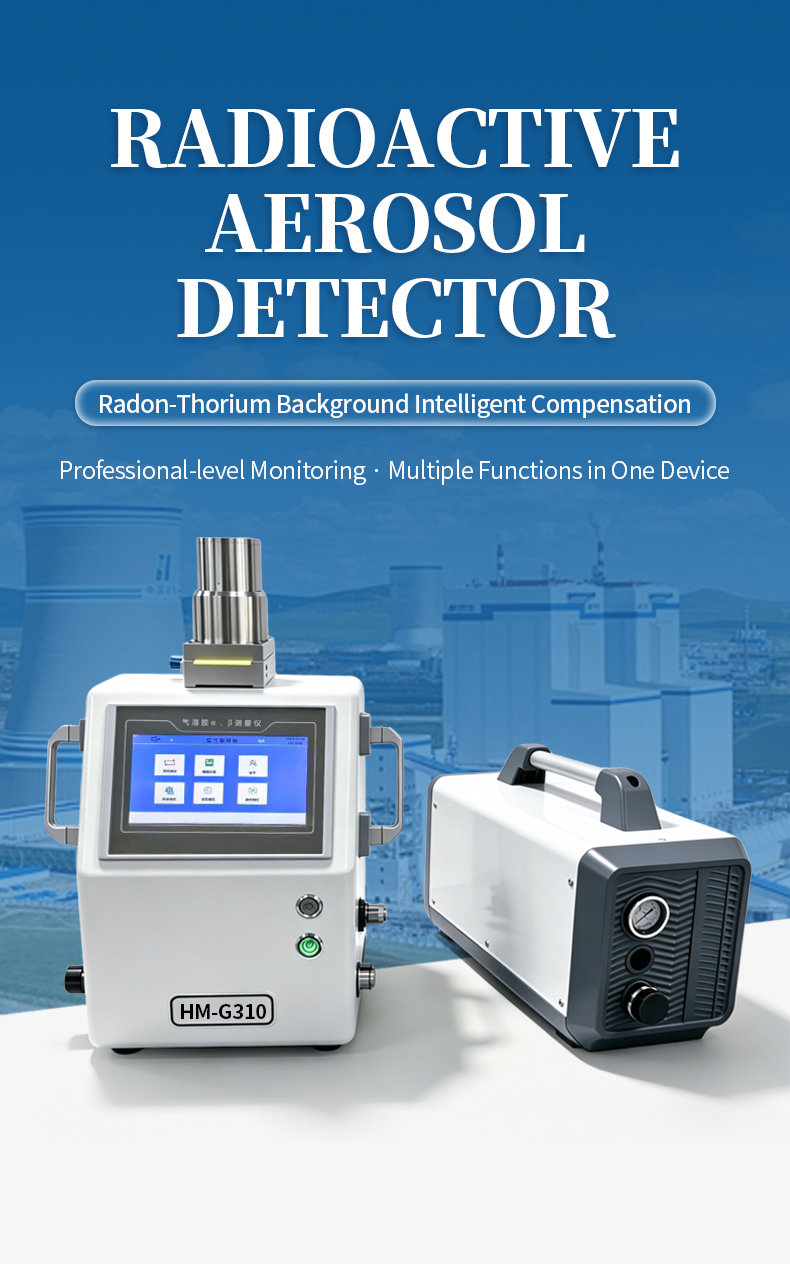

1. Product Overview
The HM-G310 is a deploy-and-measure radioactive aerosol detector built for fast, reliable air contamination monitoring at nuclear power plants, fuel processing facilities, and emergency response sites. Simply install the snap-in filter cartridge, power on, and begin continuous sampling — the unit handles radon compensation, spectral analysis, and alarm management automatically so operators can focus on safety decisions rather than instrument setup.
Whether mounted permanently at a stack exhaust point or carried to a suspected contamination zone, the HM-G310 delivers real-time alpha, beta, and I-131 concentration readings on a clear 7-inch touchscreen, with automatic tri-color alarms that instantly alert staff when action levels are exceeded.
2. Key Features & Operational Benefits

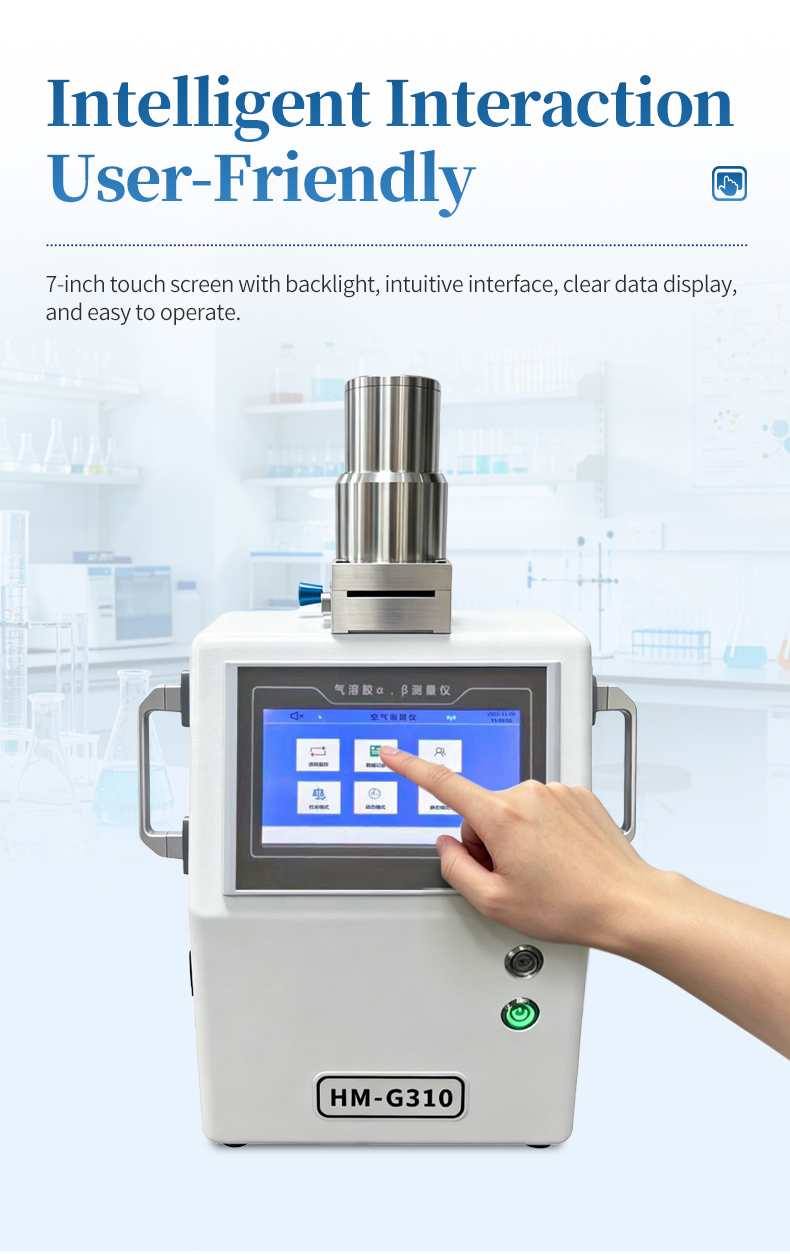

7-inch Touchscreen Display: View live readings, trends, and alarm status at a glance without scrolling through menus.

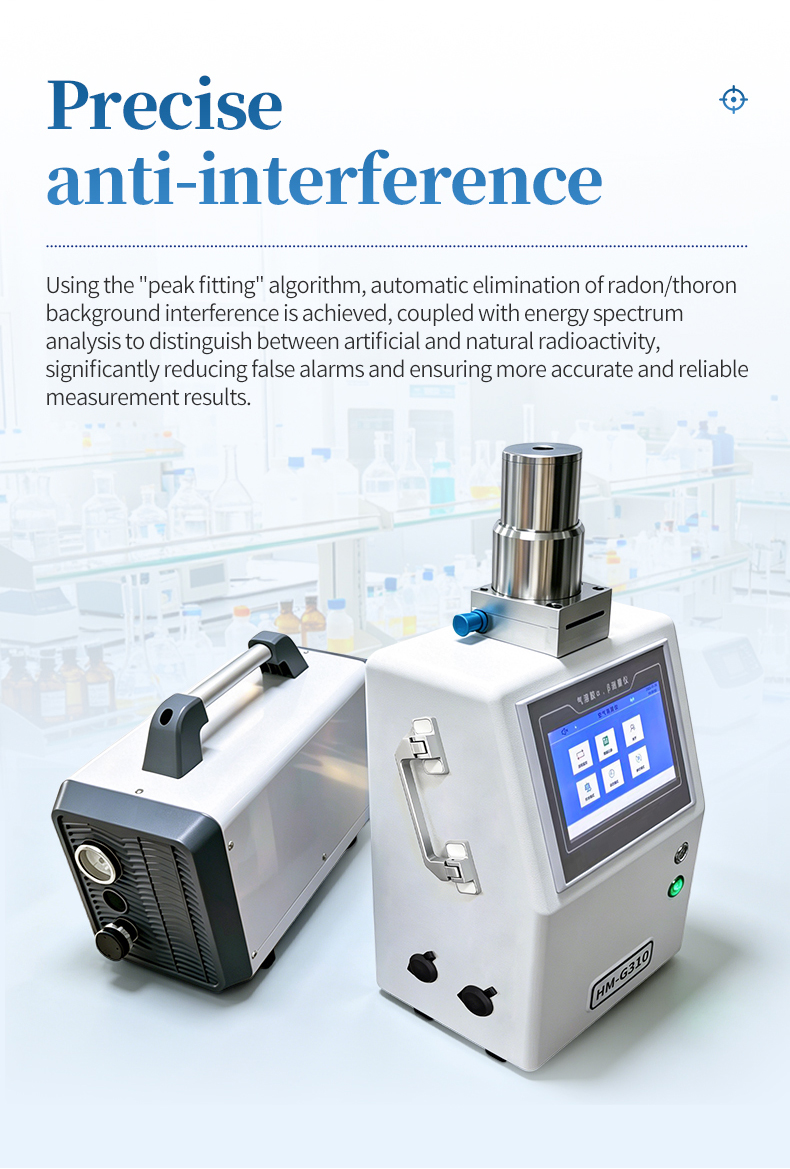

Automatic Radon/Thoron Compensation: Built-in peak-fitting algorithm separates natural radon signals from real contamination automatically. Dramatically reduces false alarms and unnecessary investigations.

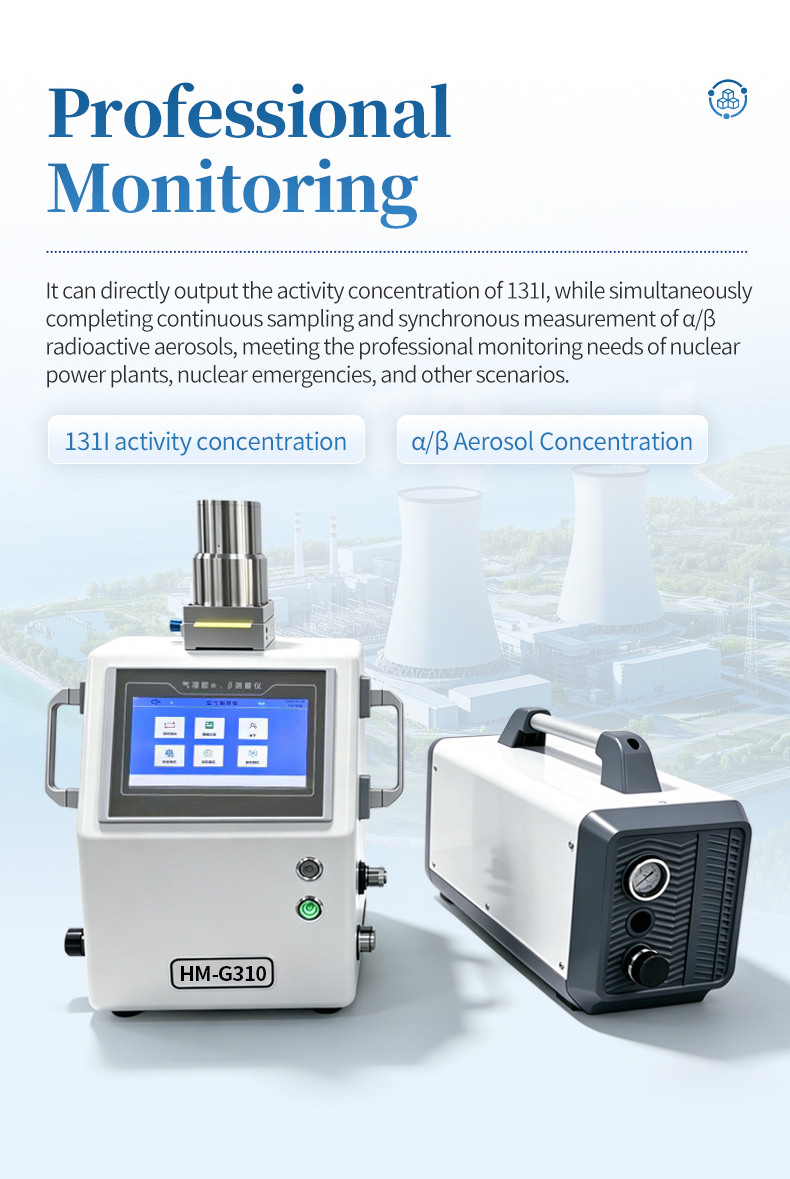

Dedicated I-131 Channel: Get immediate iodine-131 activity readings without sending samples to a remote lab. Accelerates thyroid-protection decision-making during incidents.
Smart Artificial vs. Natural Discrimination: The instrument automatically flags man-made contamination, saving hours of manual spectral review.
Continuous Unattended Operation (12+ Hours): Deploy and walk away. The HM-G310 monitors around the clock with no operator intervention required.

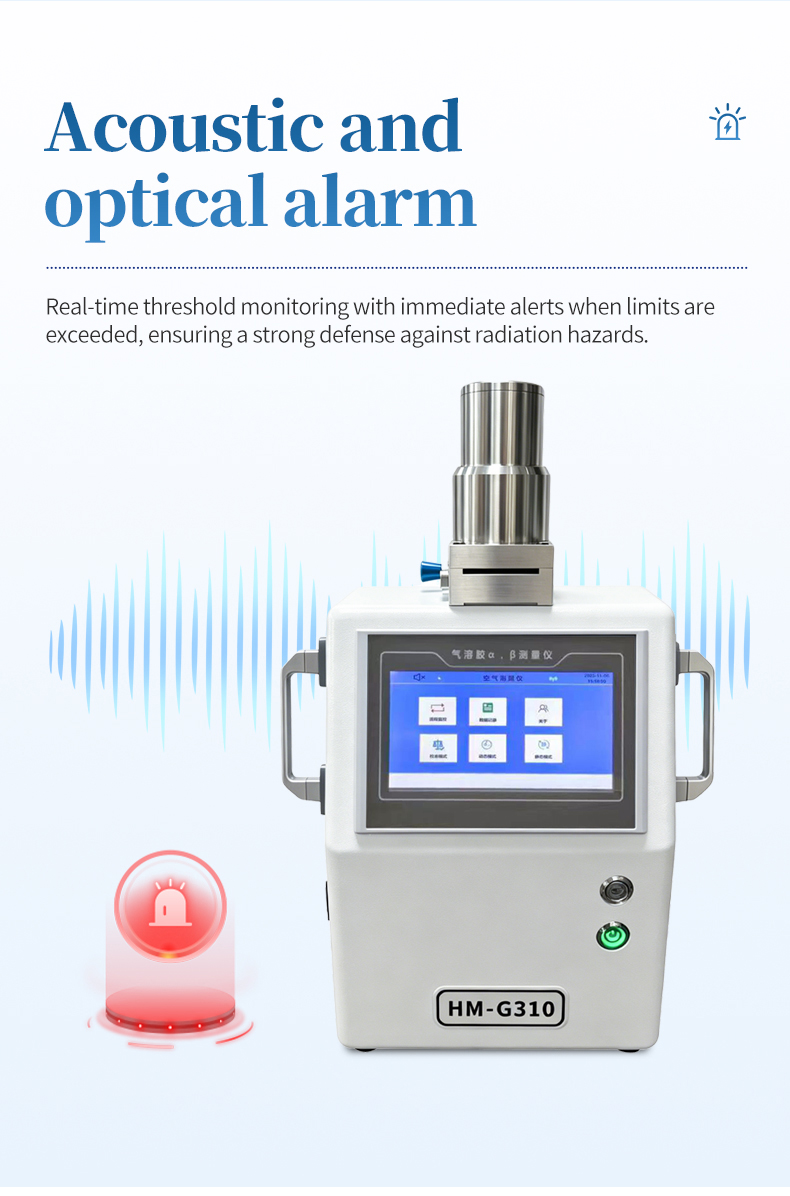

Instant Tri-Color Alarm: Green/Yellow/Red visual indicators plus audible alarm ensure no threshold breach goes unnoticed, even in noisy plant environments.

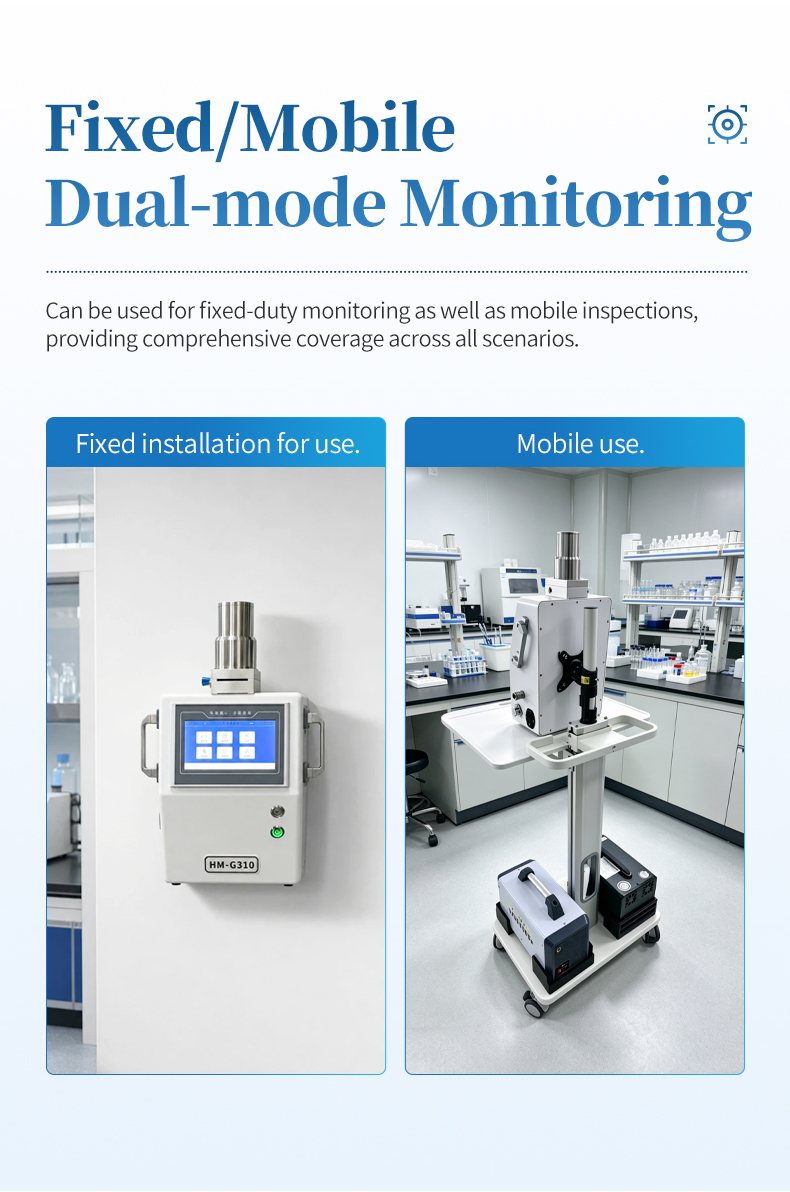

Fixed or Mobile Deployment: Bolt it to a wall for permanent stack monitoring or carry it to a new location in minutes for rapid contamination surveys. One instrument covers both use cases.
High Flow Rate (up to 50 L/min): Faster air throughput means faster results and shorter response times compared to low-flow samplers.
Tool-Free 50 mm Snap-In Filter: Swap filters in seconds — minimizes downtime between measurement cycles.

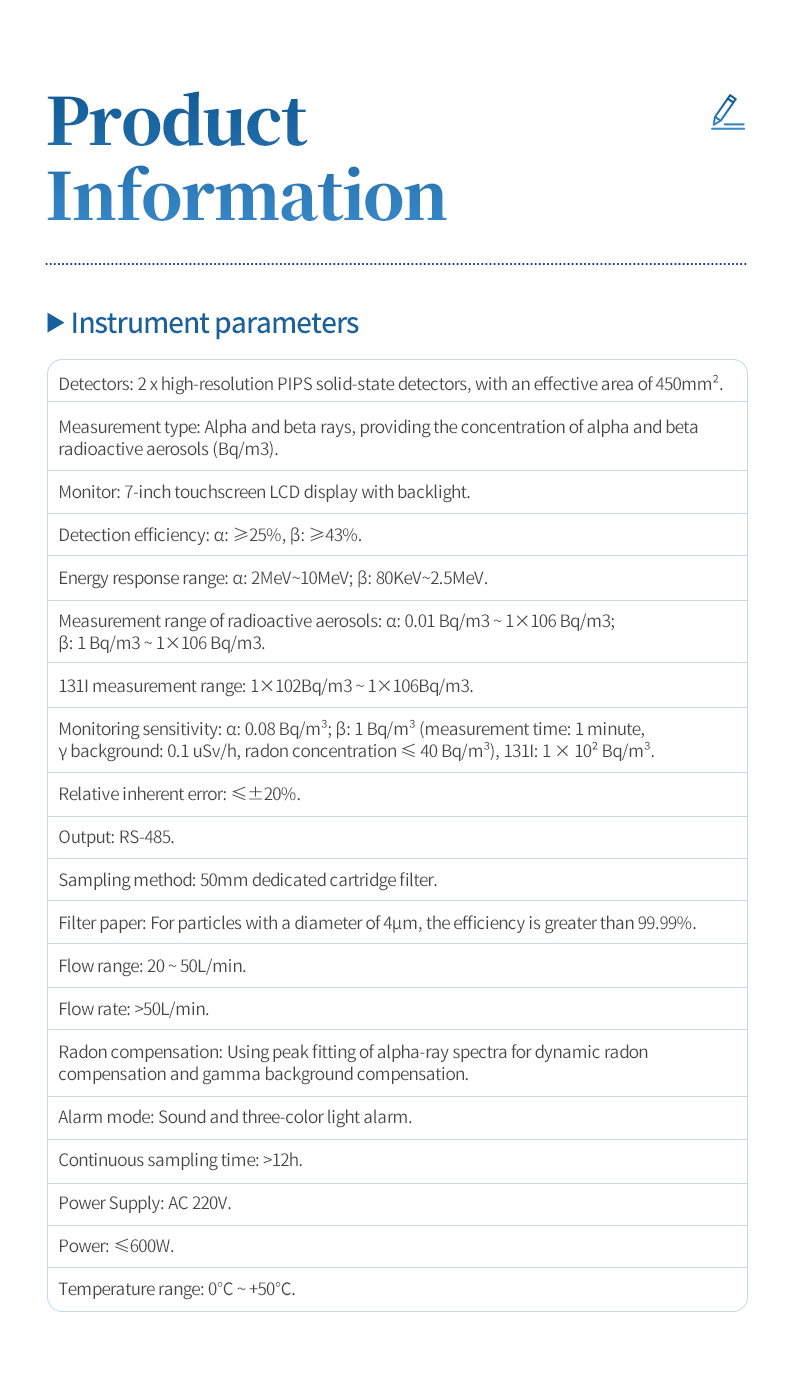

3. Technical Specifications
| Parameter | Specification |
|---|
| Detector | 2 × High-resolution PIPS solid-state detectors; 450 mm² effective area each |
| Measurement Type | Alpha (α) and Beta (β) radiation; output in Bq/m³ |
| Display | 7-inch capacitive touchscreen LCD with backlight |
| Detection Efficiency | α: ≥ 25%; β: ≥ 43% |
| Energy Response Range | α: 2 MeV – 10 MeV; β: 80 keV – 2.5 MeV |
| Aerosol Measurement Range | α: 0.01 Bq/m³ – 1 × 10⁶ Bq/m³; β: 1 Bq/m³ – 1 × 10⁶ Bq/m³ |
| I-131 Measurement Range | 1 × 10² Bq/m³ – 1 × 10⁶ Bq/m³ |
| Minimum Detectable Concentration | α: 0.08 Bq/m³; β: 1 Bq/m³ (1-min measurement, γ background 0.1 μSv/h, Rn ≤ 40 Bq/m³); I-131: 1 × 10² Bq/m³ |
| Relative Intrinsic Error | ≤ ±20% |
| Communication Interface | RS-485 |
| Sampling Method | 50 mm snap-in cartridge filter |
| Filter Media | High-efficiency particulate filter; > 99.99% for particles ≥ 4 μm |
| Flow Rate Range | 20 – 50 L/min |
| Maximum Flow Rate | > 50 L/min |
| Radon Compensation | Auto peak-fitting alpha spectral compensation + gamma background compensation |
| Alarm System | Audible + tri-color (green/yellow/red) visual indicator |
| Continuous Sampling Duration | > 12 hours unattended |
| Power Supply | AC 220 V |
| Power Consumption | ≤ 600 W |
| Operating Temperature | 0°C to +50°C |
