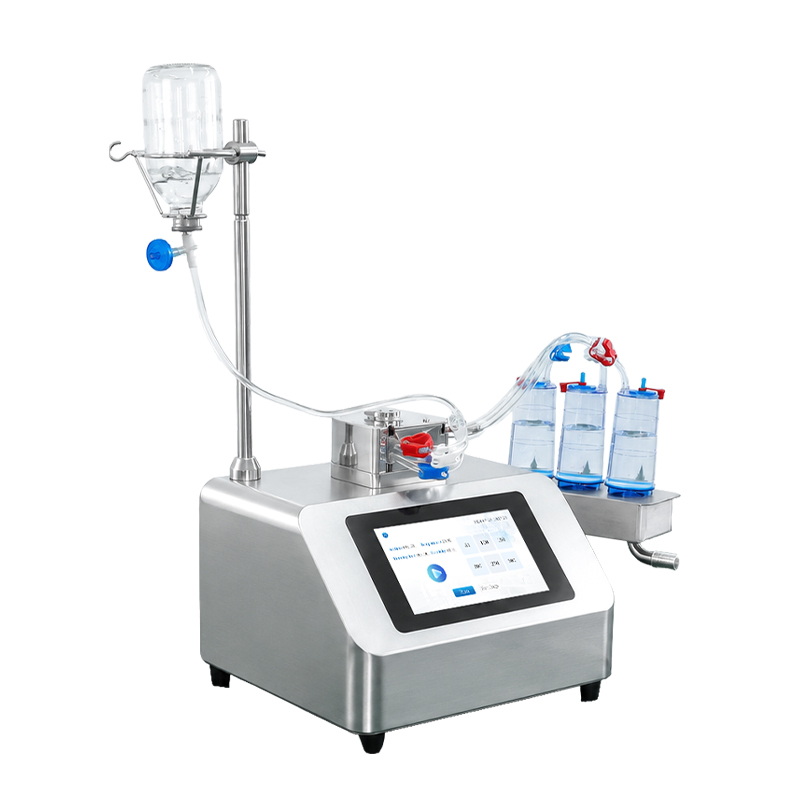

Sterility Testing Pump for Pharmaceutical Quality Control

Product Introduction

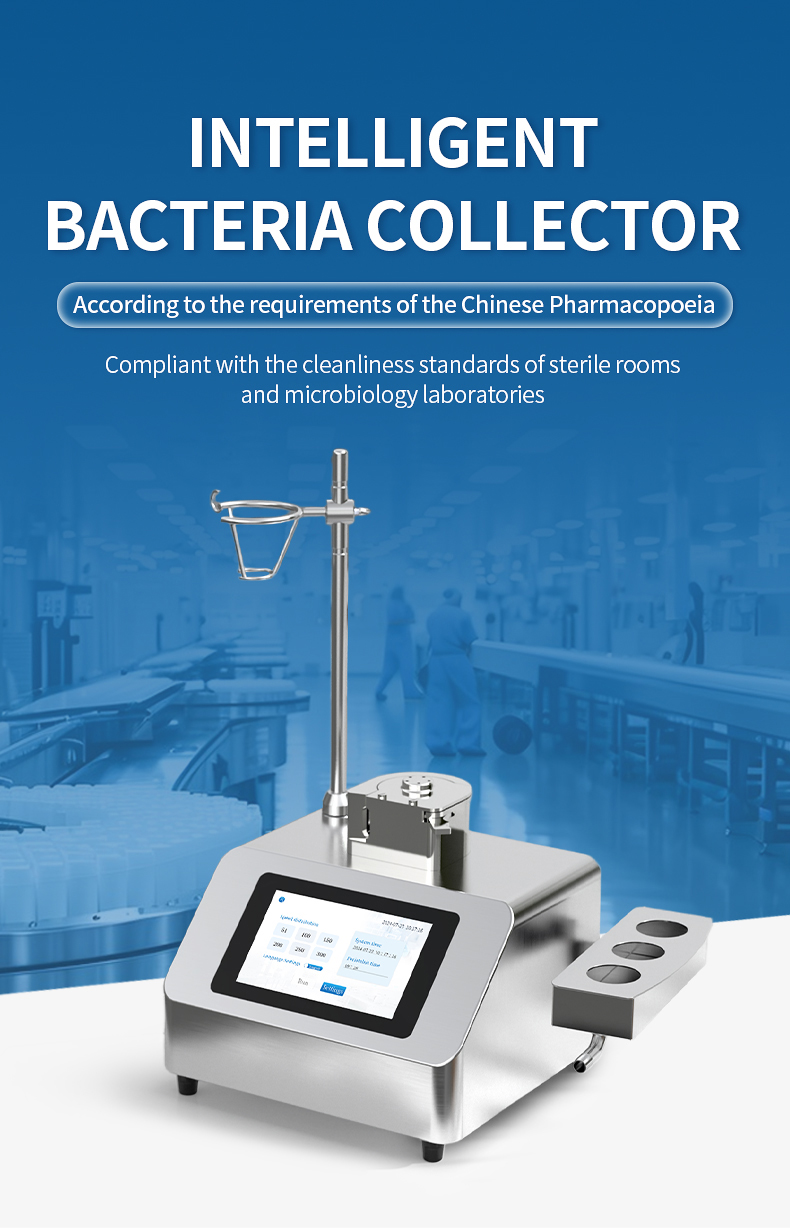

Pharmaceutical quality control laboratories face persistent challenges in sterility testing: maintaining aseptic conditions throughout the membrane filtration process, achieving reproducible results across operators and shifts, and meeting the stringent documentation requirements of GMP-regulated environments. The HM-JJ1 sterility testing pump from HM Instruments addresses these industry pain points with a design philosophy centered on operational simplicity and result reliability.

The membrane filtration method remains the pharmacopeial gold standard for sterility testing of filterable pharmaceutical products. However, the quality of the filtration pump directly influences test outcomes. Inconsistent flow rates can compromise filter integrity, while equipment that is difficult to clean between test runs introduces cross-contamination risk. The HM-JJ1 provides a controlled peristaltic pumping action across a speed range of 1 to 300 rpm, with 6 preset speed settings that ensure method consistency regardless of which technician is operating the instrument. The L304 stainless steel integrated shell eliminates dead corners where microorganisms could harbor, and the seamless construction supports the rigorous cleaning and disinfection protocols that GMP compliance demands. For laboratories performing routine sterility and microbial limit testing on a daily basis, the HM-JJ1 delivers the operational reliability needed to maintain testing schedules without interruption.

Applications

• Injectable drug sterility testing — Aqueous and non-aqueous pharmaceutical solutions processed through membrane filtration per USP 71 and ChP requirements

• Biological product testing — Vaccines, blood products, and cell therapy preparations requiring gentle, low-shear filtration

• Medical device rinse testing — Extraction and filtration of rinse fluids from implantable and non-implantable devices per ISO 11737

• Microbial limit testing — Enumeration of aerobic microorganisms, yeast, and mold in raw materials and finished products per GB 4789 and USP 61

• Traditional Chinese medicine testing — Filtration of TCM injections and herbal preparation extracts for sterility and microbial quality

• Food and beverage quality assurance — Membrane filtration-based microbiological analysis of dairy products, beverages, and bottled water

• Pharmaceutical water system monitoring — Purified water and water for injection testing using membrane filtration methods

Key Features & Advantages

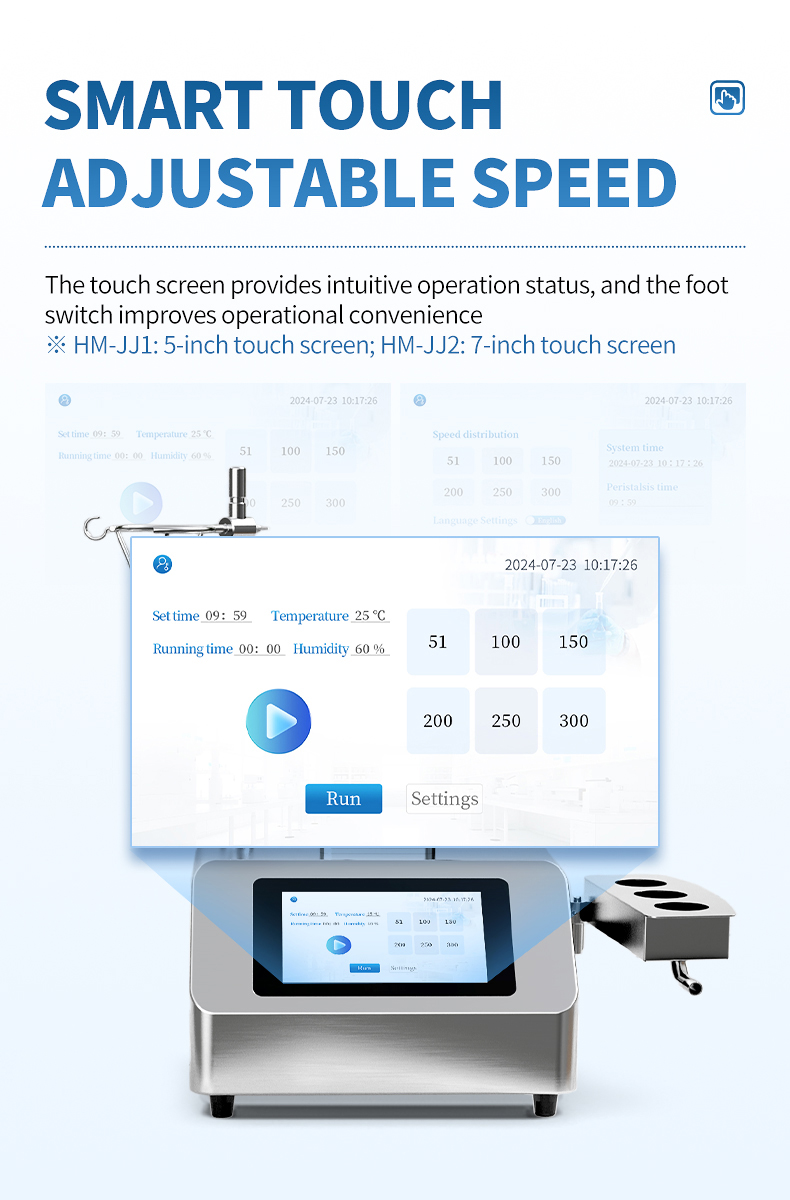

1. 5-inch capacitive touchscreen provides intuitive speed selection with real-time rpm display, reducing operator training time.

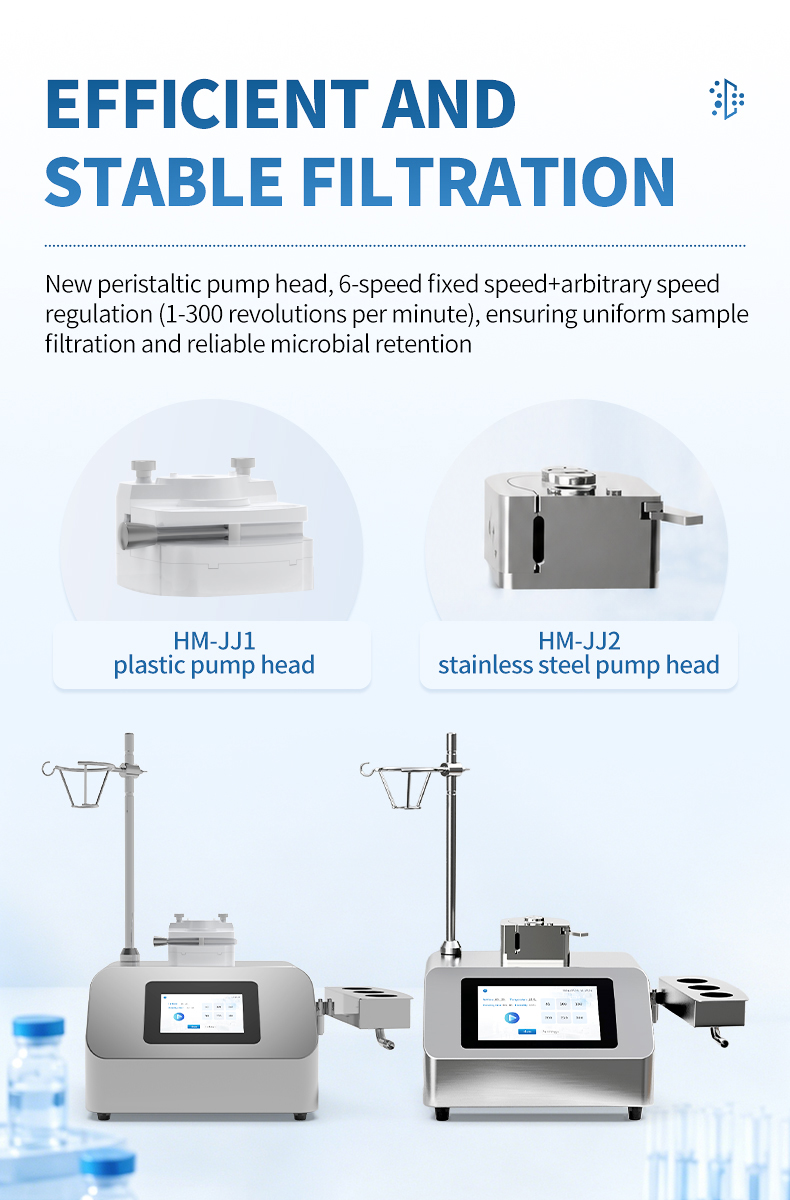

2. Plastic peristaltic pump head delivers consistent flow for standard aqueous sample types with low maintenance requirements.

3. 1 to 300 rpm adjustable speed range accommodates filtration requirements from delicate biological samples to high-volume liquid preparations.

4. 6 preset speed settings enable standardized testing protocols, ensuring inter-operator reproducibility across shifts and laboratories.

5. Continuous variable adjustment allows fine-tuning of filtration rate for samples with unusual viscosity or particulate content.

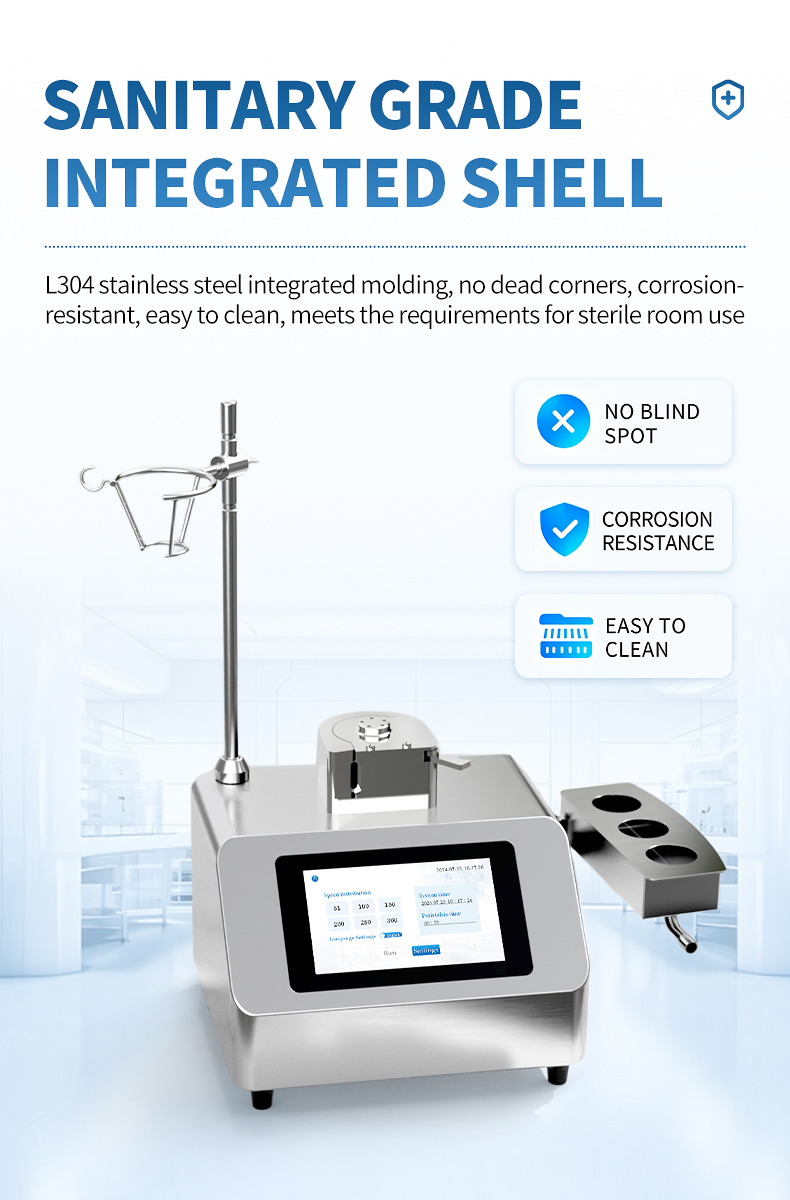

6. L304 stainless steel integrated shell provides a seamless, non-porous surface that withstands repeated disinfection and resists corrosion.

7. 340mm suspension height is designed to accommodate standard membrane filtration assemblies without additional supports.

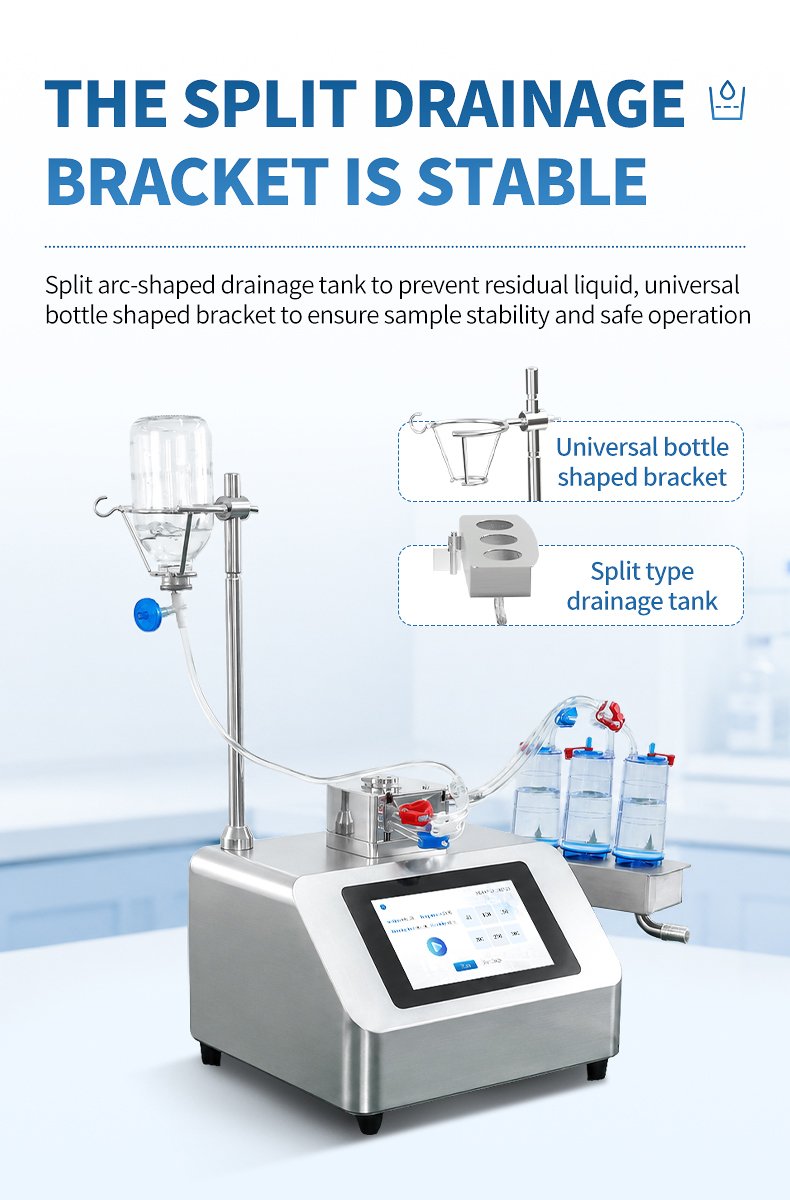

8. Split drainage bracket with universal bottle holder simplifies waste fluid collection and enables rapid setup changeover between tests.

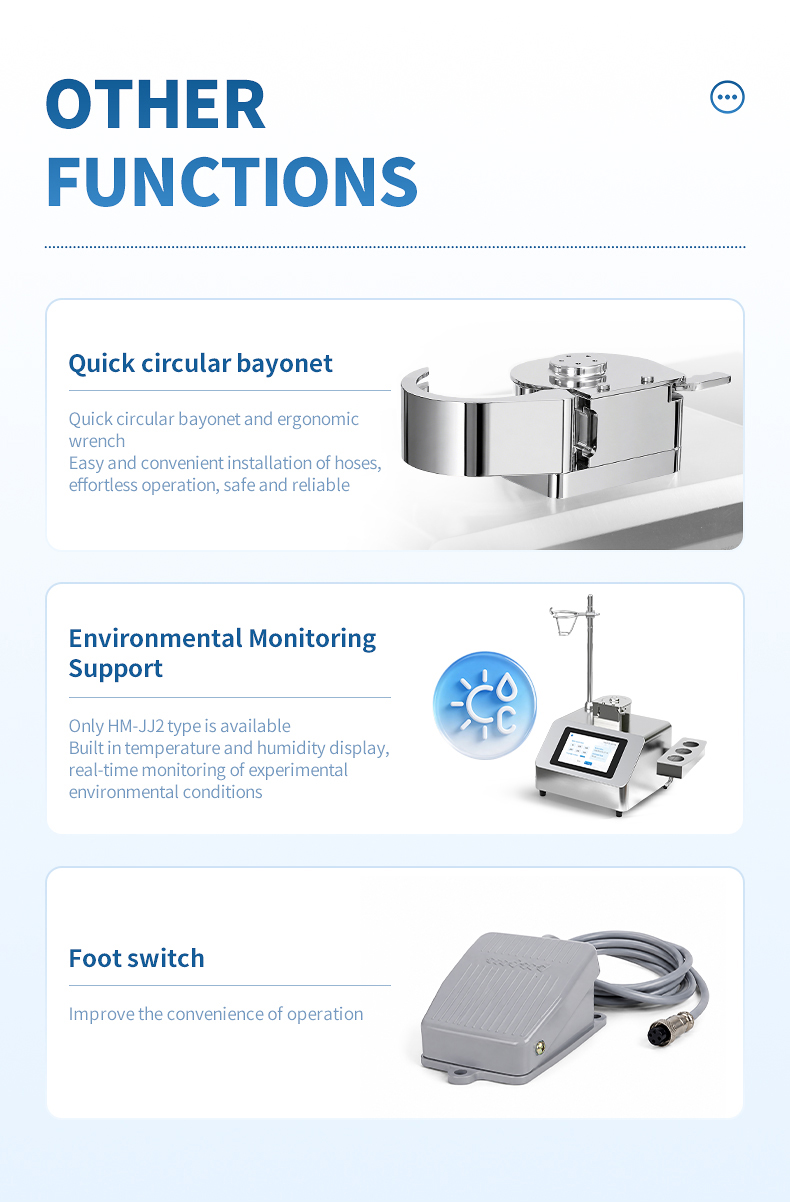

9. Foot switch compatibility enables hands-free operation during critical aseptic steps, reducing contamination risk.

10. Quick circular bayonet mechanism allows rapid filter assembly mounting and dismounting, improving testing throughput.

11. Compact 420 x 536 x 267 mm footprint integrates into standard laminar flow cabinets and biological safety cabinets.

12. 7.30 kg lightweight design facilitates repositioning and installation in laboratories with limited bench space.

13. ISO 9001 certified quality management ensures consistent instrument performance and traceable manufacturing processes.

14. Nationwide 280-outlet service network provides 24-hour response for minimal testing downtime.

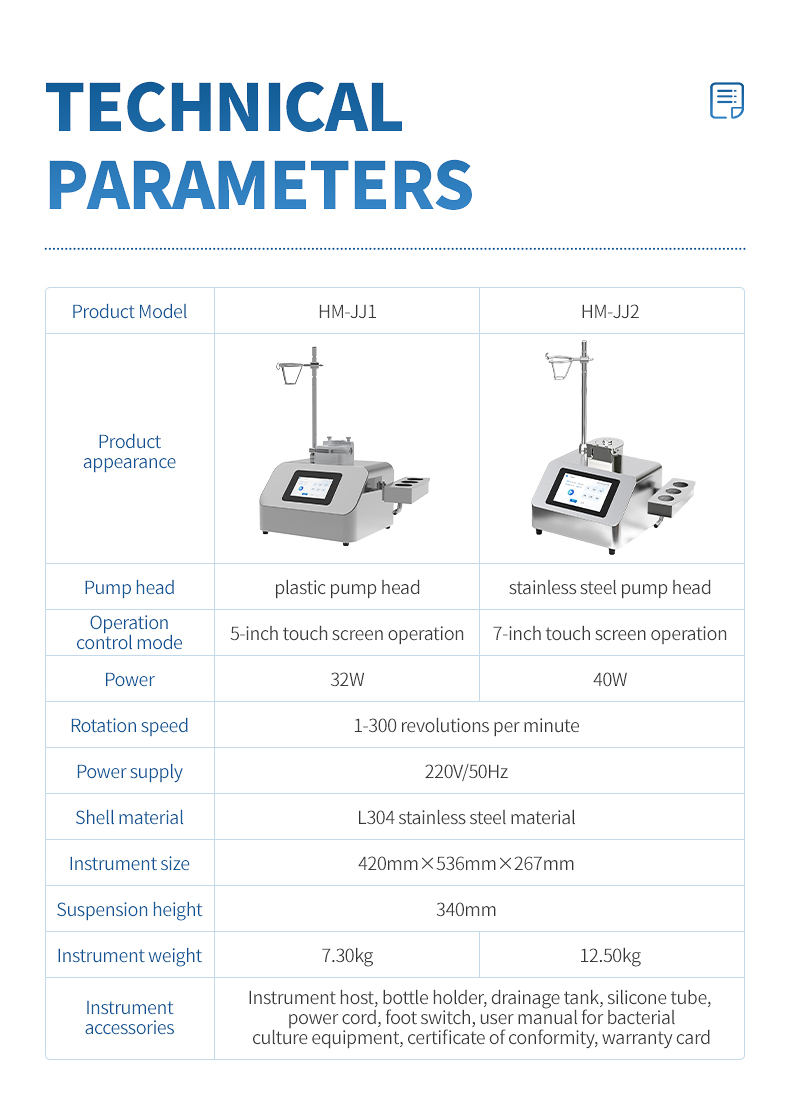

Technical Specifications

FAQ

Q: What speed should I use for routine pharmaceutical sterility testing?

A: For standard aqueous injectable products, 100 to 150 rpm typically provides efficient filtration without risking membrane damage. Start with a lower speed for viscous or particulate-containing samples and gradually increase. The 6 preset speed settings allow you to save commonly used speeds for one-touch recall during daily operations.

Q: How does the L304 stainless steel shell support GMP compliance?

A: The L304 grade stainless steel integrated shell has a smooth, seamless surface with no joints or dead corners. This design prevents microbial harboring, withstands routine disinfection with alcohol-based and quaternary ammonium compounds, and simplifies cleaning validation — all critical requirements for GMP-regulated pharmaceutical testing environments.

Q: Can the HM-JJ1 be used inside a laminar flow cabinet?

A: Yes, the compact dimensions of 420 x 536 x 267 mm and 7.30 kg weight make the HM-JJ1 suitable for installation inside standard laminar flow cabinets or biological safety cabinets commonly used for aseptic sterility testing procedures.

Q: How often should I replace the peristaltic pump tubing?

A: Replace tubing after approximately 200 to 500 hours of cumulative use, or when you notice cracking, reduced flow rate at the same speed setting, or any leakage. Using manufacturer-specified tubing ensures proper fit and chemical compatibility with your samples.

Q: What after-sales support is available?

A: HM Instruments provides a 1-year warranty, 24-hour response through 280 service outlets nationwide, lifelong technical support, and lifelong spare parts supply. Software updates for the touchscreen interface are provided free of charge for the instrument's lifetime.
