Enhanced Particulate Sampler for Industrial Air Quality

Product Introduction

Industrial facilities face persistent challenges in managing airborne particulate concentrations. Manufacturing plants, construction sites, mining operations, and metal processing workshops generate significant volumes of respirable dust, metal fumes, and combustion byproducts that pose chronic health risks to workers and can trigger regulatory violations. Conventional particulate samplers often struggle with the demanding conditions found in industrial environments: limited flow range restricts their ability to capture high-concentration aerosol events, single AC-only power supplies prevent deployment at sites without grid access, and insufficient pressure compensation leads to inaccurate volume measurements at elevated altitudes. The HM-H6 enhanced particulate air sampler from HM Instruments addresses these operational gaps with a purpose-built design for industrial and occupational hygiene monitoring. Its extended flow range of (10–130) L/min with accuracy better than ±2.0% covers both low-volume personal exposure assessments and high-volume ambient dust monitoring campaigns. The integrated pre-gauge pressure measurement across (-35–35) kPa and atmospheric pressure compensation from 50 to 110 kPa ensure volume accuracy regardless of filter loading or altitude variation. A dual power system supporting AC 220 V ±10% at 50 Hz and DC 29.4 V / 5 A enables uninterrupted sampling during power outages or at off-grid locations. Programmable sampling intervals from 1 minute to 99 hours 59 minutes accommodate shift-based monitoring and 24-hour compliance surveys. At just 4.0 kg with compact dimensions of 165 × 330 × 275 mm, the HM-H6 is readily portable between monitoring points. Noise output below 60 dB(A) and power consumption under 100 W make it suitable for continuous operation in occupied workspaces without disrupting production activities.

Applications

• Manufacturing plant air monitoring. Capture TSP, PM10, and PM2.5 at machining, welding, grinding, and assembly stations for OSHA and local regulatory compliance.

• Construction site dust surveillance. Deploy at site perimeters and sensitive receptor locations to document particulate emission levels against environmental impact assessment requirements.

• Occupational hygiene surveys. Conduct personal and area sampling for respirable crystalline silica, metal dust, and welding fume exposure assessment in industrial workplaces.

• Mine and quarry operations. Monitor respirable dust concentrations in underground and surface mining environments with battery-powered field deployment.

• Indoor industrial air quality. Assess particulate levels in warehouses, production halls, and logistics centers where ventilation effectiveness must be verified.

• Emission source characterization. Sample near stacks, baghouse outlets, and fugitive emission points to quantify particulate loading and verify abatement system performance.

• Environmental impact assessments. Provide gravimetric particulate data for baseline studies and post-construction monitoring at industrial development sites.

Key Features & Advantages

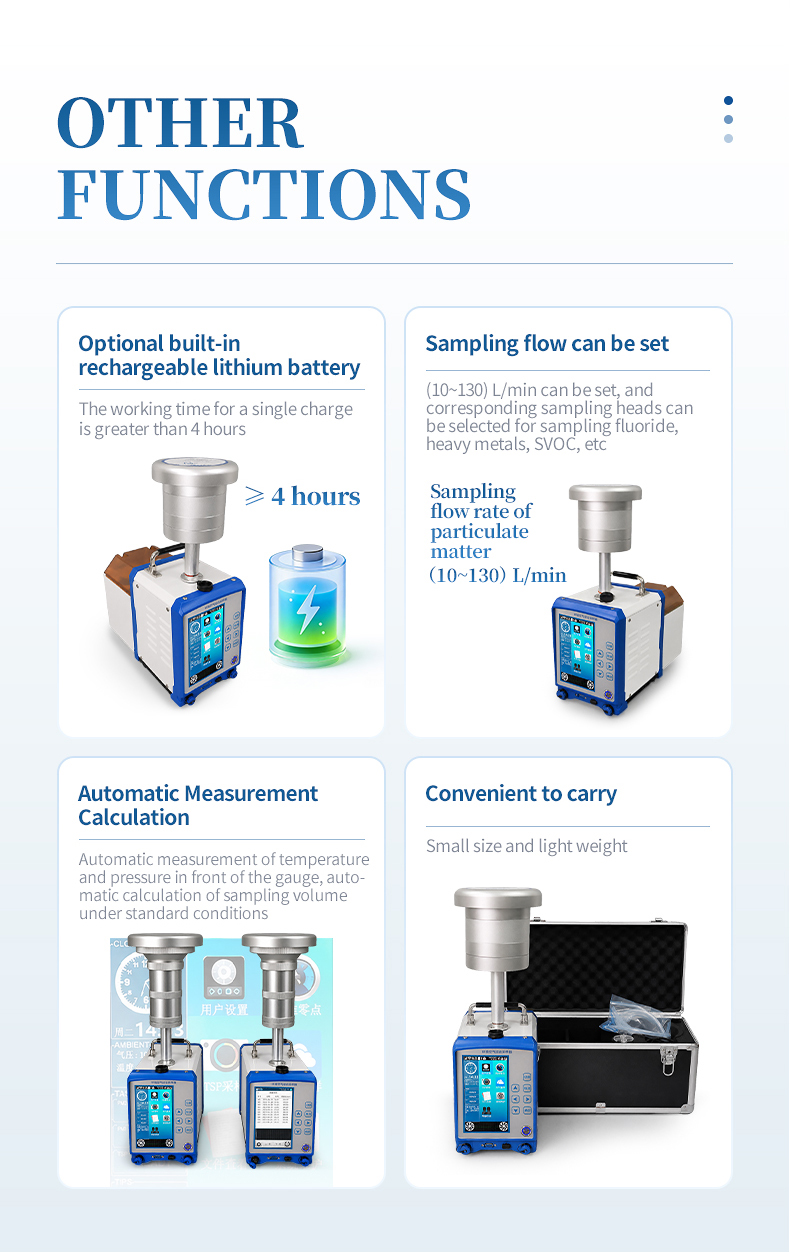

1. Extended flow range (10–130) L/min. Covers both low-flow personal exposure sampling and high-volume area monitoring without instrument changeover.

2. ±2.0% flow accuracy and stability. Ensures sample volume precision for defensible compliance reporting and inter-laboratory comparability.

3. Pre-gauge pressure monitoring (-35–35) kPa. Detects filter loading and flow restriction in real time, preventing under-sampling during long-duration runs.

4. Wide atmospheric pressure compensation (50–110) kPa. Maintains volume accuracy at elevations from sea level to high-altitude mining and industrial sites.

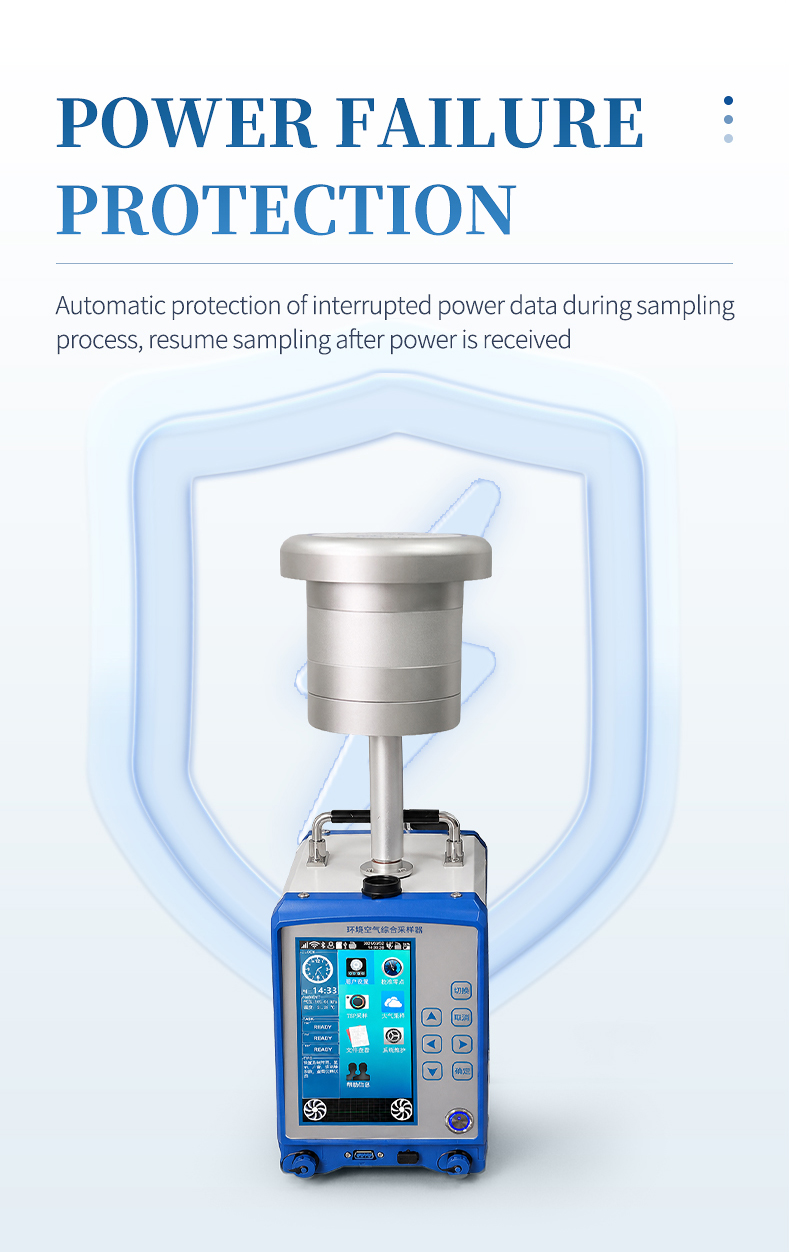

5. Dual AC/DC power supply. AC 220 V ±10% 50 Hz for continuous stationary monitoring; DC 29.4 V / 5 A for remote field locations and power-failure resilience.

6. Programmable sampling timer (1 min – 99 h 59 min). Supports short-term task-based sampling and multi-day continuous monitoring campaigns.

7. Low noise operation below 60 dB(A). Enables deployment in occupied offices, control rooms, and noise-sensitive residential boundary monitoring without disruption.

8. Compact and portable design. 165 × 330 × 275 mm, approximately 4.0 kg — easily carried between multiple monitoring points on large industrial sites.

9. Power consumption under 100 W. Energy-efficient operation reduces electricity costs for long-term monitoring stations and extends battery runtime in DC mode.

10. Enhanced particulate parameter monitoring. Comprehensive aerosol characterization beyond basic flow measurement for detailed industrial hygiene assessments.

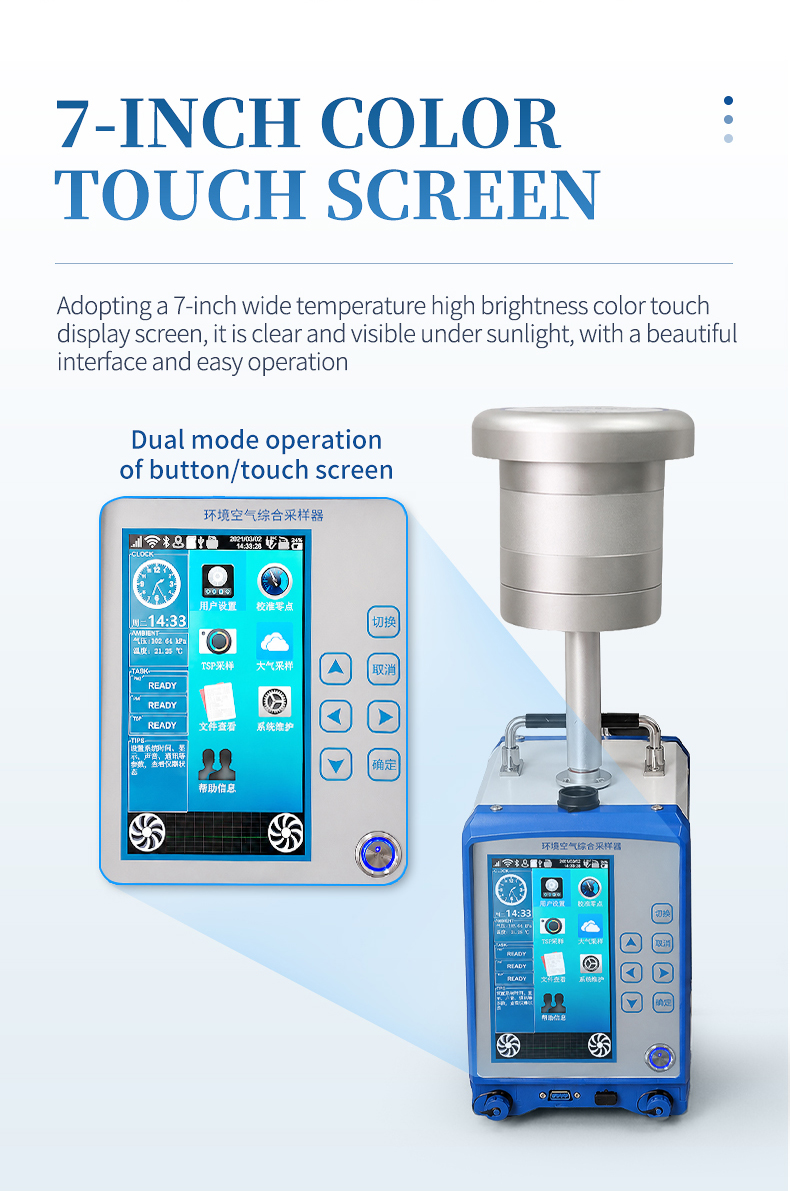

11. Rapid setup and operation. Intuitive controls allow field technicians to configure and initiate sampling within minutes without extensive training.

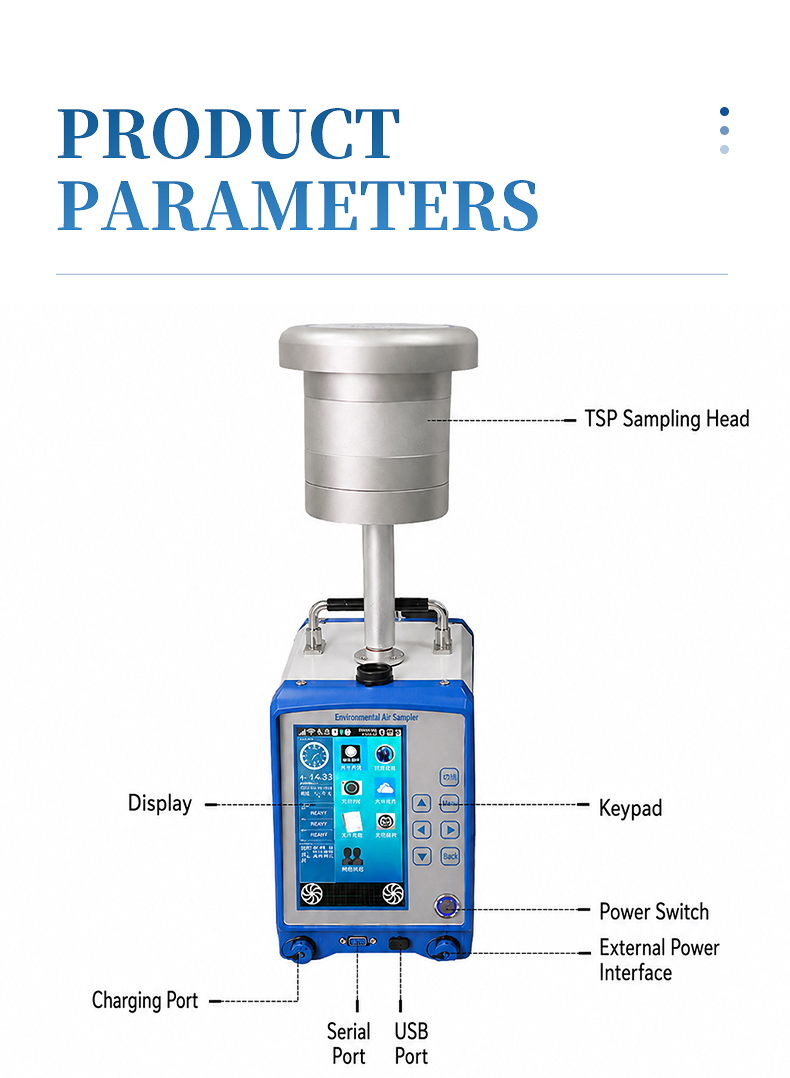

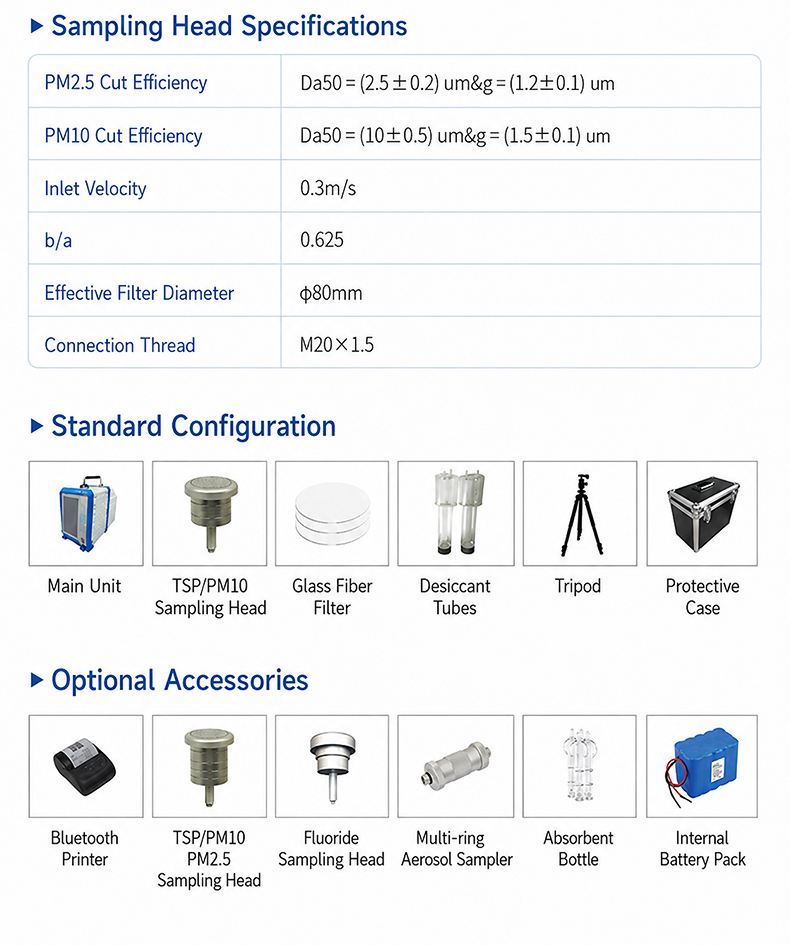

12. Versatile filter media compatibility. Accepts standard filter cassettes and impactor heads for PM10, PM2.5, and TSP fractionated collection.

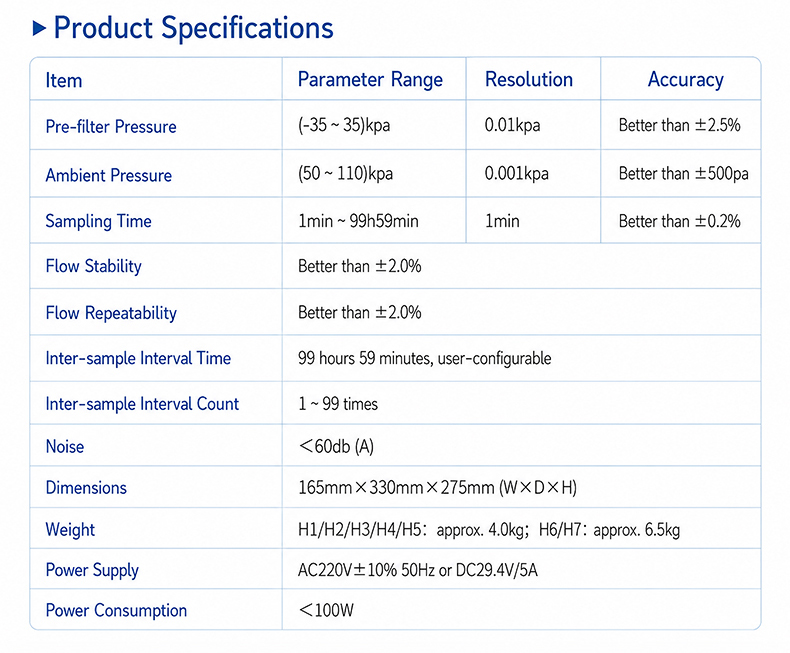

Technical Specifications

FAQ

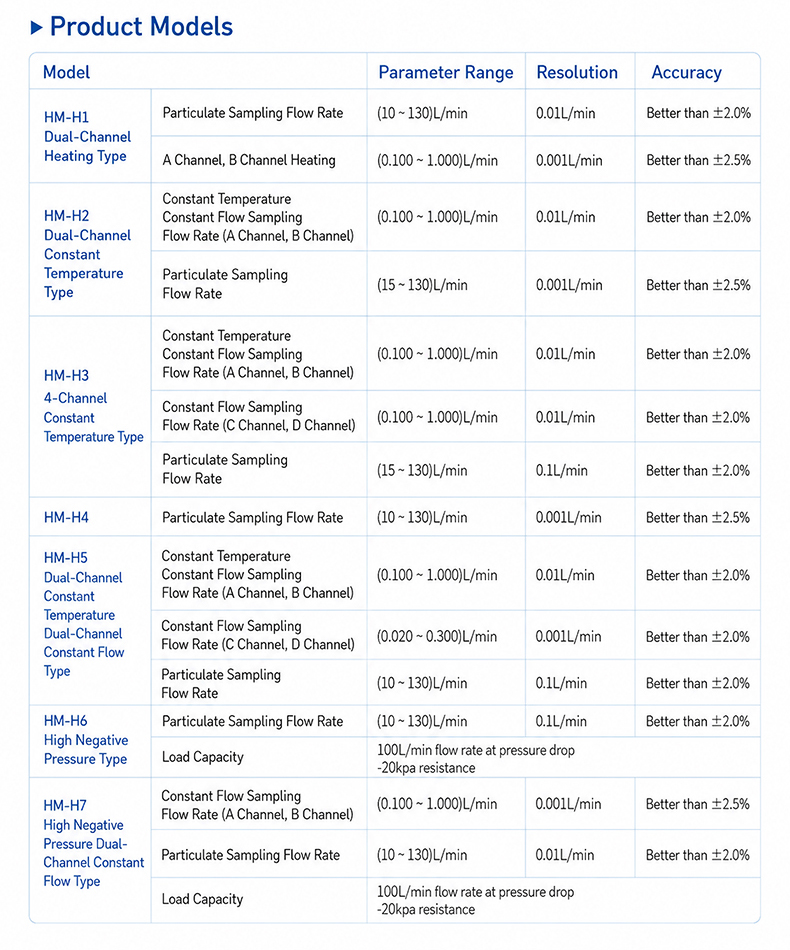

Q: What is the difference between the HM-H6 and a basic particulate air sampler?

A: The HM-H6 extends the standard flow range to (10–130) L/min compared with narrower ranges on basic models, adds pre-gauge pressure measurement from (-35–35) kPa for real-time filter loading detection, and includes dual AC/DC power supply capability. These enhancements make it suitable for industrial environments where high-concentration particulate events, variable power availability, and altitude differences demand more capable instrumentation than entry-level samplers can provide.

Q: Can the HM-H6 operate on battery power in the field?

A: Yes. The HM-H6 supports DC 29.4 V / 5 A power input, allowing field deployment at construction sites, mining operations, and remote monitoring points where AC mains power is unavailable. The total power consumption is under 100 W, and the programmable sampling timer supports sessions up to 99 hours 59 minutes for extended campaigns.

Q: What filter types and sampling heads are compatible with the HM-H6?

A: The HM-H6 accepts standard particulate filter cassettes and impactor sampling heads commonly used for TSP, PM10, and PM2.5 fractionated collection. Its flow range of (10–130) L/min and pre-gauge pressure monitoring accommodate various filter media and loading conditions without requiring separate flow-adjustment accessories.

Q: How does the atmospheric pressure compensation work?

A: The HM-H6 integrates an atmospheric pressure sensor with a range of (50–110) kPa. The instrument automatically adjusts flow calculations based on the measured ambient pressure, ensuring that the reported sampling volume remains accurate regardless of altitude. This is critical for mining sites and mountainous industrial facilities where uncompensated samplers can produce significant volume errors.

Q: Is the HM-H6 suitable for continuous 24-hour ambient monitoring?

A: Yes. With a programmable timer extending to 99 h 59 minutes, AC mains power capability, noise output below 60 dB(A), and power consumption under 100 W, the HM-H6 is well-suited for continuous ambient particulate monitoring at automatic stations and industrial boundary monitoring points over extended periods.

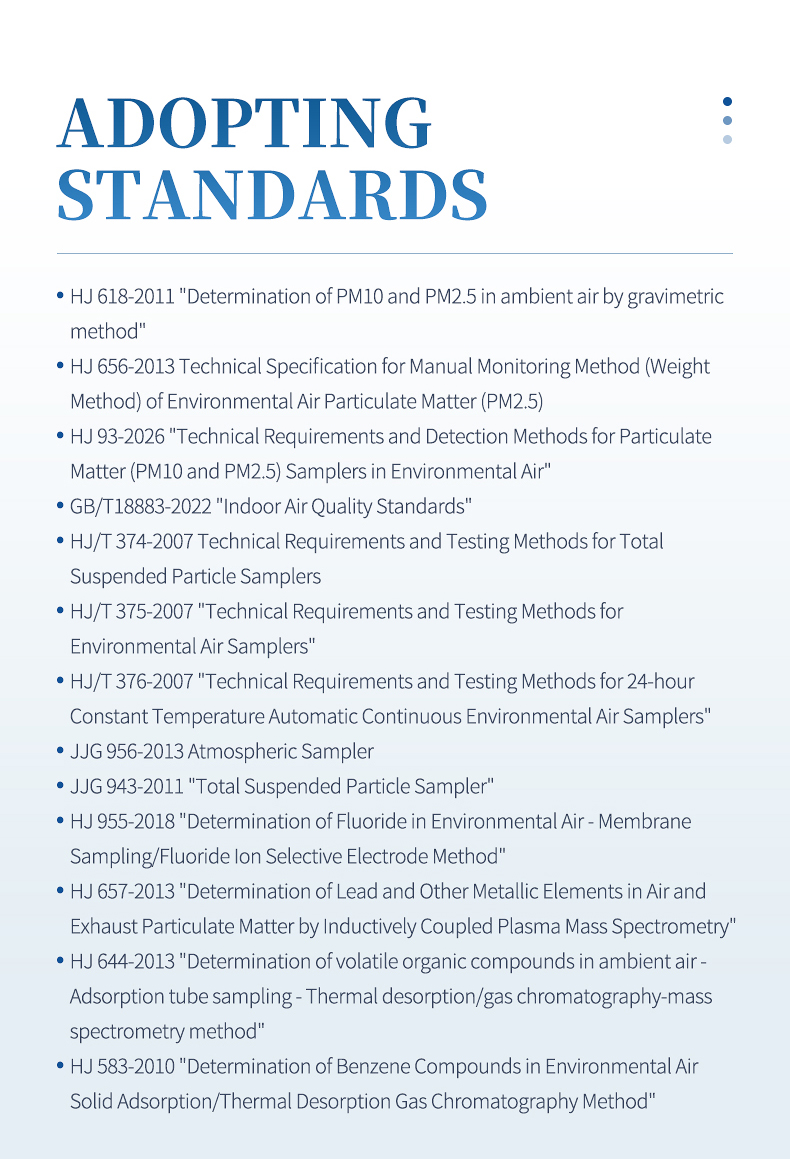

Q: What standards does the HM-H6 particulate sampling comply with?

A: The HM-H6 is designed to meet the technical requirements of national and international particulate sampling methods including HJ/T 374 and HJ/T 375 for total suspended particulate and PM10 gravimetric sampling. Its ±2.0% flow accuracy and stability exceed the precision thresholds specified in these methods, supporting regulatory compliance monitoring at industrial facilities.

Q: How portable is the HM-H6 for multi-point monitoring campaigns?

A: The HM-H6 weighs approximately 4.0 kg with compact dimensions of 165 × 330 × 275 mm, making it one of the lighter instruments in its flow class. A single technician can carry it between monitoring points across a large industrial site, and it can be mounted on standard tripods or placed on benches for area sampling without special installation requirements.
