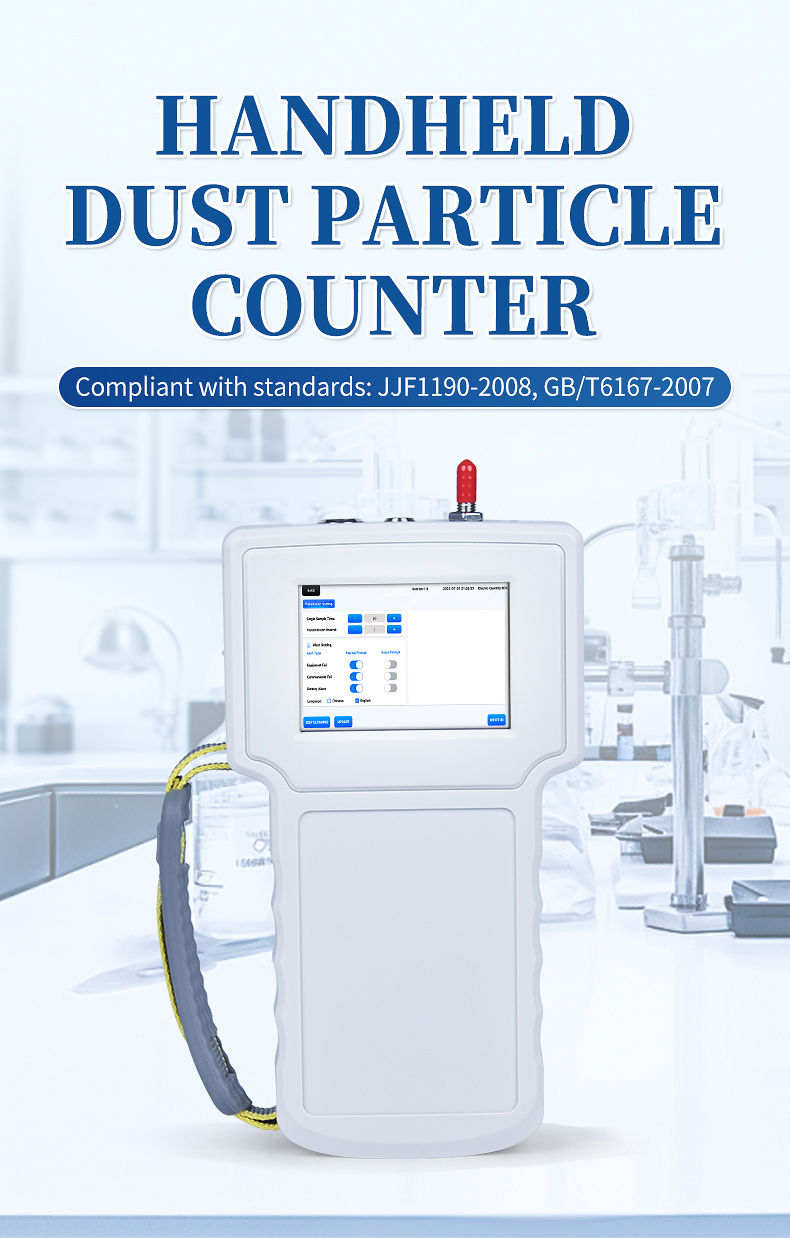

Handheld Dust Particle Counter

Introduction:

A handheld particle counter is a portable device designed to rapidly measure the number and size distribution of dust, particulate matter, and other small particles in the air. These instruments are widely used in various industries, including but not limited to pharmaceuticals, semiconductor manufacturing, hospitals, cleanrooms, and air purifier effectiveness verification.

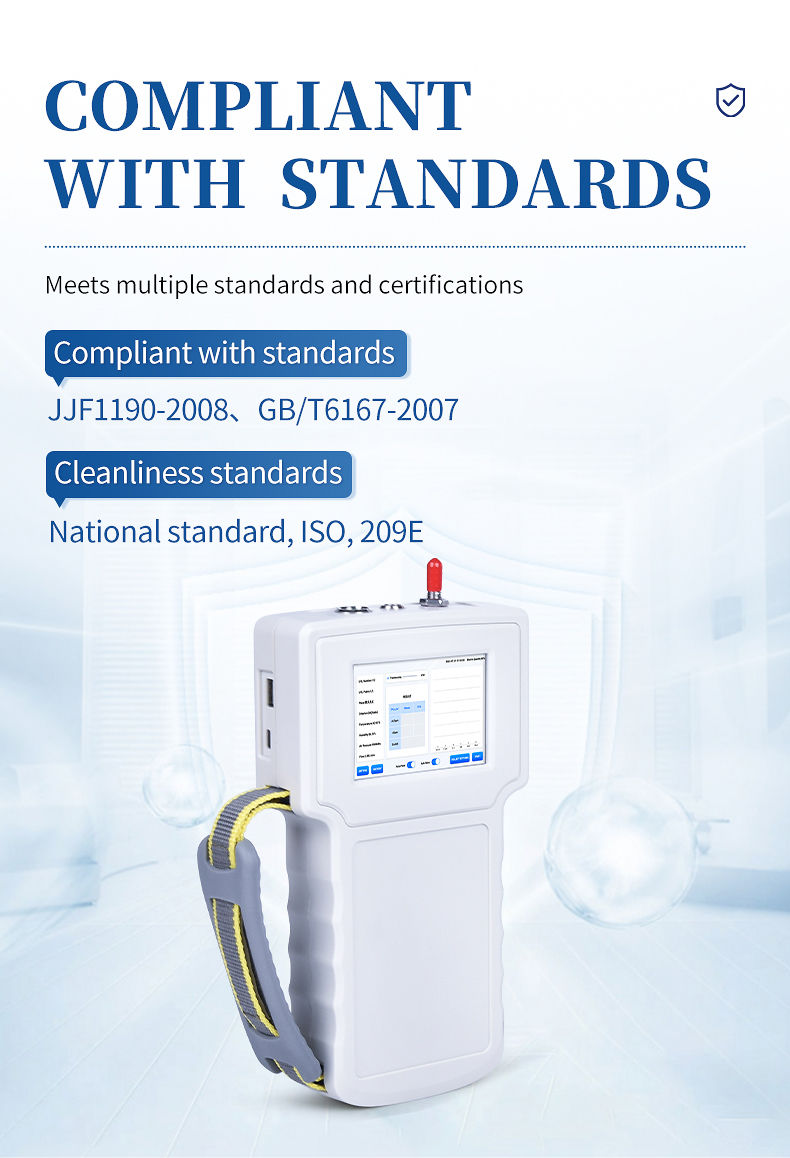

Standards and Certifications

• Compliant Standards: JJF1190-2008, GB/T6167-2007

• Cleanliness Standards: National Standard, ISO, 209E, and the new GMP (dynamic and static)

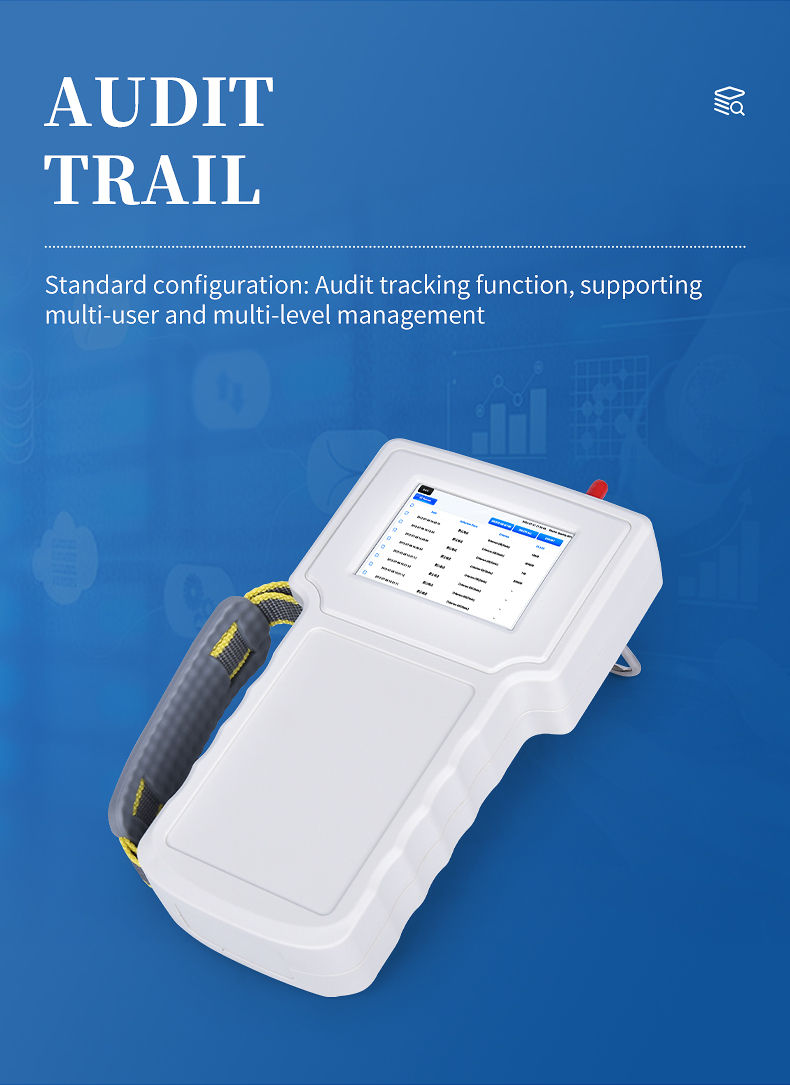

Audit Trail

• Standard: Audit trail functionality with support for multi-user and multi-level management.

Technical Parameters:

1. Light Source

• Type: Semiconductor Laser

• Lifespan: Greater than 35,000 hours

2. Sampling Flow Rate

Standard Flow Rate: 2.83 L/min (0.1 ft³/min)

Accuracy: ±5% (at 2.83 L/min)

3. Particle Counting

Particle Size Channels: 0.3μm, 0.5μm, 1.0μm, 3.0μm, 5.0μm, 10μm

Maximum Sampling Concentration: 35,000 particles/L (particle size ≥ 0.5μm)

Relative Repeatability Error: <10%

Particle Size Distribution Error: ±30% for a 0.5μm particle size cutoff

4. Display

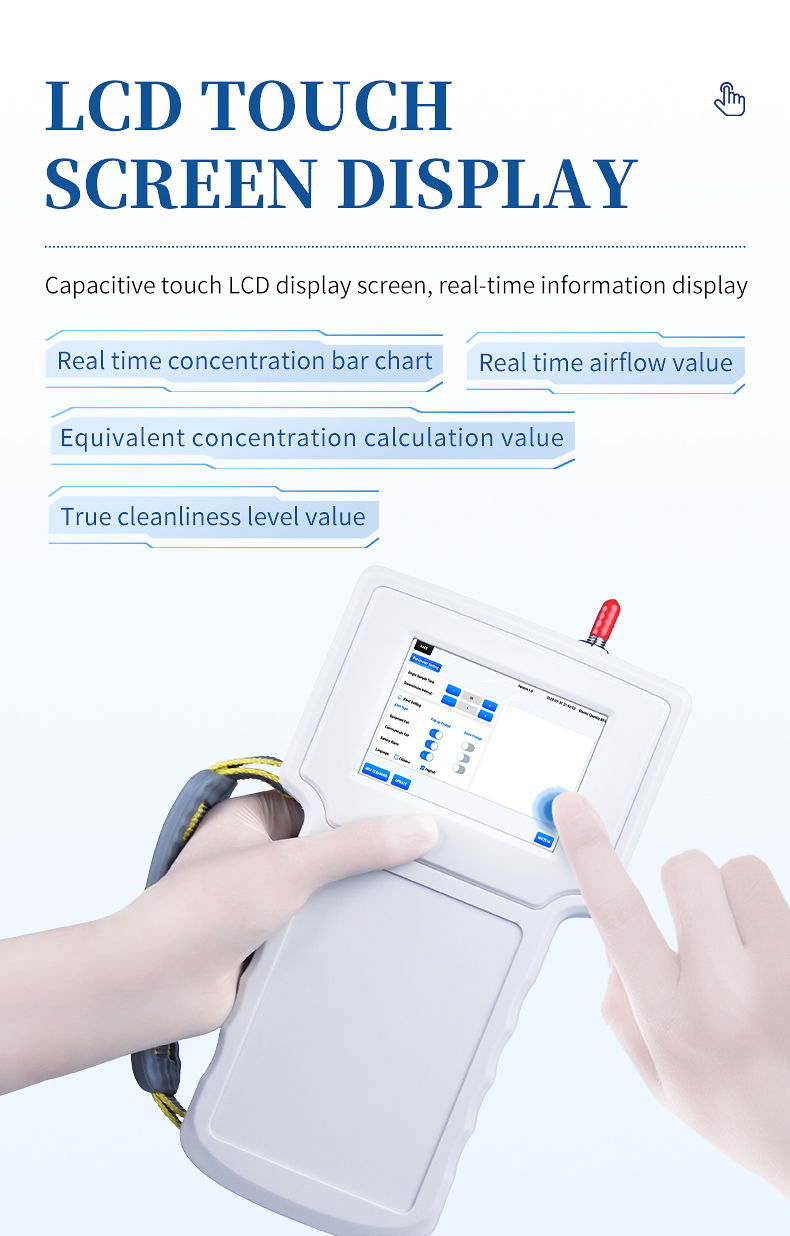

Screen: Capacitive Touchscreen Liquid Crystal Display (LCD)

Information Display: Real-time concentration bar graph, calculated equivalent concentration, real-time airflow value, and actual cleanliness level.

Additional information: Time, date, measurement value, temperature and humidity, room number, sampling point, sampling times, battery level, status, etc.

Data memory capacity: 10,000-100,000 records, searchable and exportable.

5. Data Processing

Storage: Automatically records and saves sampling data, with 4GB of built-in storage space.

Export: Supports data export to a USB flash drive and printing to a Bluetooth printer.

Calculation: 95% UCL calculation, directly displays particle concentration (particles, particles/m³, particles/ft³).

6. Battery

Type: Lithium-ion battery, 3.7V, 10,000mAh

Battery Life: ≥ 8 hours

7. Operation and Connection

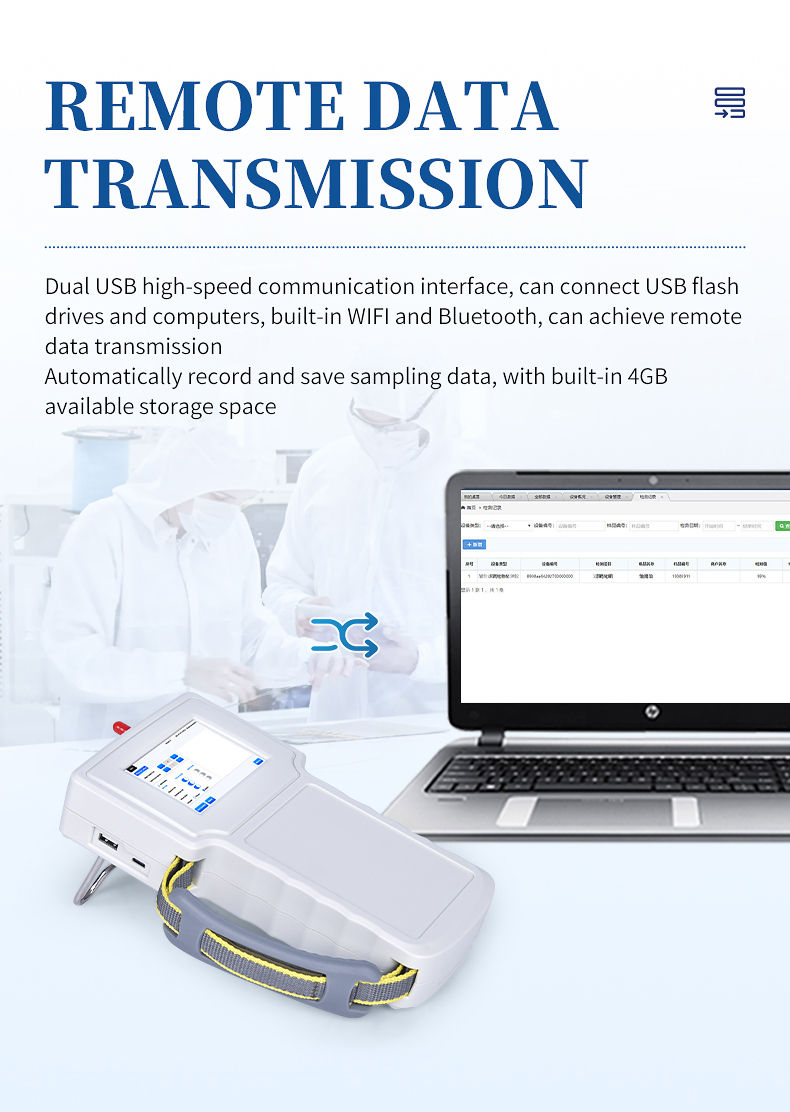

Interface: Dual high-speed USB ports for connection to a USB flash drive and a computer.

Network: Built-in Wi-Fi for remote data transmission.

Printer: Equipped with a separate Bluetooth printer for real-time data printing.

8. Operating Environment

Temperature: 0°C to 40°C

Humidity: 10% to 75%

Sample Gas: Must not contain corrosive gases such as acids or alkalis.

9. Storage Environment

Temperature: 0°C to 45°C

Humidity: 0% to 90% RH

10. Alarm Settings

Alarm settings are used for cleanliness level alarms.
