Atmospheric particulate matter sampler

Product overview

The HM-H1 atmospheric particulate sampler (hereinafter referred to as the sampler) is an essential instrument used to capture samples of particulate matter (TSP, PM10, PM2.5, etc.) and various gas components (SO2, NOx, etc.) in the atmosphere. The development process of this sampler extensively solicited opinions from experts and users, and applied high-tech in current fields such as computers, sensors, and new materials. It has reliable quality, stable performance, and long service life.

Scope of application

The atmospheric particulate matter sampler uses the solution absorption method to collect various harmful gases in the ambient atmosphere and indoor air; The filter membrane weighing method is used to capture total suspended particles (TSP) and inhalable particles (PM10) or (PM2.5), fluoride, heavy metals, SVOC, etc. in the ambient atmosphere. It can be used for routine and emergency monitoring of gaseous substances and aerosols by departments such as environmental protection, health, labor, safety supervision, military, scientific research, and education.

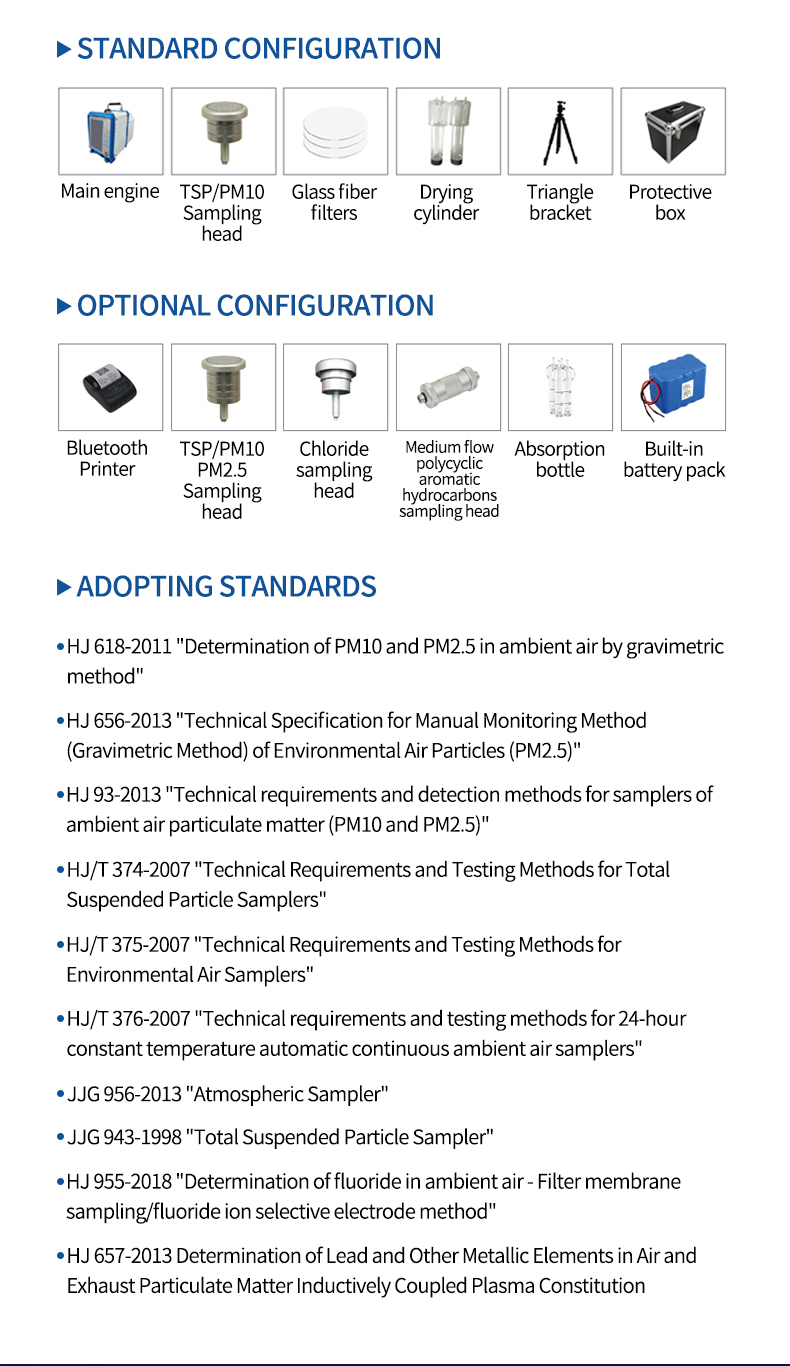

Adopting standards

HJ 618-2011 "Determination of PM10 and PM2.5 in ambient air by gravimetric method"

HJ 656-2013 Technical Specification for Manual Monitoring Method (Weight Method) of Environmental Air Particulate Matter (PM2.5)

HJ 93-2013 "Technical Requirements and Detection Methods for Particulate Matter (PM10 and PM2.5) Samplers in Environmental Air"

HJ/T 374-2007 Technical Requirements and Testing Methods for Total Suspended Particle Samplers

HJ/T 375-2007 "Technical Requirements and Testing Methods for Environmental Air Samplers"

JJG 956-2013 Atmospheric Sampler

JJG 943-1998 "Total Suspended Particle Sampler"

HJ 955-2018 "Determination of Fluoride in Environmental Air - Membrane Sampling/Fluoride Ion Selective Electrode Method"

HJ 657-2013 "Determination of Lead and Other Metallic Elements in Air and Exhaust Particulate Matter by Inductively Coupled Plasma Mass Spectrometry"

Features

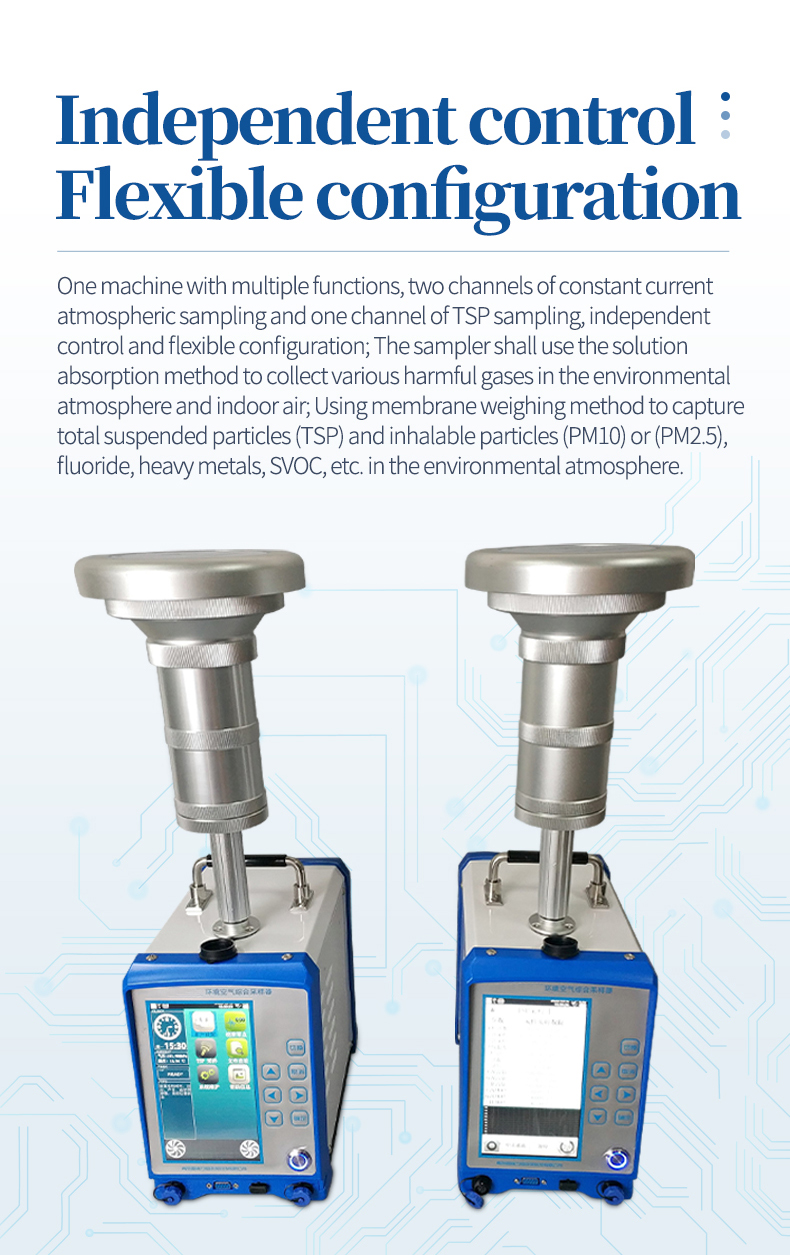

1) Multi functional, with two constant current atmospheric sampling channels and one TSP sampling channel, independent control and flexible configuration;

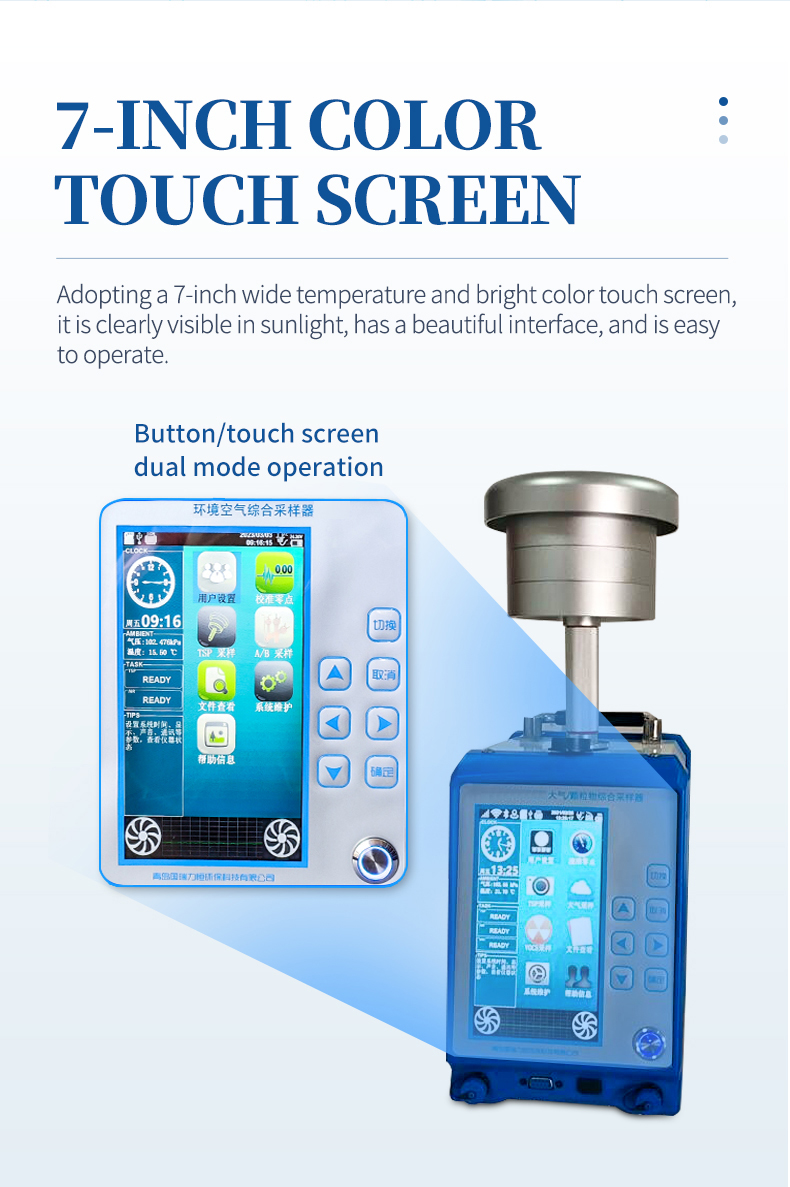

2) Adopting a 7.0-inch wide temperature high brightness color touch display screen, it is clear and visible under sunlight, with a beautiful interface and easy operation;

3) Dual operation mode of buttons and touch, suitable for various user operating habits;

4) Optional built-in rechargeable lithium battery, with a single charge working time of more than 4 hours;

5) Massive data storage, with a storage capacity of over 100000 sets of data;

6) The sampling flow rate of particulate matter can be set, and when used in conjunction with corresponding sampling heads, it can be used for sampling fluoride, heavy metals, SVOS, etc;

7) Using imported sampling pumps, with high load capacity, low noise, stable flow rate, and long service life;

8) Automatic measurement of temperature and air pressure, automatic calculation of standard sampling volume;

9) Small size, light weight, easy to carry;

10) Automatic protection of interrupted power data during the sampling process, and resuming sampling after power is received;

11) Dual data output mode, capable of Bluetooth printing or USB export;

12) Aluminum alloy material sampling head, anti-static adsorption;

13) The whole machine adopts excellent dust-proof and waterproof design, which can ensure normal operation in rainy and snowy weather;

14) The whole machine is designed with electromagnetic compatibility in mind, and has strong anti-interference and anti radiation capabilities
