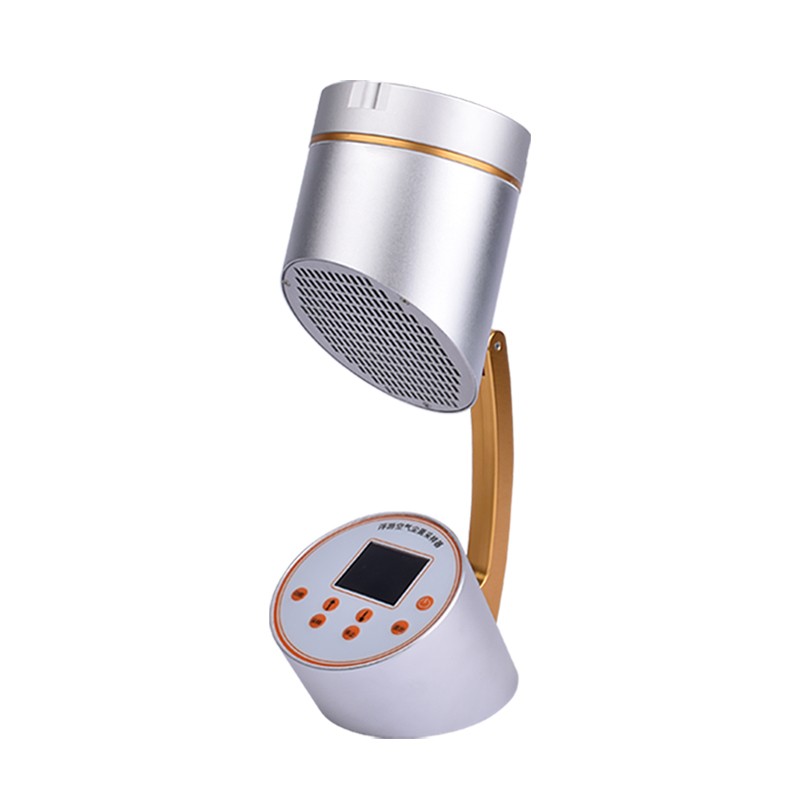

Airborne Bacteria Sampler

【Introduction】Porous-head impaction sampling at 100 L/min, with an adjustable 1–9999 L sampling volume and support for 90 × 15 mm culture dishes.

Product model: HM-KF1

+86 17853698681

Product details
Detail image
Related products
Related articles

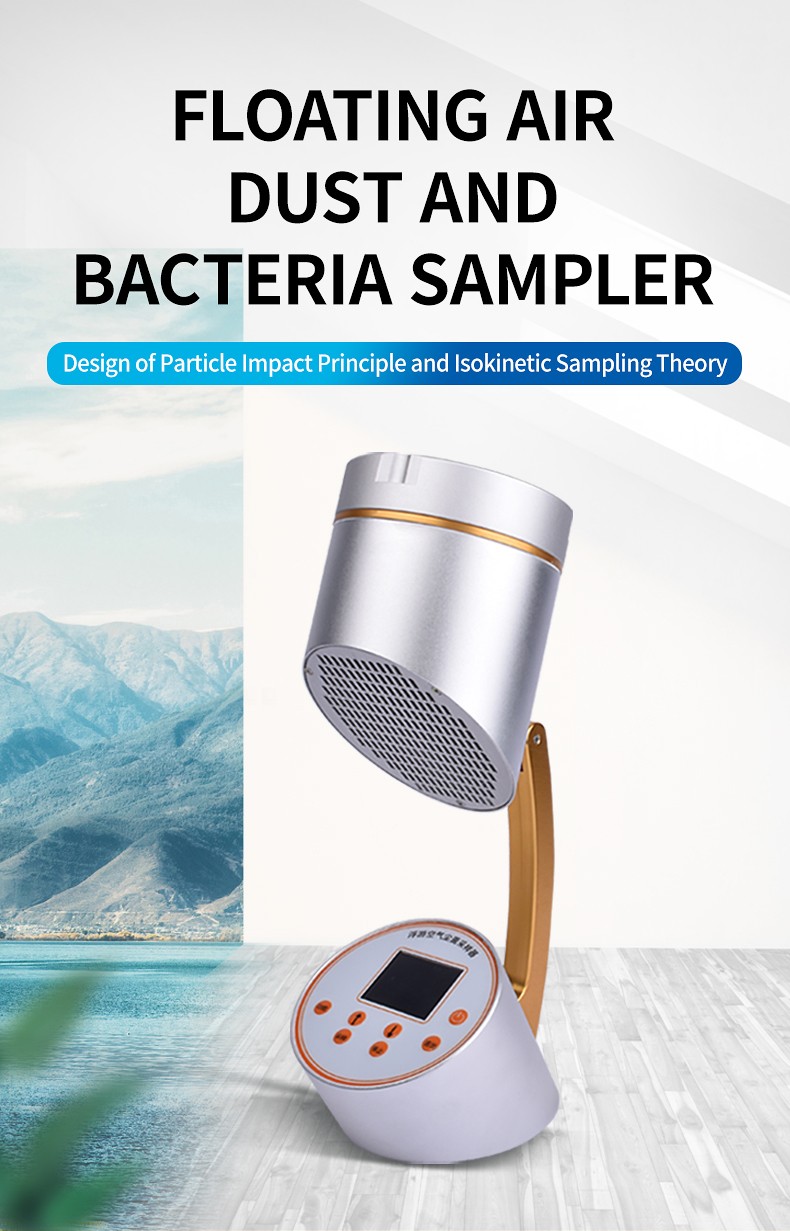

Porous-head airborne bacteria sampler product presentation

Airborne bacteria sampler measurement and operation features

Airborne bacteria sampling in laboratories and controlled environments

Airborne bacteria sampler LCD and control buttons

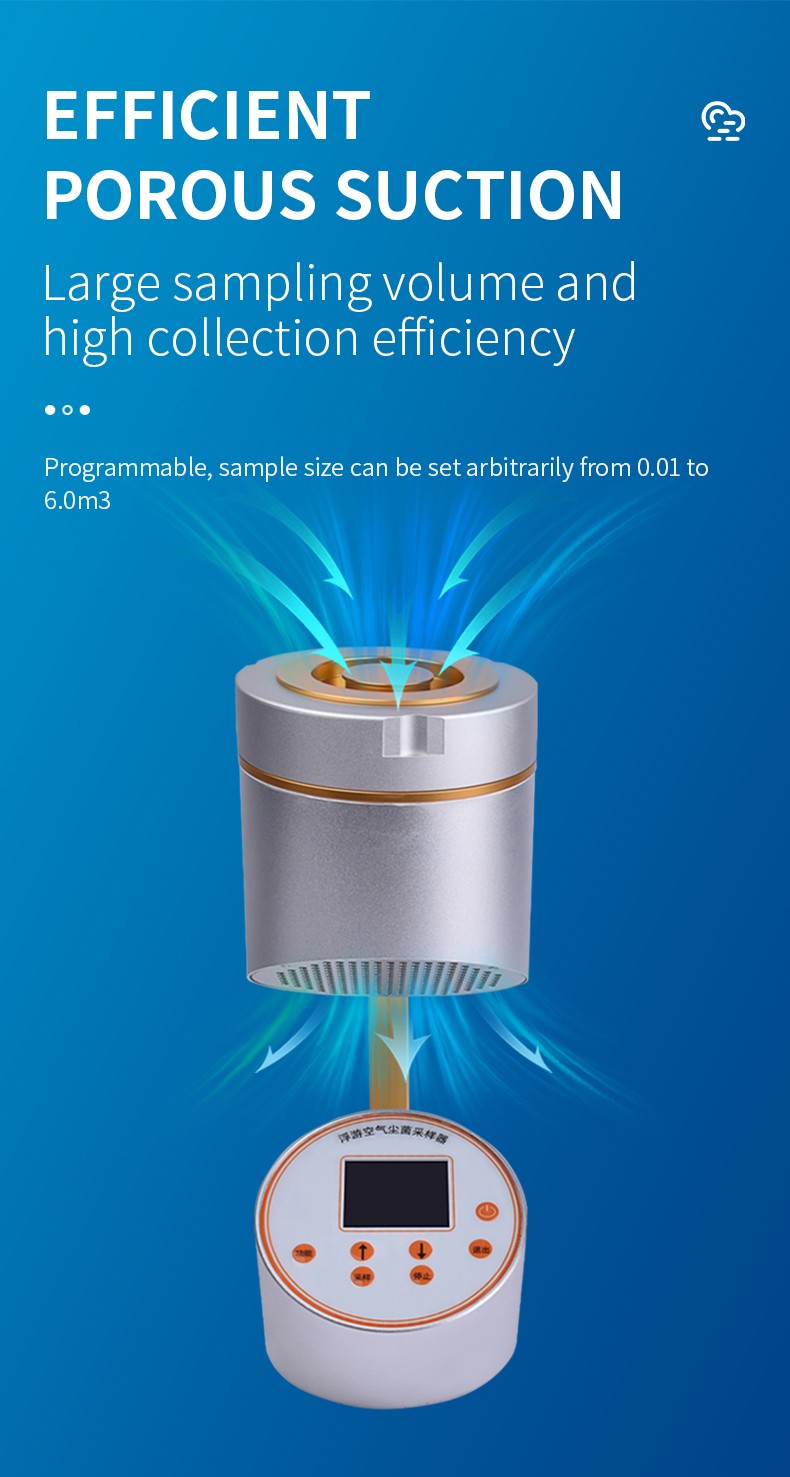

Porous sampling head for airborne microorganism collection

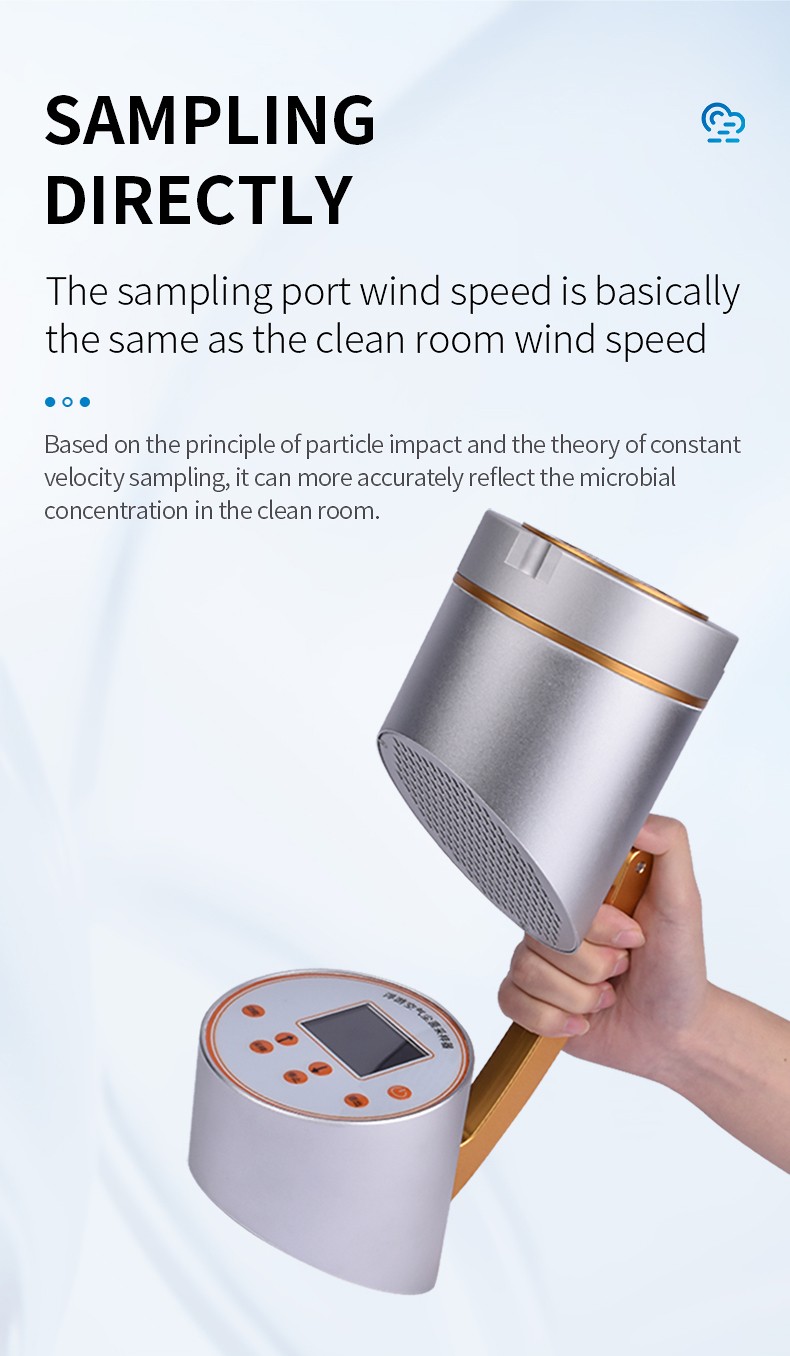

Airborne bacteria sampler sampling-head removal illustration

Ninety-millimeter culture dish for airborne bacteria sampling

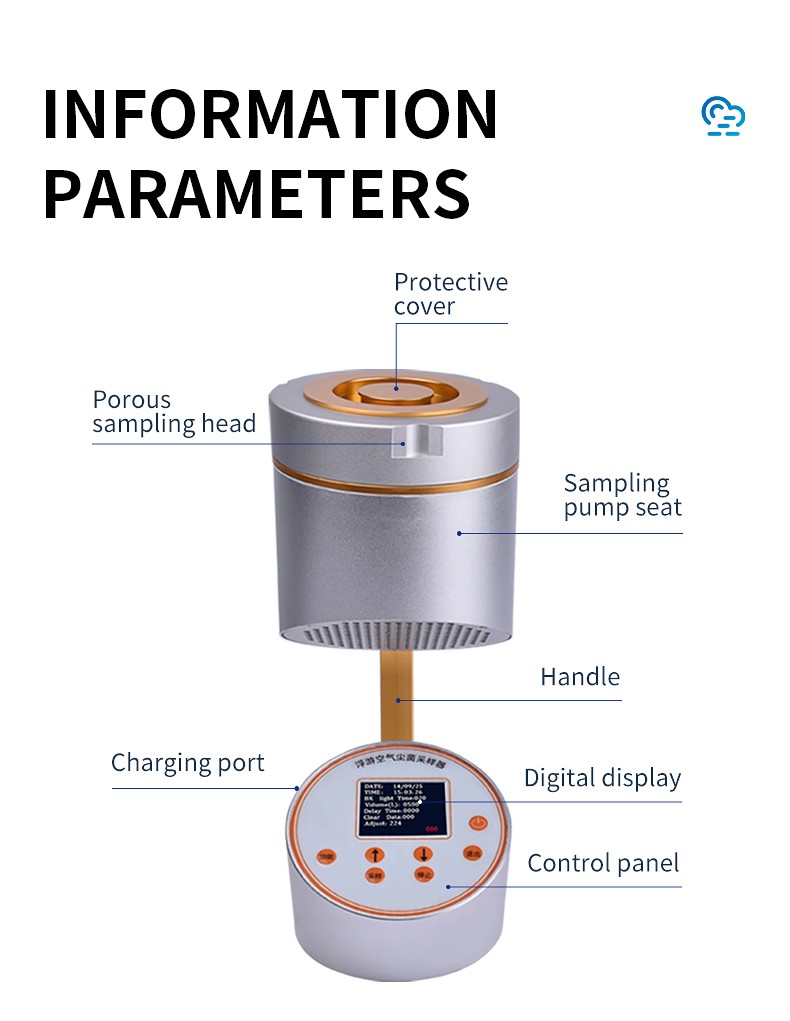

Airborne bacteria sampler components and controls

HM-KF1 airborne bacteria sampler technical specifications

Airborne bacteria sampler carrying case and accessories

HM Instruments company and team presentation

HM Instruments laboratory and manufacturing presentation

Product Overview

The HM-KF1 from HM Instruments is a porous-head airborne bacteria sampler that draws air through a perforated sampling head and impacts airborne particles onto agar in a culture dish. Subsequent incubation and colony counting support culture-based assessment of airborne microorganisms.

Key Features

A porous sampling head collects airborne microorganisms directly onto the agar surface.
Programmable sampling volume from 1 to 9999 L supports different monitoring plans.

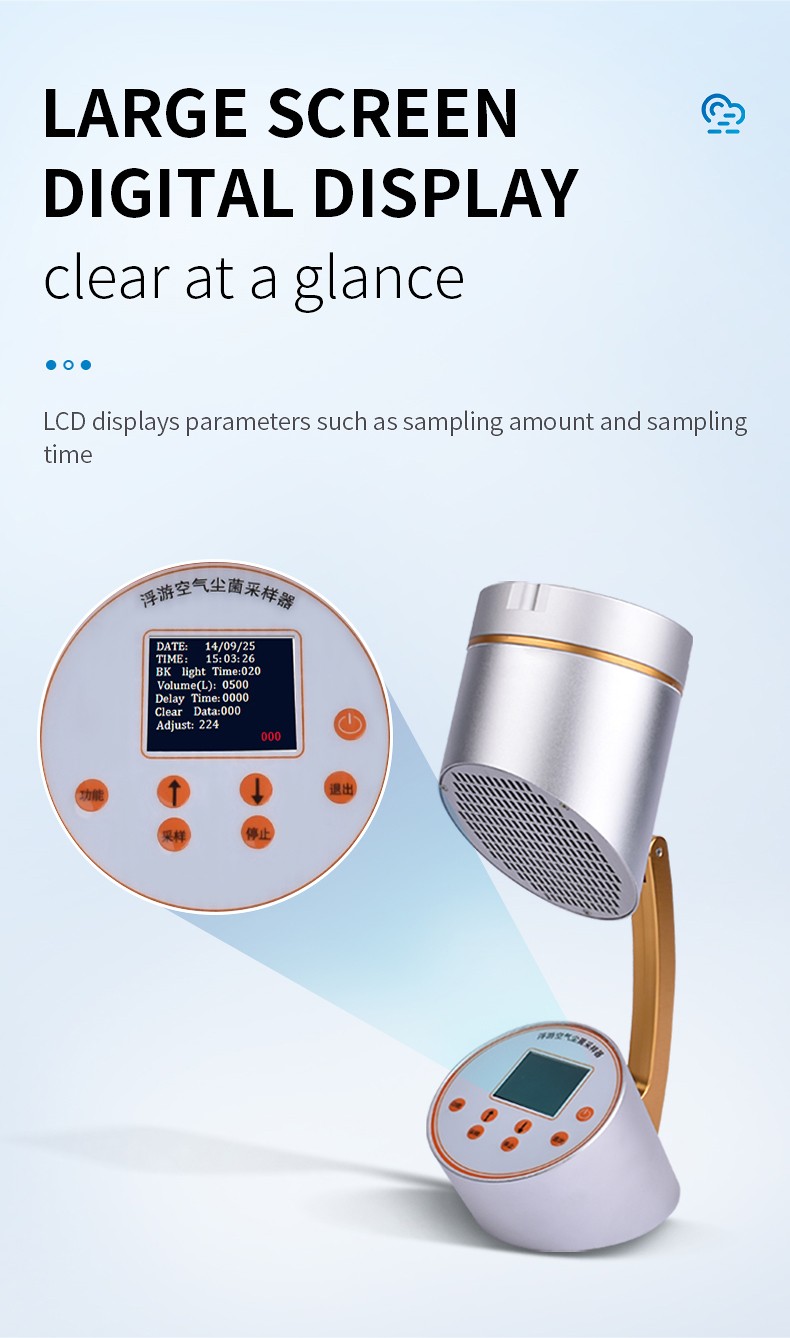

The LCD displays sampling volume, sampling time and operating information.
Sampling volume and time records can be stored in up to 256 data pages.

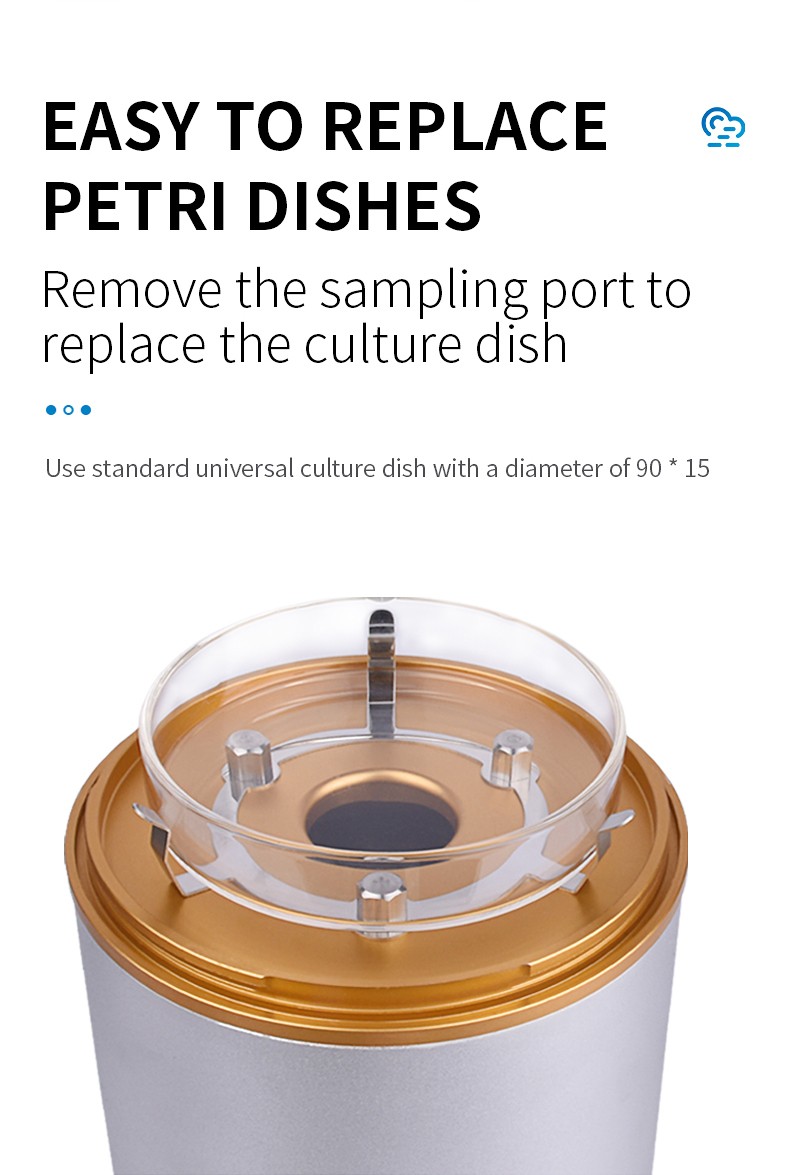

The removable sampling head allows replacement of standard 90 × 15 mm culture dishes.

Applications

Use in hospital monitoring, pharmaceutical and biological-product facilities, food-processing areas, public-place monitoring and laboratory studies of airborne microorganisms. The sampler collects onto culture plates; incubation and colony counting are separate stages of the monitoring procedure.

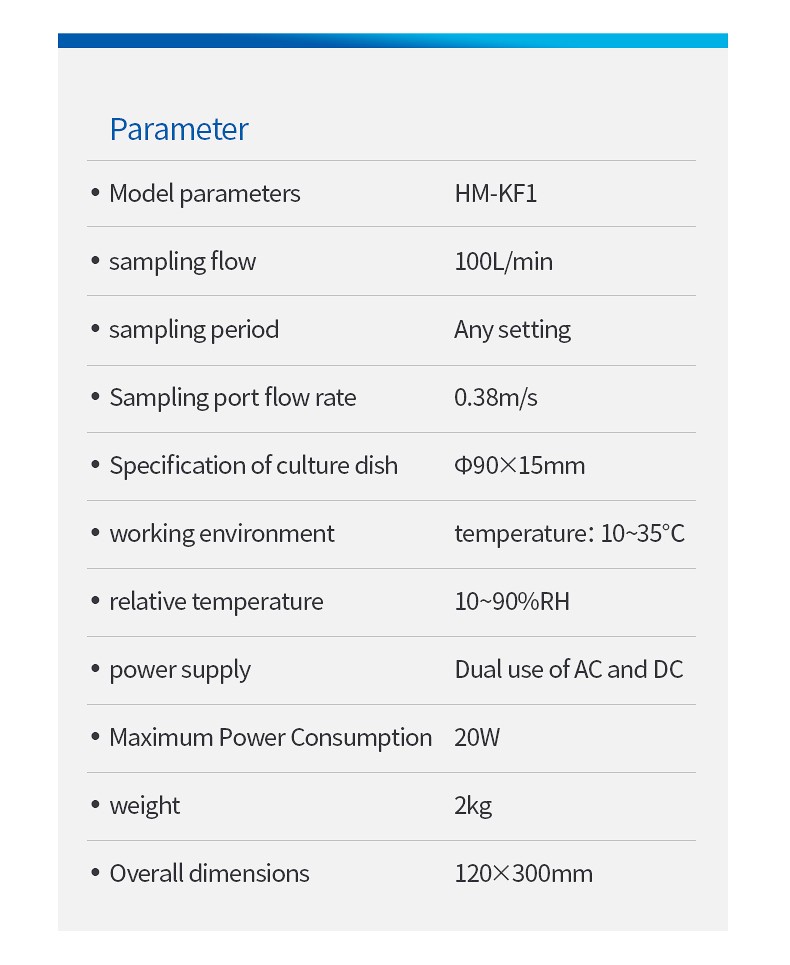

Technical Specifications

Parameter	Specification
Sampling flow	100 L/min
Programmable sampling volume	1–9999 L
Sampling-head air velocity	0.38 m/s
Culture dish size	90 × 15 mm
Stored records	Up to 256 data pages
Ambient temperature	10–35 °C
Relative humidity	10–90% RH
Power supply	AC and DC operation
Maximum power consumption	20 W
Weight	2 kg
Dimensions	120 × 300 mm

Operation and Support

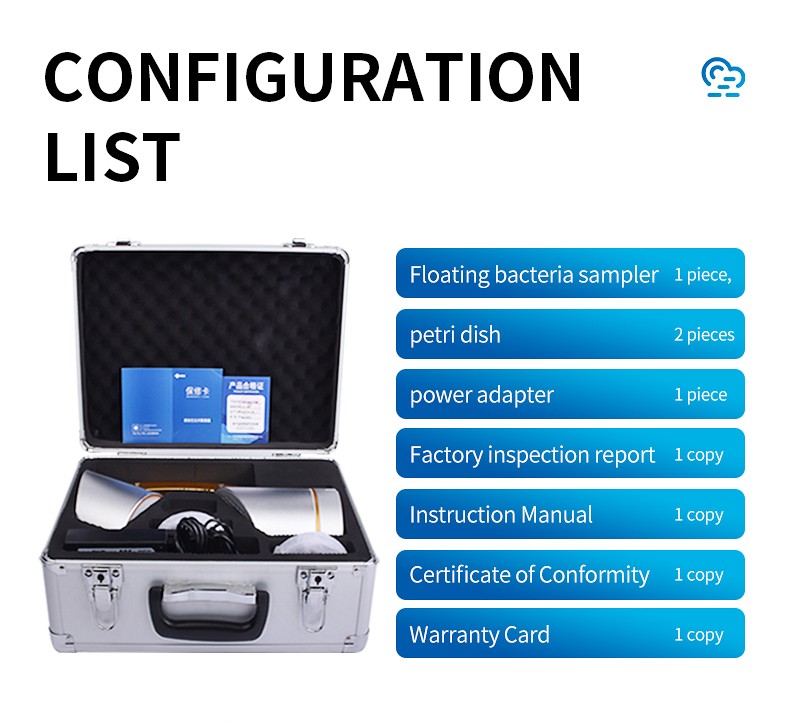

Fit a suitable agar culture dish, set the required sampling volume and run the sampling cycle. Remove the plate for incubation and colony counting under the monitoring procedure. The stated standard accessories include a power adapter, two culture dishes, an instruction manual, a conformity certificate, a factory inspection report and a warranty card.
