Particulate Air Sampler for Rapid Emergency Deployment

Product Introduction

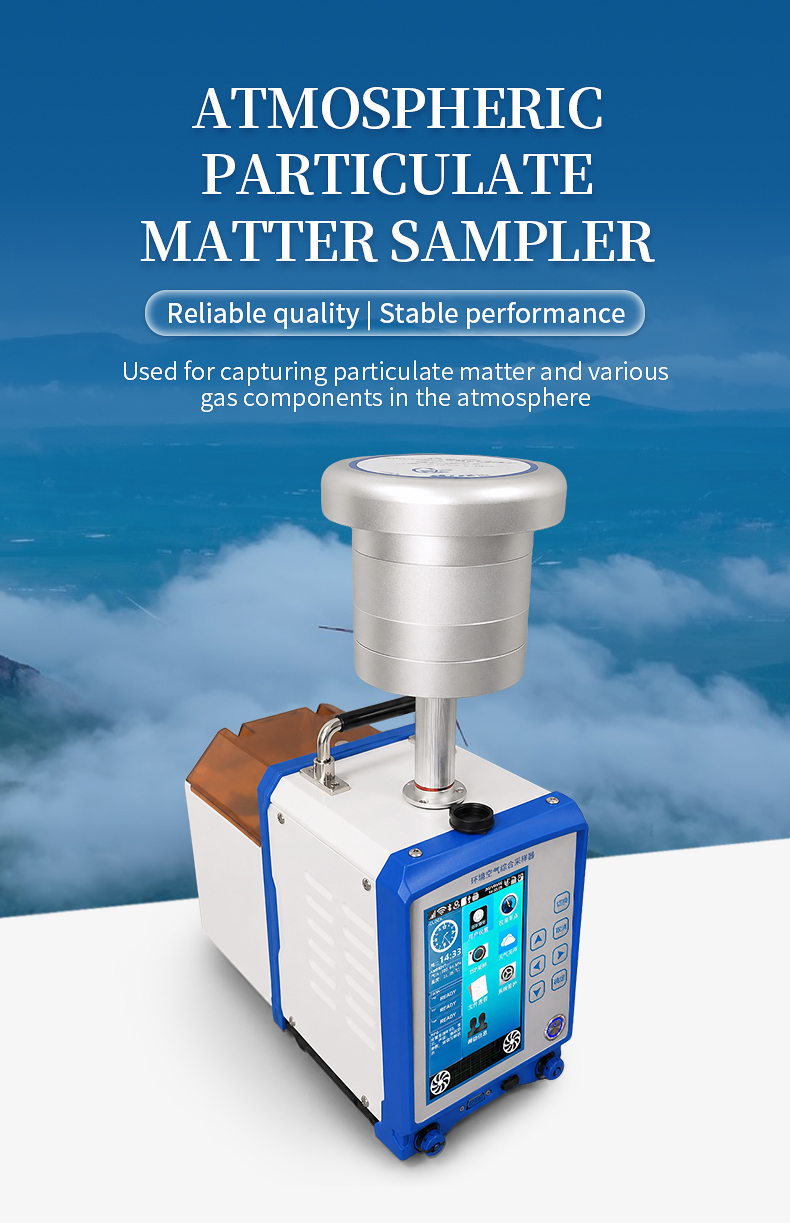

When environmental emergencies strike — industrial dust releases, wildfire smoke events, construction dust complaints, or chemical spill incidents — response teams need monitoring equipment that deploys in minutes, not hours. The HM-H4 particulate air sampler from HM Instruments is purpose-built for exactly these scenarios. By eliminating gaseous sampling channels entirely, the instrument achieves a streamlined setup that gets operators collecting TSP, PM10, and PM2.5 samples faster than any multi-channel alternative. At just 4.0 kg with compact 165×330×275 mm dimensions, it fits easily into emergency response vehicles and can be hand-carried to remote or difficult-to-access monitoring sites.

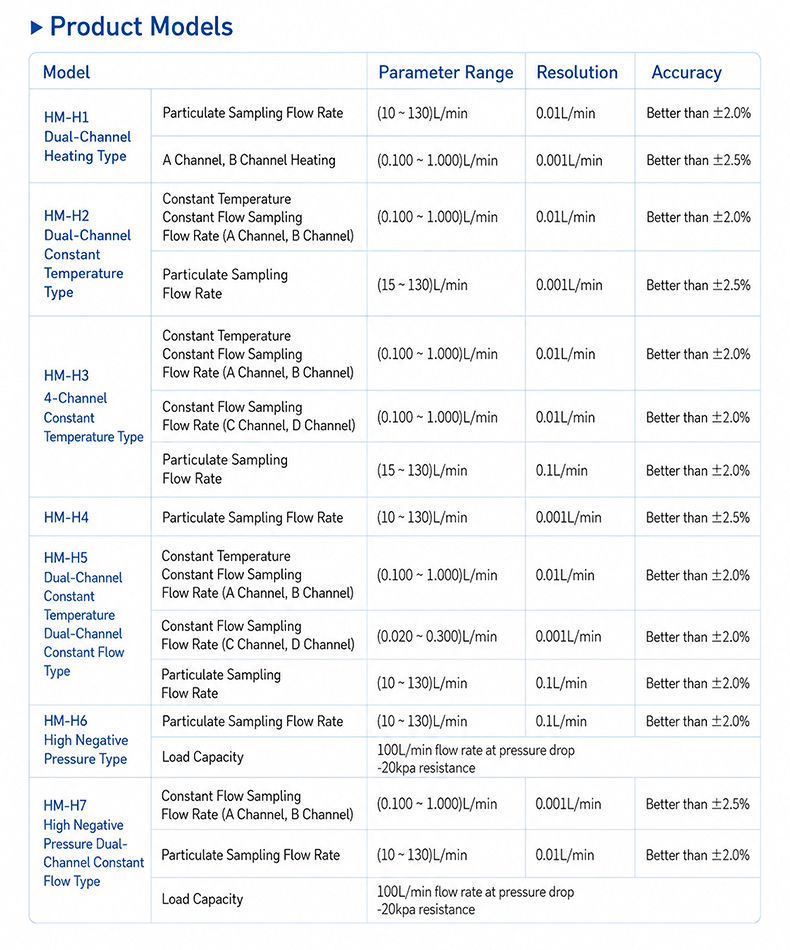

The HM-H4 delivers a particulate sampling flow range of 10–130 L/min with accuracy better than ±2.5%, ensuring that even in the urgency of emergency deployment, the collected data meets professional-grade quality standards. Flow stability better than ±2.0% guarantees consistent sample volume throughout the entire monitoring period, while the automatic pre-gauge pressure and atmospheric pressure measurement system calculates standard-condition volumes in real time — essential for comparing results across different deployment sites and altitudes. The sampling timer, accurate to better than ±0.2%, supports flexible time-weighted average (TWA) assessments ranging from 1-minute spot checks to 99-hour extended campaigns.

Perhaps most critically for emergency operations, the HM-H4 features robust power failure data protection. When field power supply is interrupted — a common occurrence at incident sites — all sampling data is automatically preserved and sampling resumes without data loss once power is restored. The dual power supply design accepts AC220V±10% 50Hz mains or DC29.4V/5A external battery, providing operational flexibility where grid power may be unreliable or unavailable. At $600, the HM-H4 enables response organizations to equip multiple teams with dedicated particulate monitoring capability without exceeding budget constraints, ensuring broader coverage during large-scale incidents.

Applications

• Emergency pollution incidents — Rapid TSP/PM10/PM2.5 assessment during industrial dust releases, chemical spills, and environmental accidents requiring immediate on-site data
• Wildfire smoke monitoring — Particulate level surveillance near wildfire-affected communities for public health protection and evacuation decision support
• Construction dust compliance — Rapid deployment at complaint-driven construction sites for regulatory dust level verification
• Industrial hygiene response — Workplace particulate exposure assessment during process upsets, maintenance events, or accident investigations
• Military and defense field monitoring — Portable particulate sampling at forward operating bases, training ranges, and deployment sites
• Community air quality events — Resident-requested monitoring during suspected air quality deterioration in residential areas
• Disaster response operations — Post-disaster particulate monitoring at natural disaster sites including volcanic ash, landslide dust, and demolition debris

Key Features & Advantages

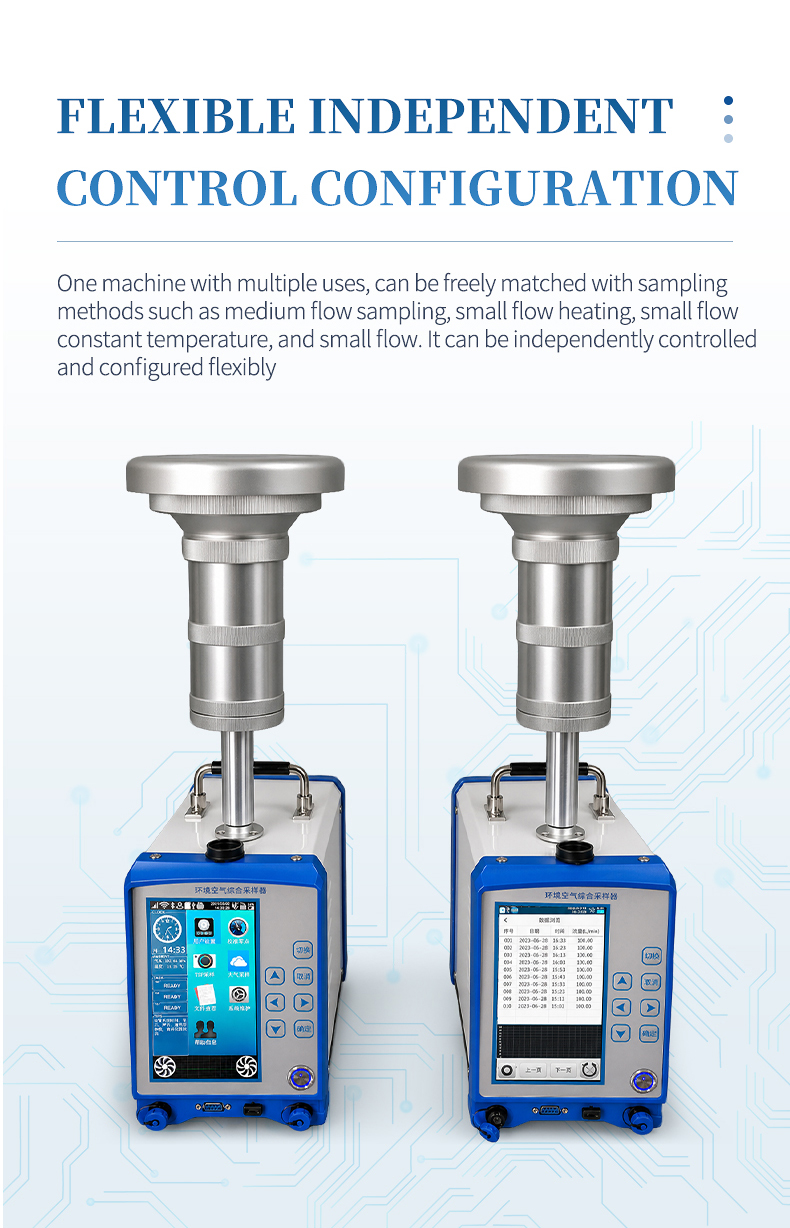

1. Dedicated particulate-only design eliminates gaseous channel setup, reducing deployment time to under 5 minutes for critical incident response.
2. Particulate flow range of 10–130 L/min with accuracy better than ±2.5% delivers compliance-grade measurements even under emergency conditions.
3. Flow stability better than ±2.0% ensures consistent sample collection throughout variable-weather field deployments.

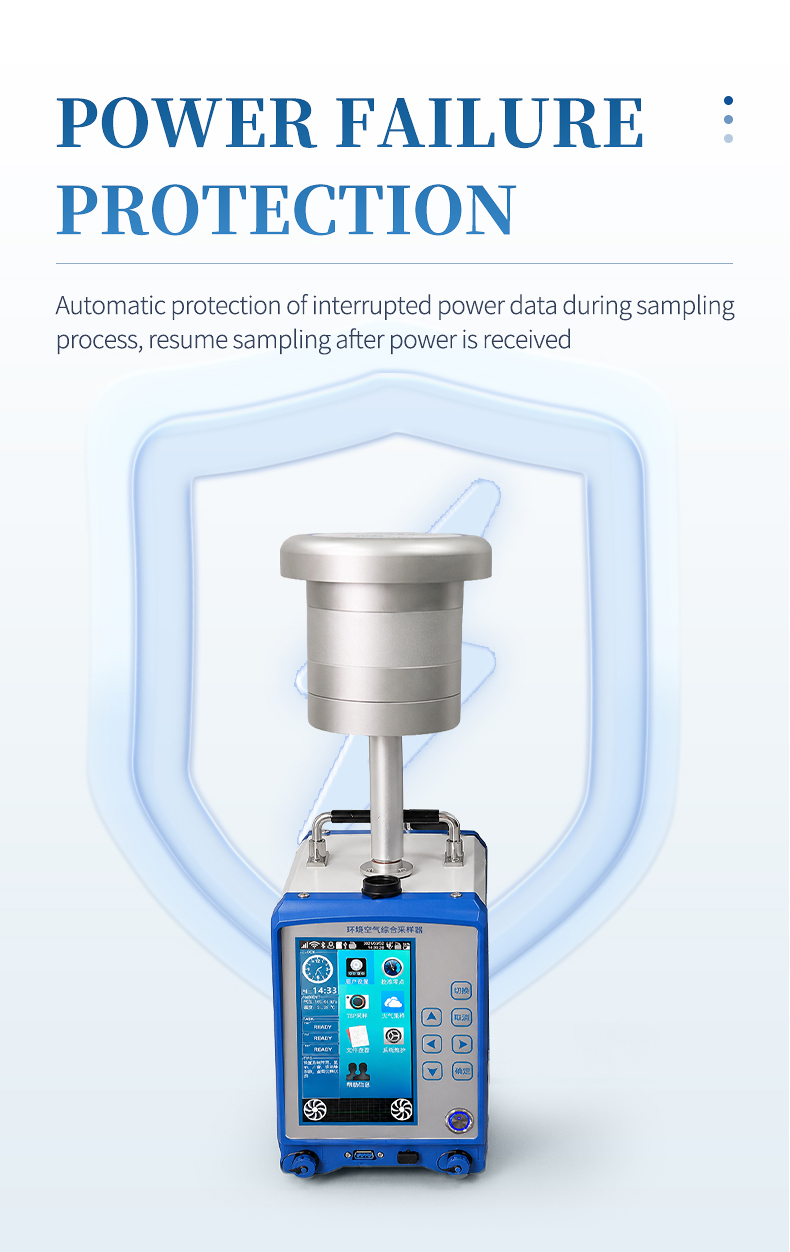

4. Power failure data protection with automatic resume safeguards all sampling data when field power supply is interrupted — critical for incident site reliability.
5. Dual power supply (AC220V±10% 50Hz or DC29.4V/5A) provides operational flexibility where grid power is unstable or unavailable.

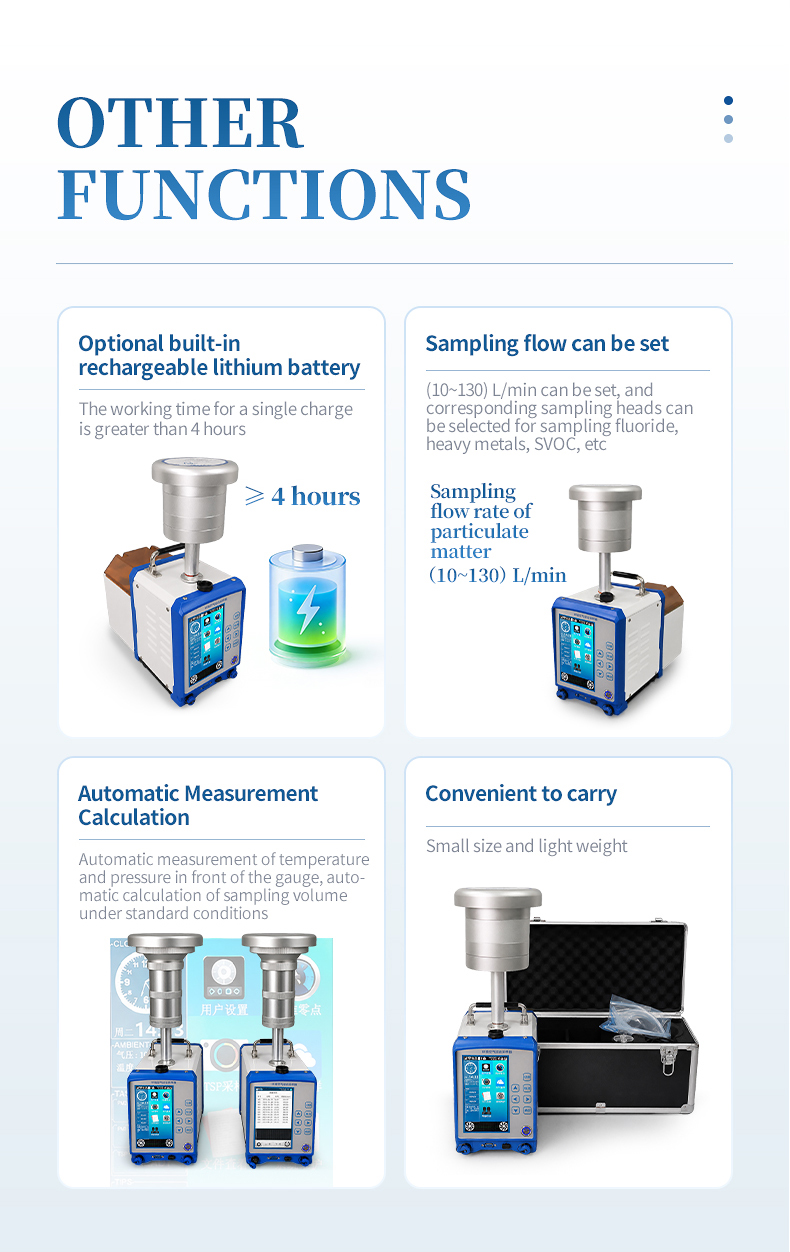

6. Compact 165×330×275 mm dimensions and approximately 4.0 kg weight enable single-person transport to remote or difficult-access monitoring sites.
7. Automatic pre-gauge pressure and atmospheric pressure measurement with real-time standard-condition volume calculation ensures data comparability across different deployment locations.
8. Sampling time range from 1 minute to 99 hours 59 minutes with accuracy better than ±0.2% supports both quick spot-checks and extended surveillance campaigns.
9. Low noise operation below 60 dB(A) permits monitoring in residential neighborhoods and institutional environments without disturbance complaints.
10. Power consumption below 100W enables extended operation from portable generators or vehicle power inverters during field deployments.

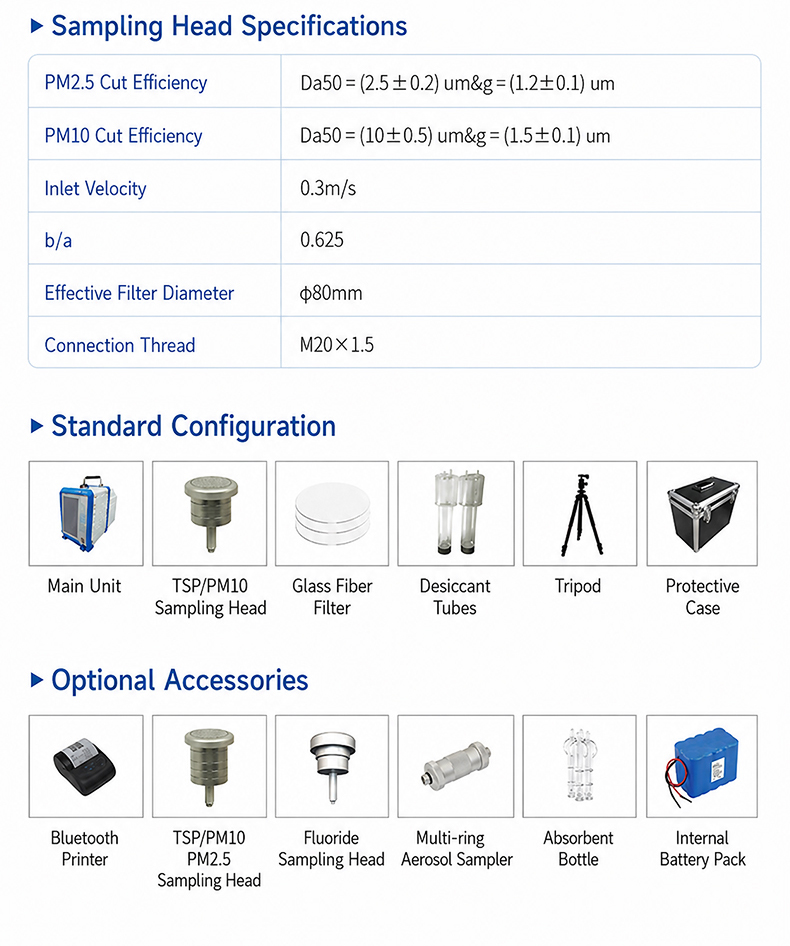

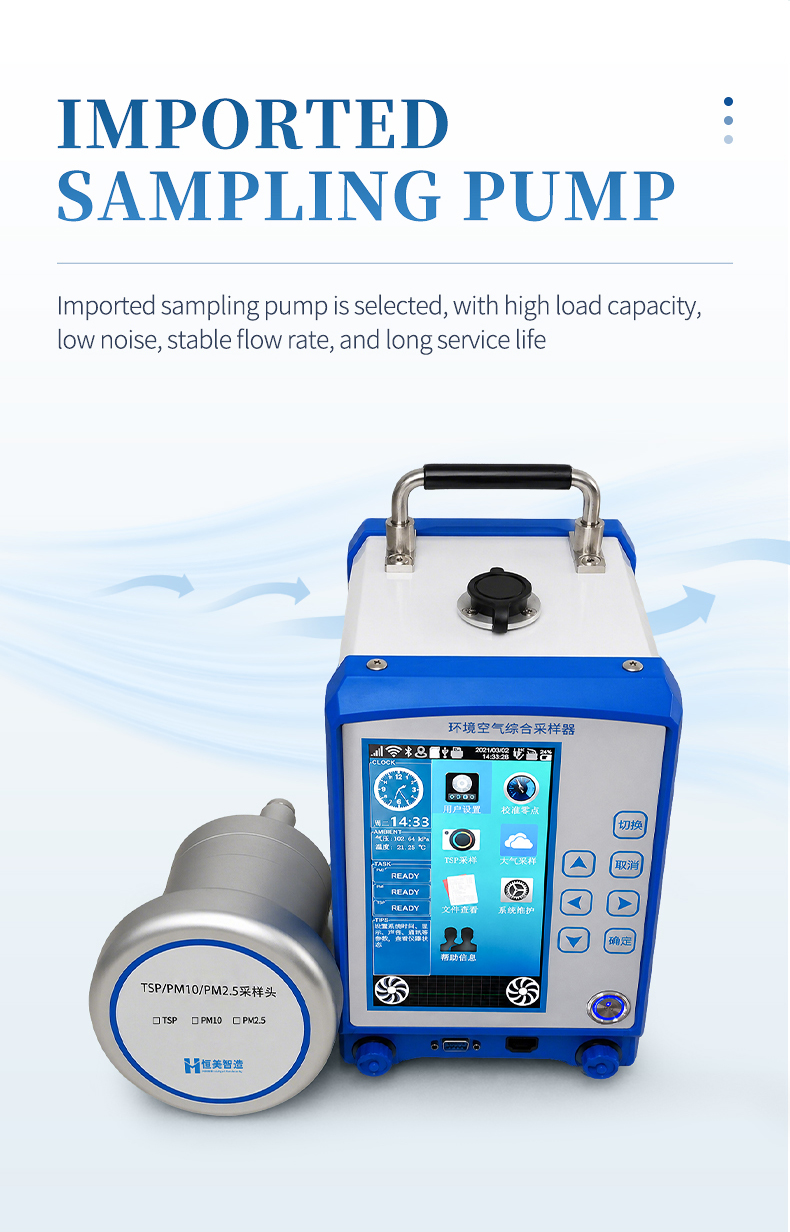

11. TSP, PM10, and PM2.5 cutting heads included for immediate multi-fraction particulate monitoring upon deployment.
12. At $600, enables organizations to equip multiple response teams for broader incident coverage within budget constraints.

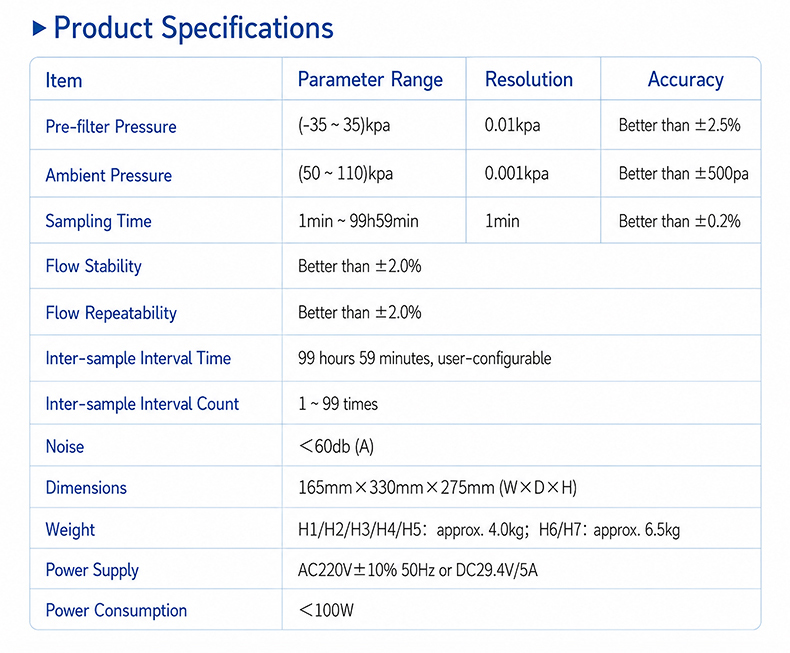

Technical Specifications

FAQ
