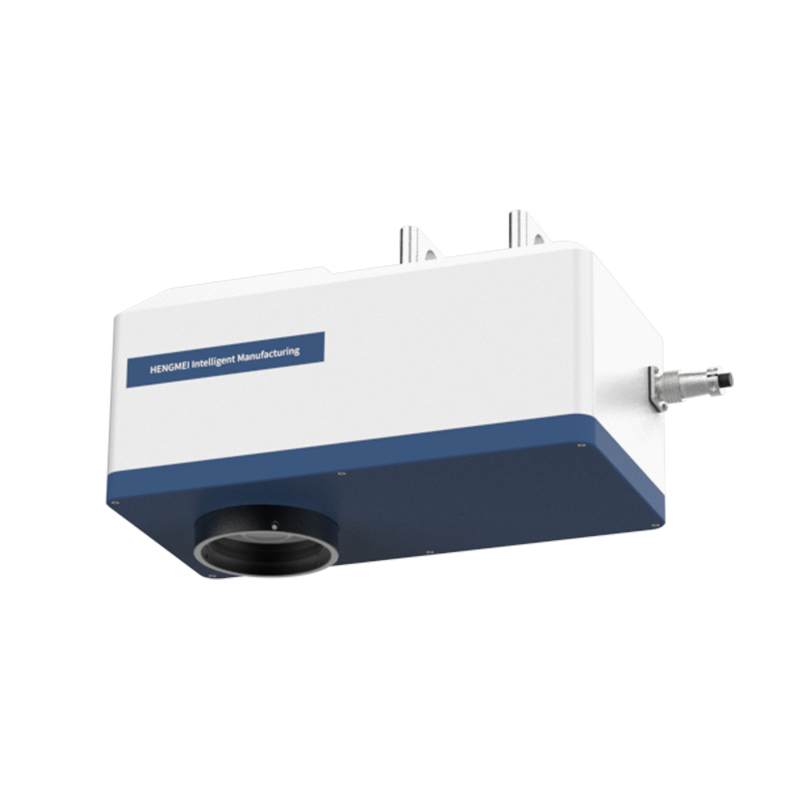

HM-ZHS Online Near-Infrared Moisture Analyzer

【Introduction】The HM-ZHS features a dual-detector measurement scheme with 7-band 14-optical-path design, delivering ±0.5% accuracy across a 0–60% moisture range. Its non-contact, non-destructive near-infrared analysis with Android 10 system and IP65-rated probe enables continuous online moisture monitoring for industrial production lines.

Product model: HM-ZHS

+86 17853698681

Product details
Detail image
Related products
Related articles

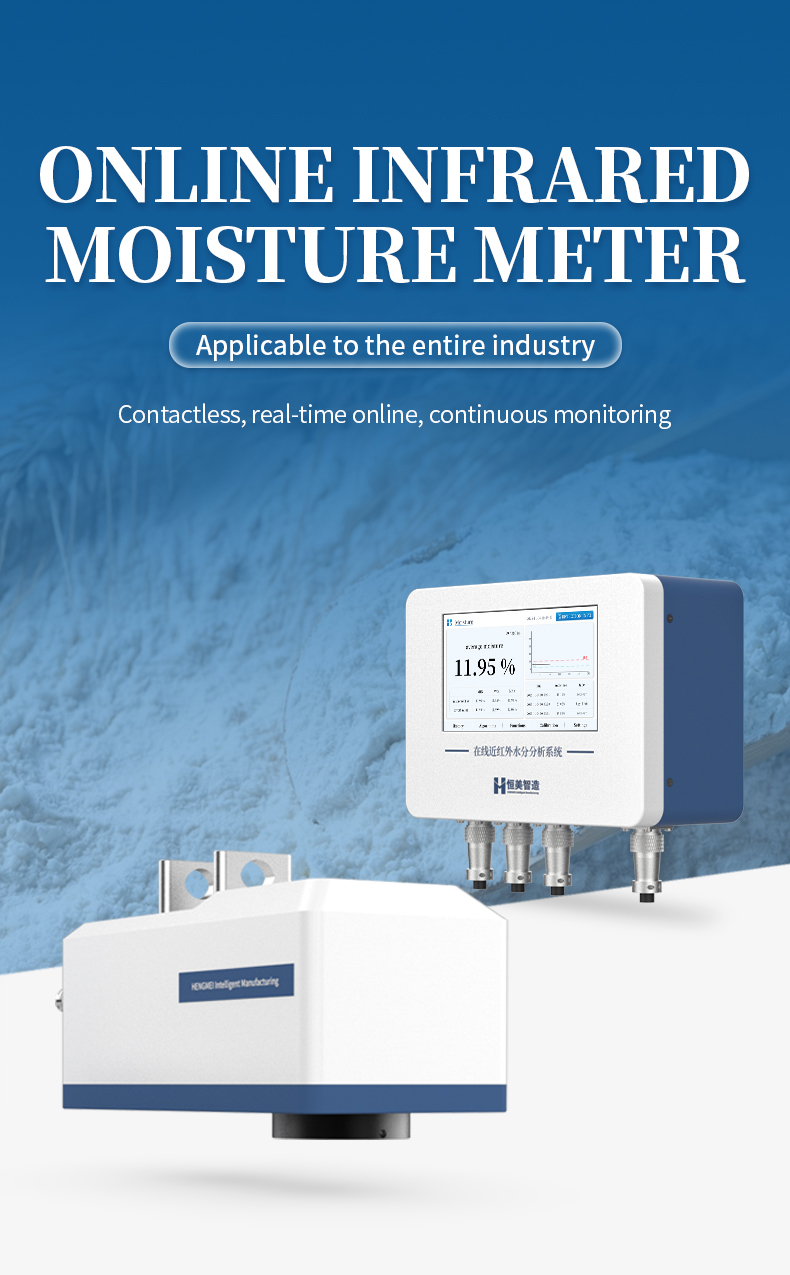

HM-ZHS online NIR moisture analyzer with white host unit blue probe sensor and touchscreen display

Nine core features grid showing Android system dual detector and seven-band optical design icons

Nine industry application icons covering food textile paper wood building pharma feed chemical and environmental sectors

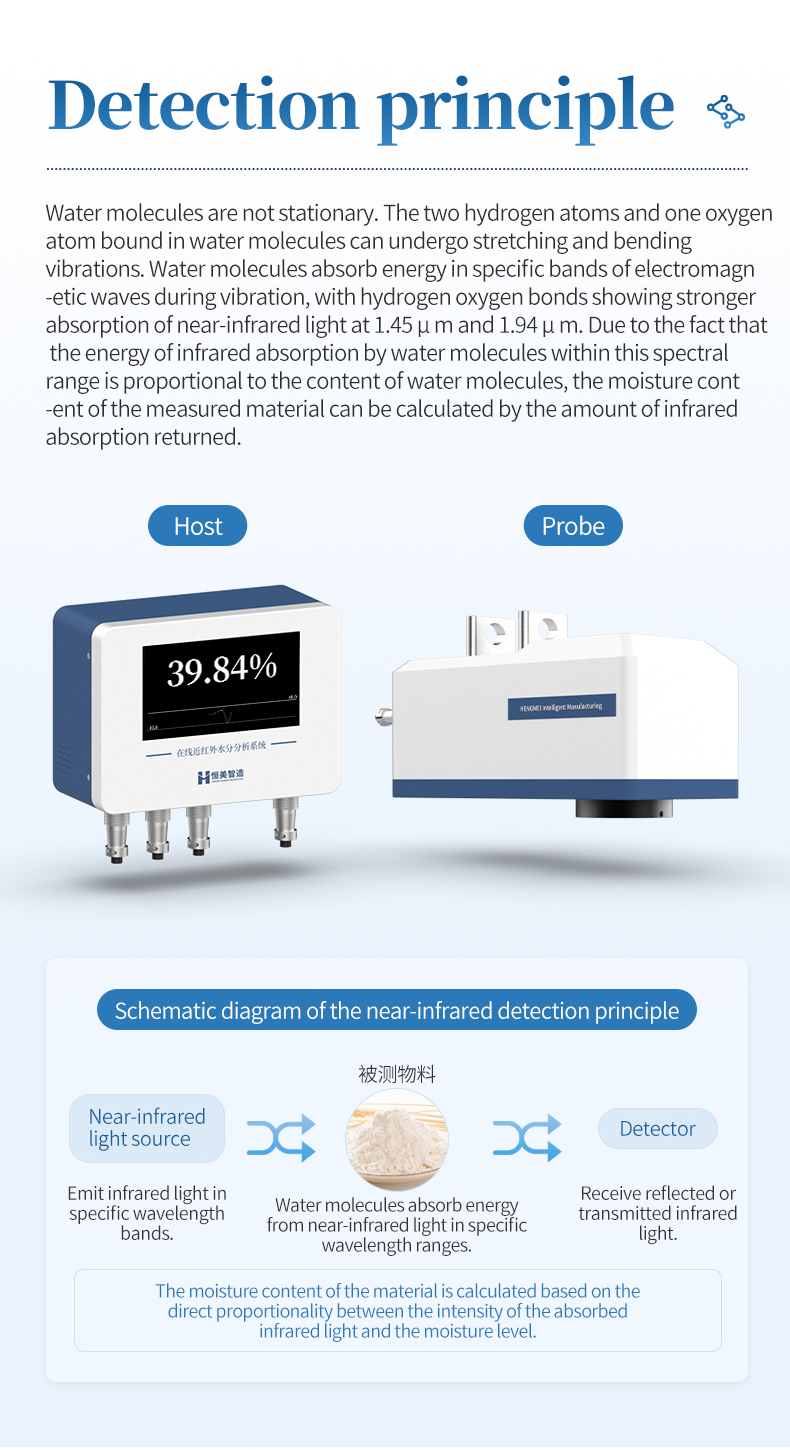

NIR moisture detection principle diagram showing light source material interaction and detector signal path

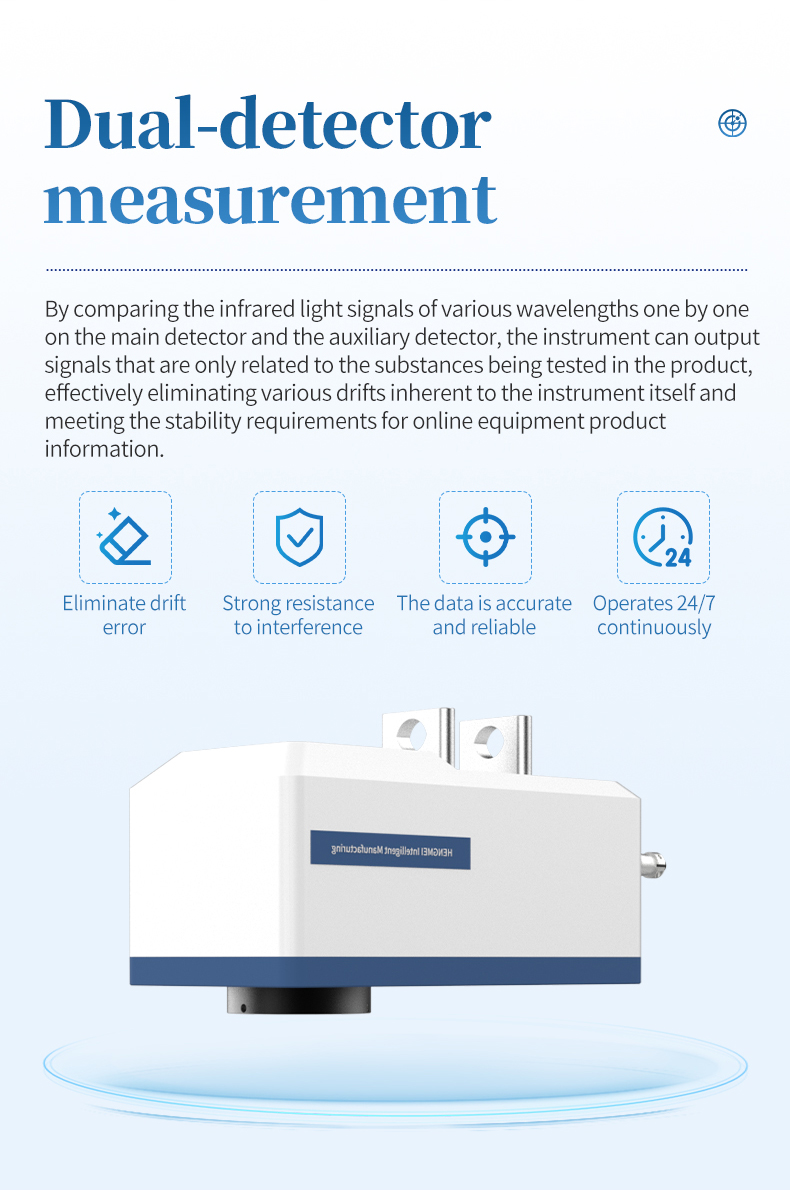

White probe sensor close-up with four advantage icons for drift elimination interference resistance and continuous operation

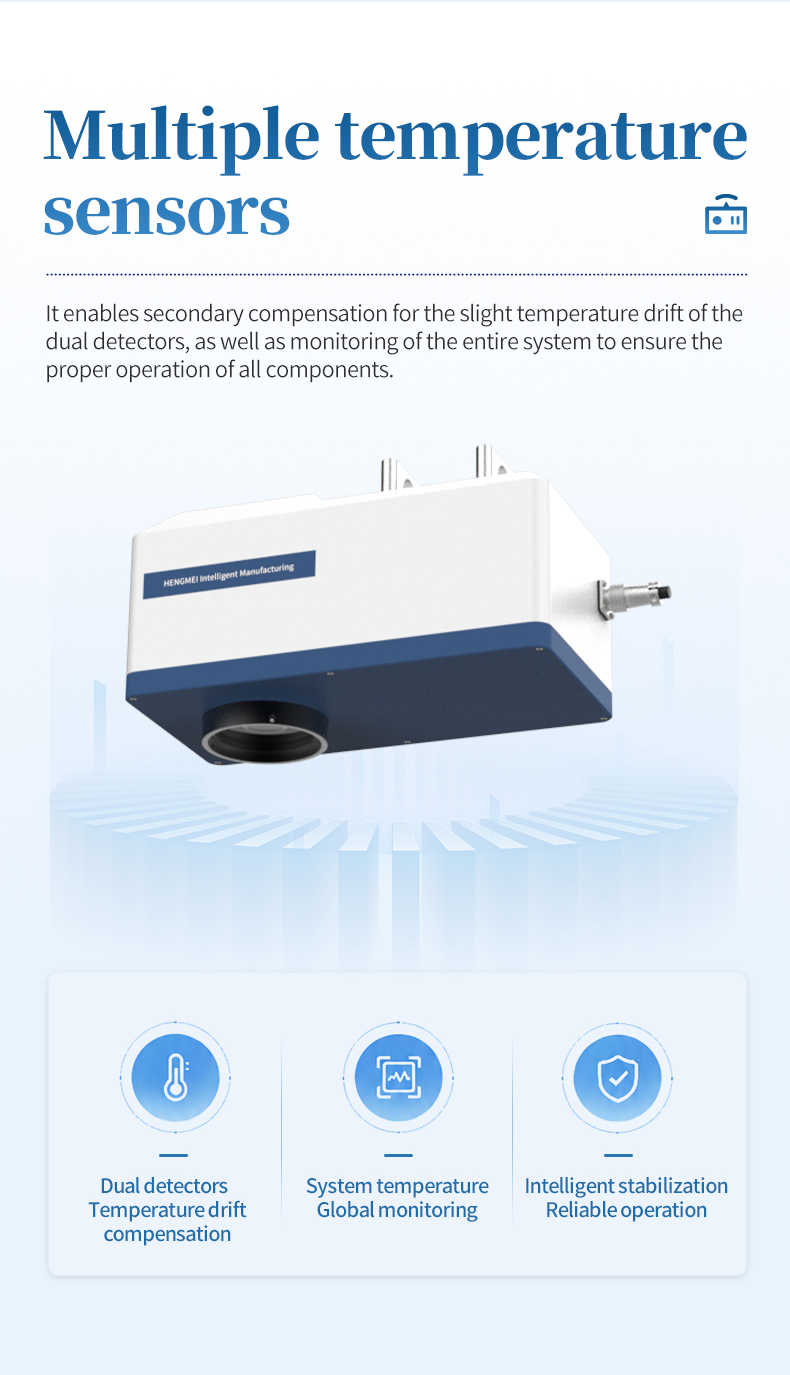

Probe device with temperature sensor functions showing dual detector compensation and system monitoring capabilities

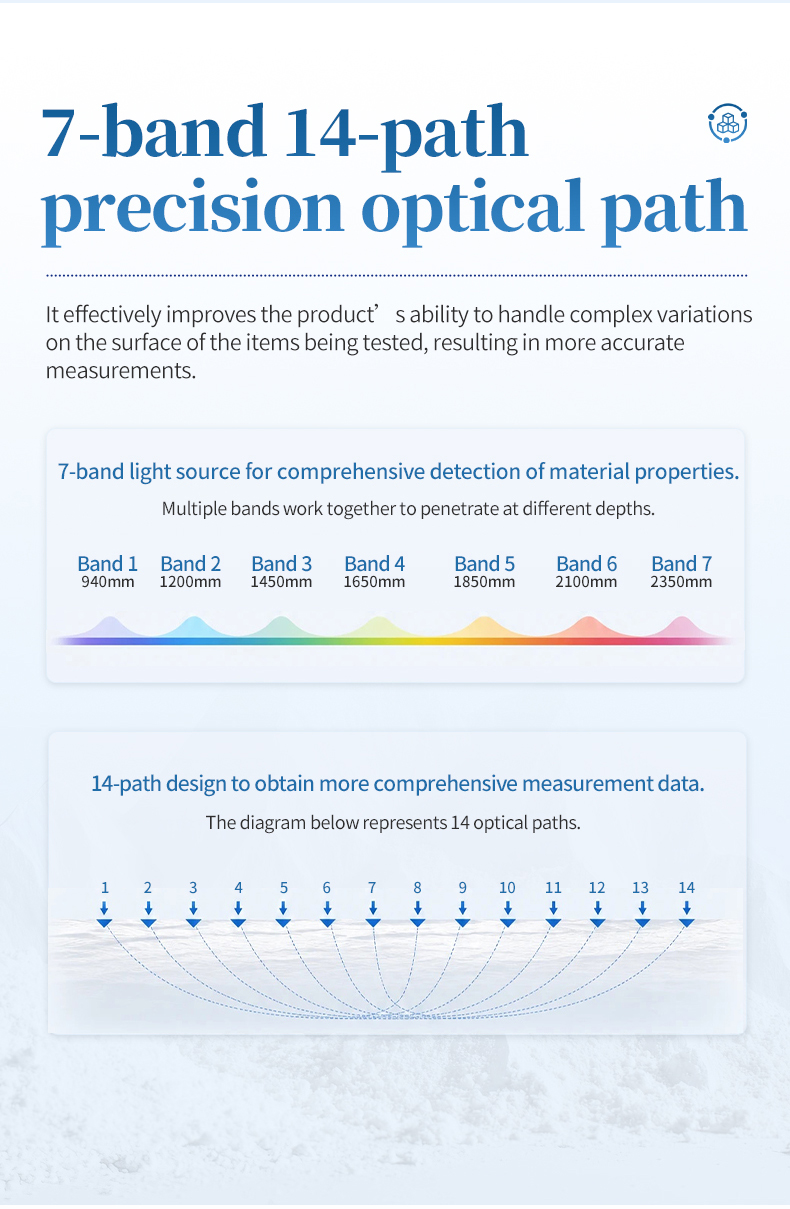

Seven spectral band waveform graph from 940 to 2350 nm with fourteen optical path convergence schematic

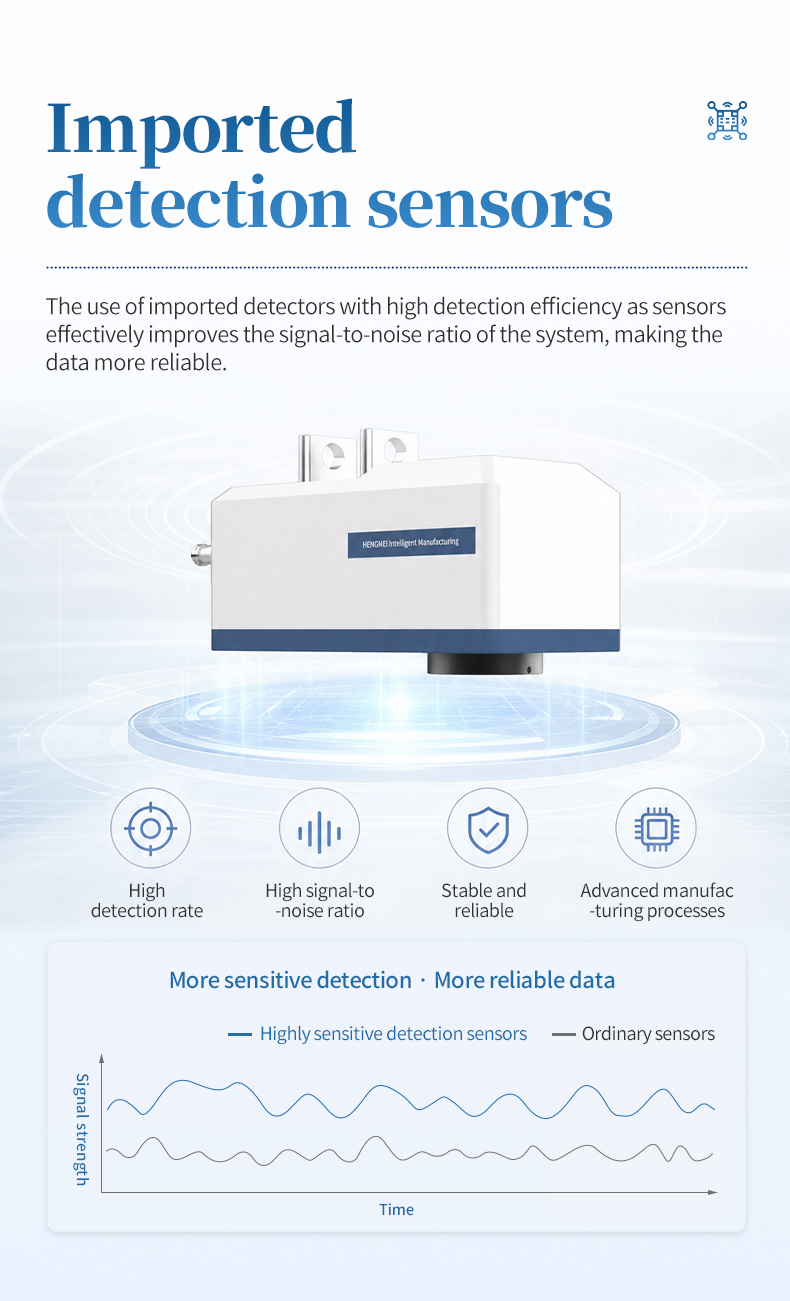

Imported high-detectivity sensor probe with signal-to-noise comparison chart and four performance advantages

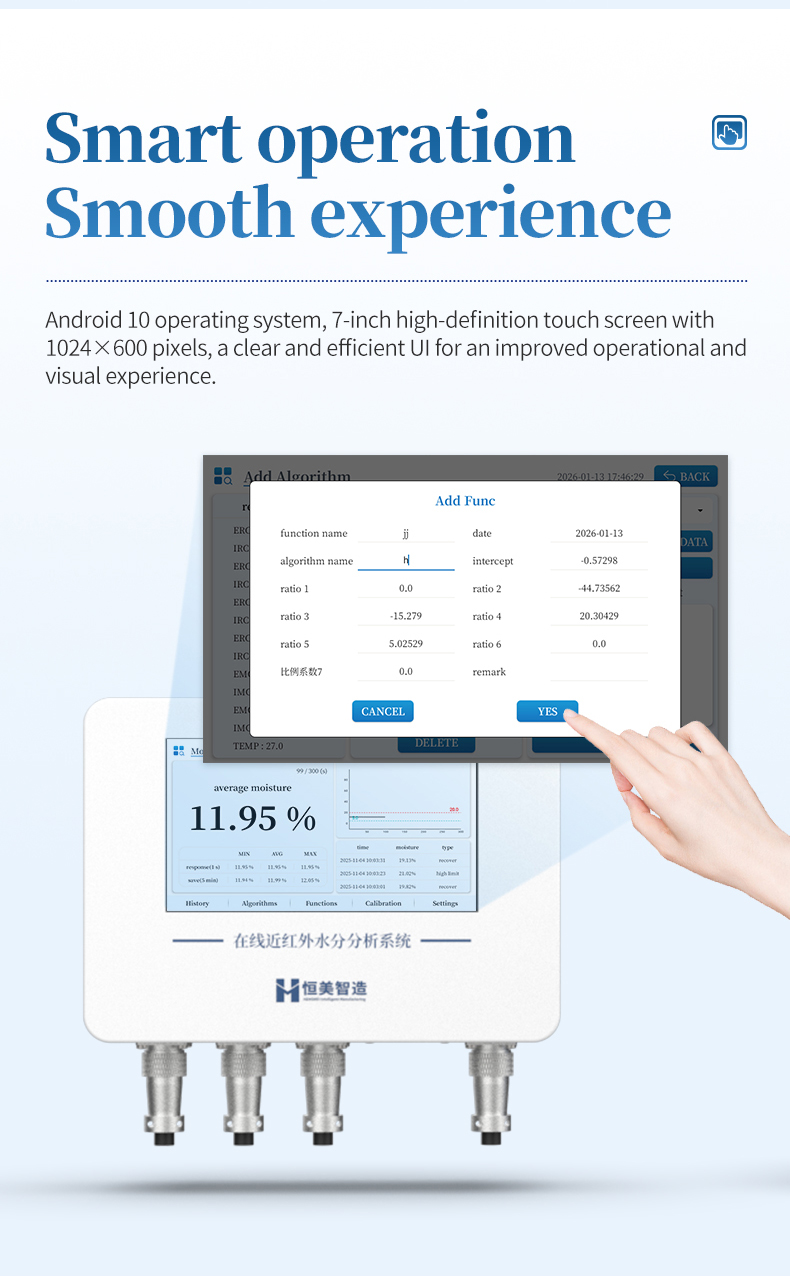

Android 10 touchscreen interface displaying algorithm parameter settings dialog on seven-inch display

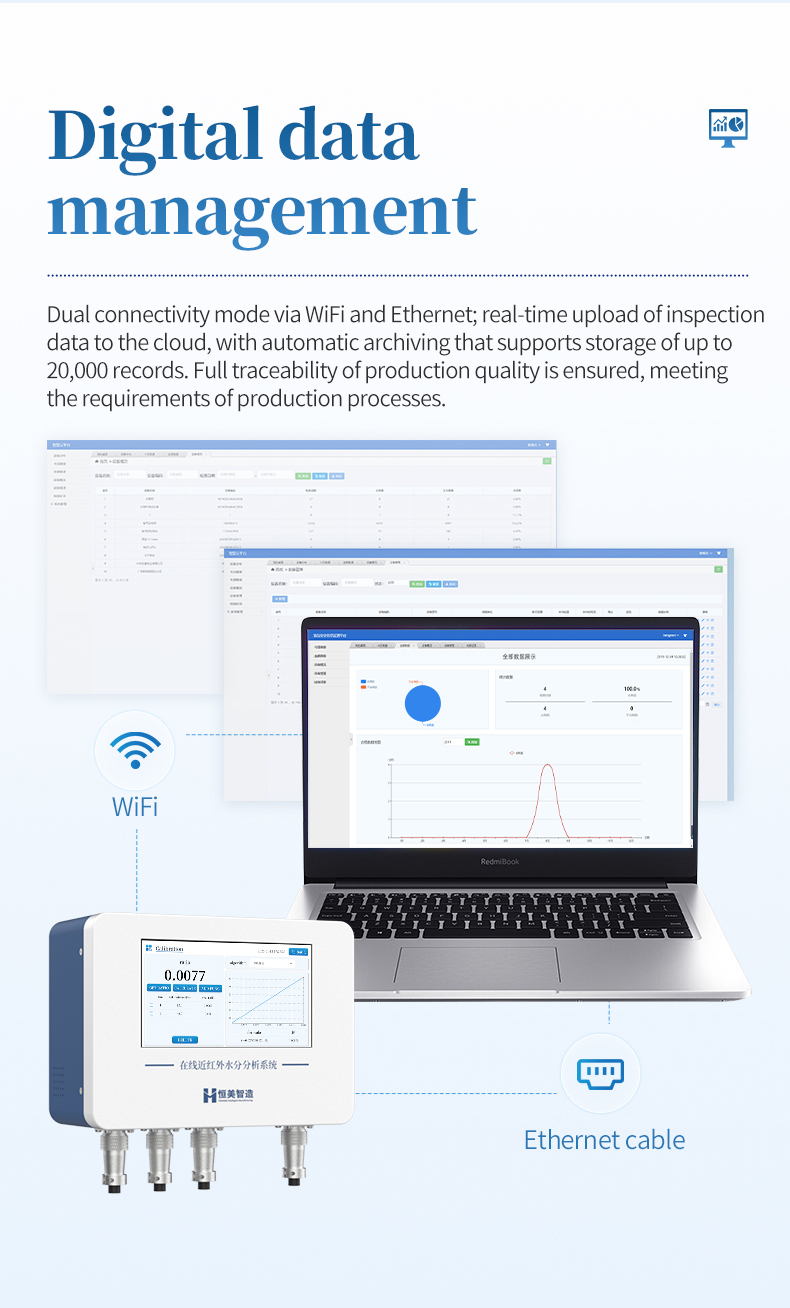

Wi-Fi and Ethernet dual-mode connectivity with laptop showing cloud data management dashboard interface

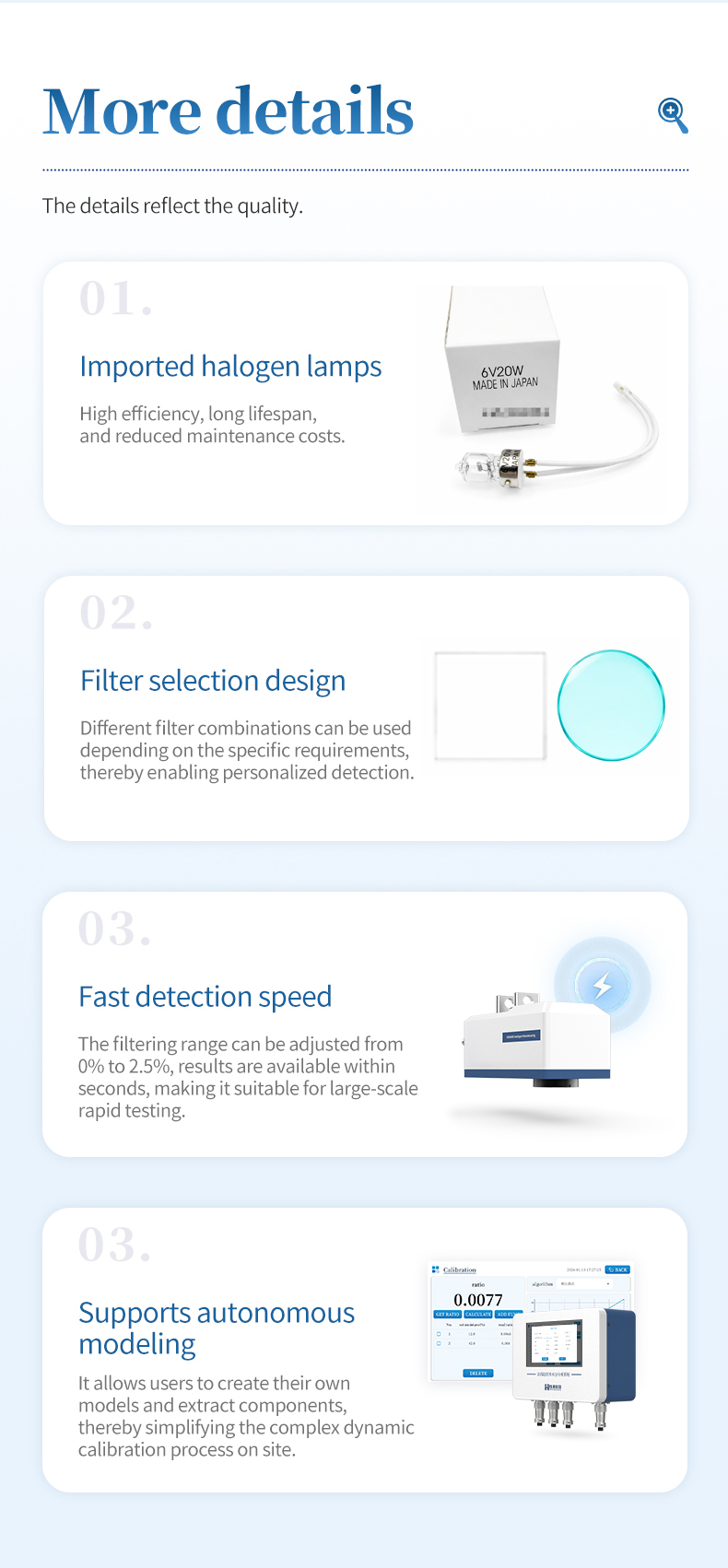

Four feature cards showing halogen lamp filter design rapid detection and self-modeling capabilities

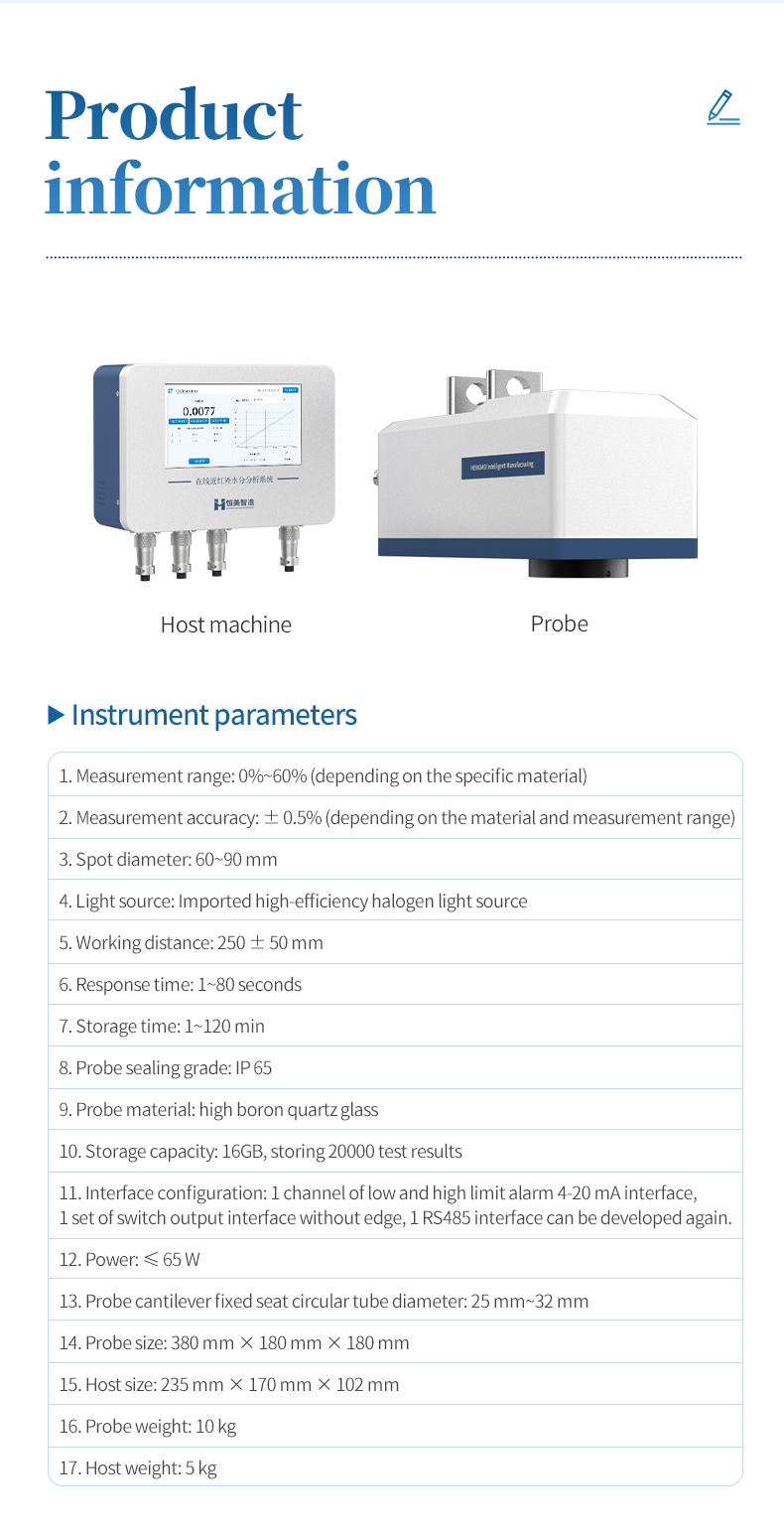

Host and probe product photo with seventeen complete technical specification parameters listed

HM Instruments engineering team group photo with company introduction and service overview

Laboratory scene with researchers conducting food moisture testing using NIR analyzer equipment

Product Introduction

The HM-ZHS is an online near-infrared moisture analyzer designed for real-time, non-contact, and non-destructive moisture measurement on industrial production lines. Utilizing the near-infrared absorption spectroscopy principle — where water molecules absorb infrared light at 1.45 μm and 1.94 μm wavelengths — the instrument converts optical signals into moisture percentage readings through photoelectric sensors and spectral data processing. It is suitable for continuous monitoring of moisture content in bulk materials on conveyor belts and process lines.

The system runs on an Android 10 operating system with a 7-inch 1024 × 600 touchscreen, providing intuitive operation and data visualization. With dual detectors, 7 spectral bands, and 14 optical paths, the HM-ZHS delivers stable and accurate measurements even under varying surface conditions. Data can be uploaded via Wi-Fi or Ethernet to a cloud management platform, supporting quality control and process optimization. Learn more about how NIR moisture analysis improves production efficiency in our industry application guide for NIR moisture analyzers.

Applications

Food and food processing: starch, flour, protein powder, milk powder, tomato powder, sugar, salt, MSG, tea, food additives
Textile industry: fabric and cloth moisture measurement
Paper industry: paperboard, paper, packaging paper
Wood industry: sawdust, wooden boards
Building materials and minerals: cement, concrete, mineral sand
Pharmaceutical industry: pharmaceutical granules and powders
Animal feed industry: feed pellets and grain powders
Chemical industry: chemical raw material powders, granules, fertilizers, detergent powder

Functional Performance / Features

Android 10 operating system with 7-inch 1024 × 600 high-definition touchscreen for intuitive interaction
Dual-detector measurement scheme that eliminates instrument drift by comparing infrared signals between primary and secondary detectors
Multiple onboard temperature sensors providing dual-detector thermal drift compensation and system-wide monitoring
7-band 14-optical-path design improving measurement tolerance for complex surface variations on target materials
High-quality imported halogen light source with high efficiency and extended service life
Interchangeable filter design allowing customized wavelength combinations for specific material requirements
Imported high-detectivity sensor with improved signal-to-noise ratio for confident measurement results
Rapid detection response with configurable filter range from 0% to 2.5%, completing single measurements within seconds
User-defined modeling and component extraction functions simplifying on-site dynamic calibration
Wi-Fi and Ethernet connectivity for data upload to cloud management platform
16 GB storage capacity with up to 20,000 measurement records
IP65-rated probe with high-boron quartz glass material for harsh industrial environments

Main Parameters

Parameter	Specification
Measurement Range	0% ~ 60% (material-dependent)
Accuracy	±0.5% (depends on material and range)
Measurement Principle	Near-infrared absorption spectroscopy
Operating System	Android 10, 7-inch 1024 × 600 touchscreen
Probe Protection Rating	IP65
Working Distance	250 ± 50 mm
Light Source	Imported high-efficiency halogen lamp
Storage Capacity	16 GB, 20,000 records

Technical Parameters

Parameter	Specification
Measurement Range	0% ~ 60% (material-dependent)
Measurement Accuracy	±0.5% (depends on material and range)
Spot Diameter	60 ~ 90 mm
Light Source	Imported high-efficiency halogen lamp
Working Distance	250 ± 50 mm
Response Time	1 ~ 80 s
Storage Time	1 ~ 120 min
Probe Sealing Rating	IP65
Probe Material	High-boron quartz glass
Storage Capacity	16 GB, up to 20,000 measurement records
Interfaces	1 channel low/high limit alarm 4-20 mA, 1 group passive switch output, 1 channel RS485 (secondary development supported)
Power Consumption	≤ 65 W
Probe Mounting Bracket Pipe Diameter	25 ~ 32 mm
Probe Dimensions	380 × 180 × 180 mm
Host Dimensions	235 × 170 × 102 mm
Probe Weight	10 kg
Host Weight	5 kg
