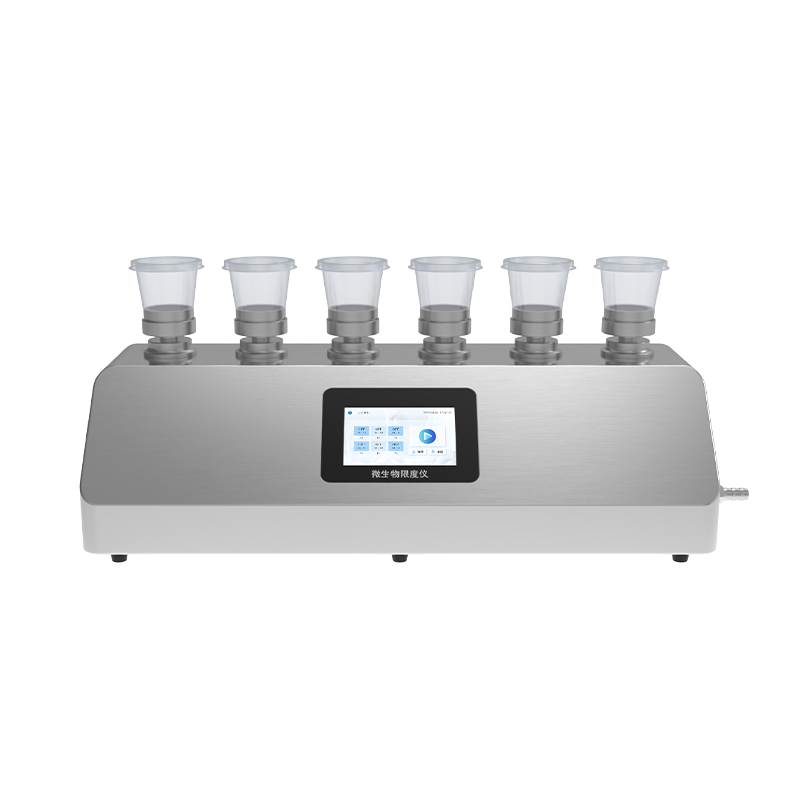

Multi-Station Microbial Analysis for Pharmaceutical Water Systems

Product Introduction

Pharmaceutical water system monitoring under GMP regulations demands two capabilities simultaneously: the throughput to test all required sampling points within a single work shift, and the documentation to prove that every test was performed under consistent, traceable conditions. Traditional mechanical filtration instruments address the throughput requirement but leave documentation to manual paper records. Digital three-channel instruments provide documentation capability but may not offer sufficient capacity for larger water distribution systems with 10 to 20 or more monitoring points.

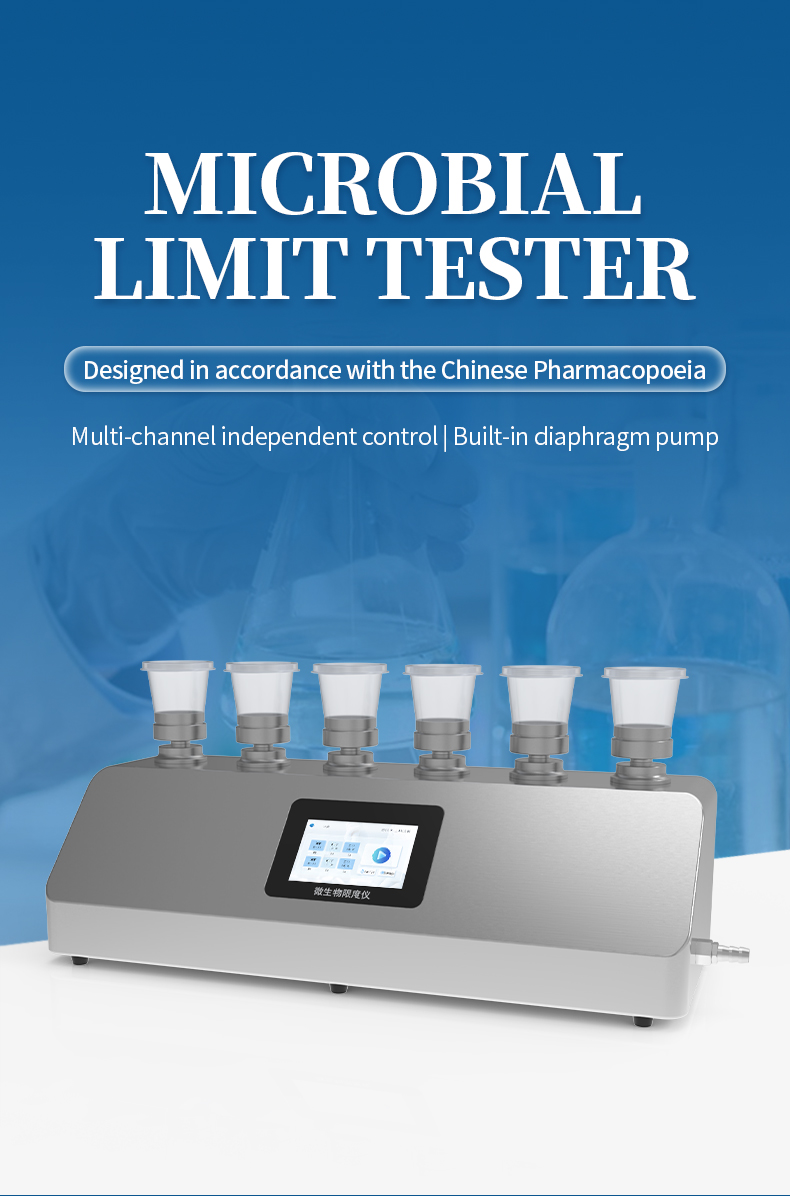

The HM-WX6G microbial limit analyzer from HM Instruments resolves this dual challenge by combining six-station parallel processing with comprehensive electronic documentation. Six independent diaphragm pumps — one per channel — ensure that vacuum pressure remains consistent across all stations regardless of how many are operating simultaneously. The 5-inch LCD touchscreen provides programmable timer control for each channel, eliminating the timing inconsistencies between operators that can compromise result reproducibility. Electronic parameter recording automatically captures the filtration time and settings for every test run, creating an auditable record that supports GMP documentation requirements without reliance on manual transcription. The anti-backflow protection mechanism and flame sterilization-compatible filter heads address the contamination control requirements critical in aseptic testing environments, while the L304 stainless steel shell and direct drainage design simplify surface disinfection and workflow management. For pharmaceutical quality control laboratories that must demonstrate both throughput and traceability during regulatory inspections, the HM-WX6G delivers the comprehensive capability that no mechanical or three-channel instrument can match.

Applications

• Pharmaceutical water system qualification — Six-station parallel filtration with documented parameters for PW and WFI system validation per ISPE and GMP guidelines

• Daily water system monitoring — High-volume routine testing of multiple distribution loop sampling points with electronic traceability per USP 1231 recommendations

• Drug product release testing — Microbial limit examination of liquid pharmaceutical preparations with comprehensive electronic records for batch release documentation

• Beverage and bottled water QC — Parallel microbiological analysis of multiple product batches with standardized timer-controlled filtration protocols

• Medical device production water — Multi-line production water microbial quality verification with recorded test conditions for regulatory submissions

• Cleanroom environmental monitoring — Timed filtration of surface and air samples with documented parameters for classified area qualification and ongoing surveillance

• Cosmetic manufacturing water testing — Microbial enumeration in cosmetic process water per ISO 17516 with electronic documentation of test conditions

Key Features & Advantages

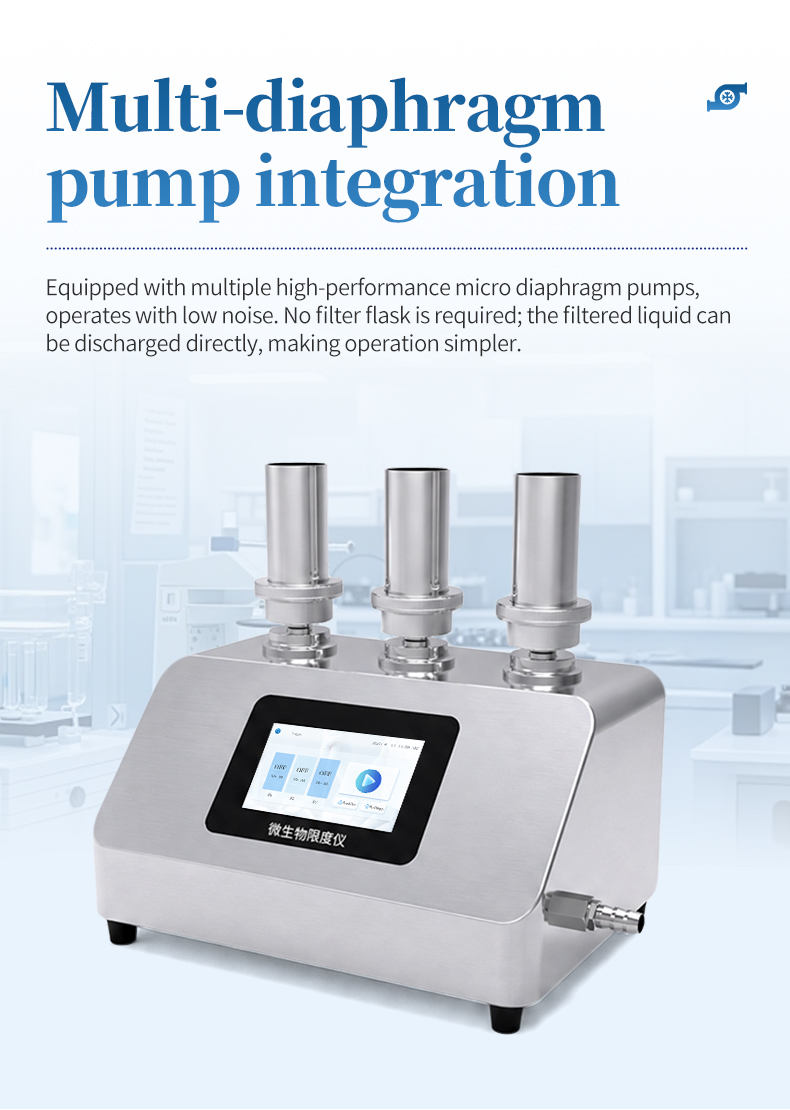

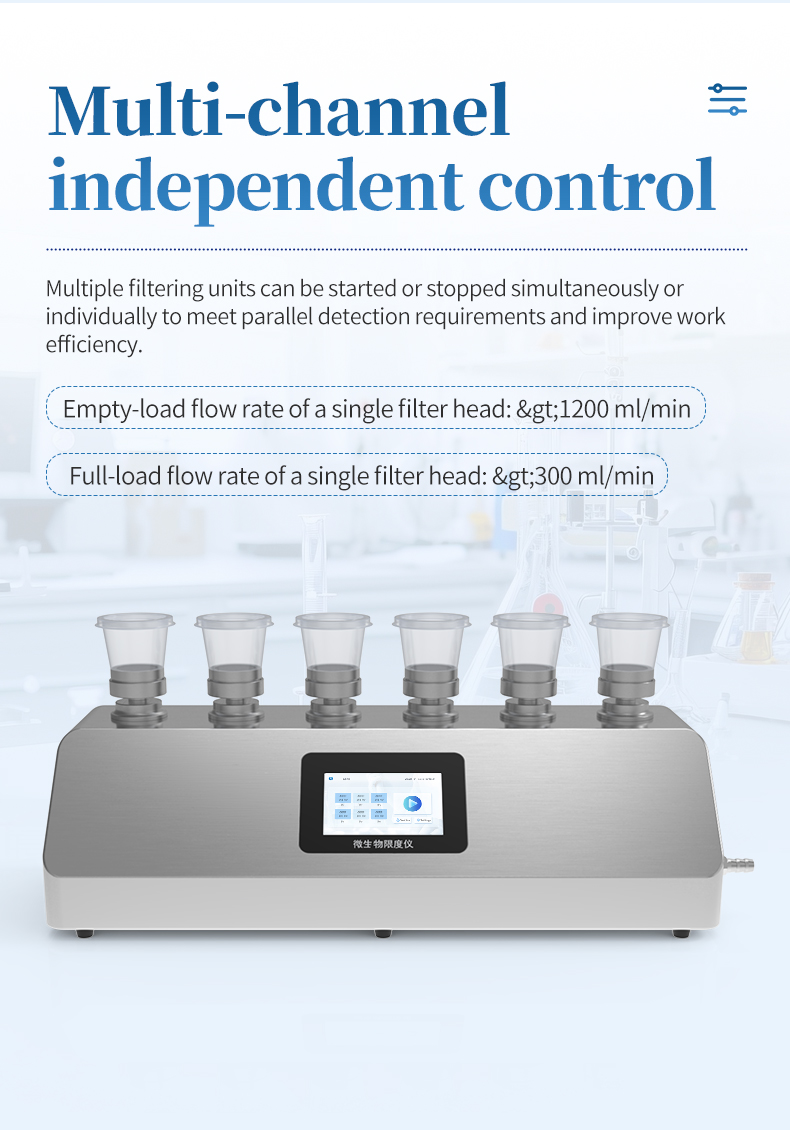

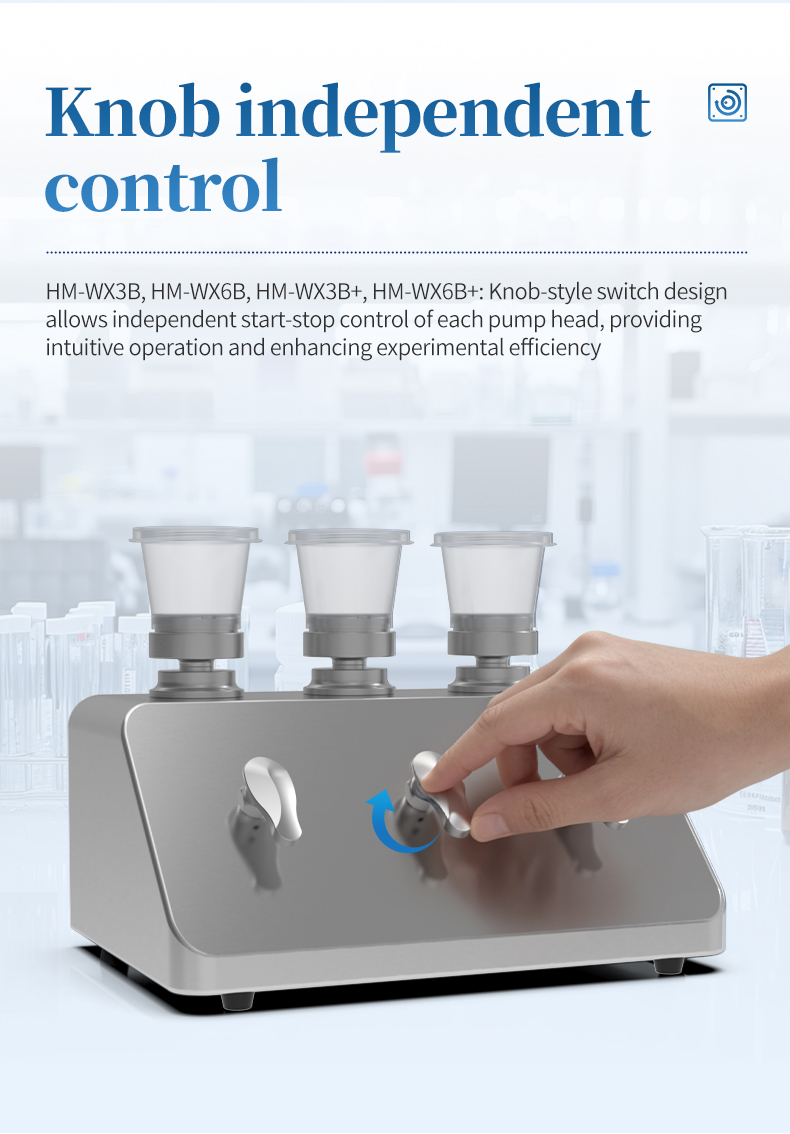

1. Six independent filtration channels with dedicated diaphragm pumps guarantee consistent vacuum pressure at every station during simultaneous operation.

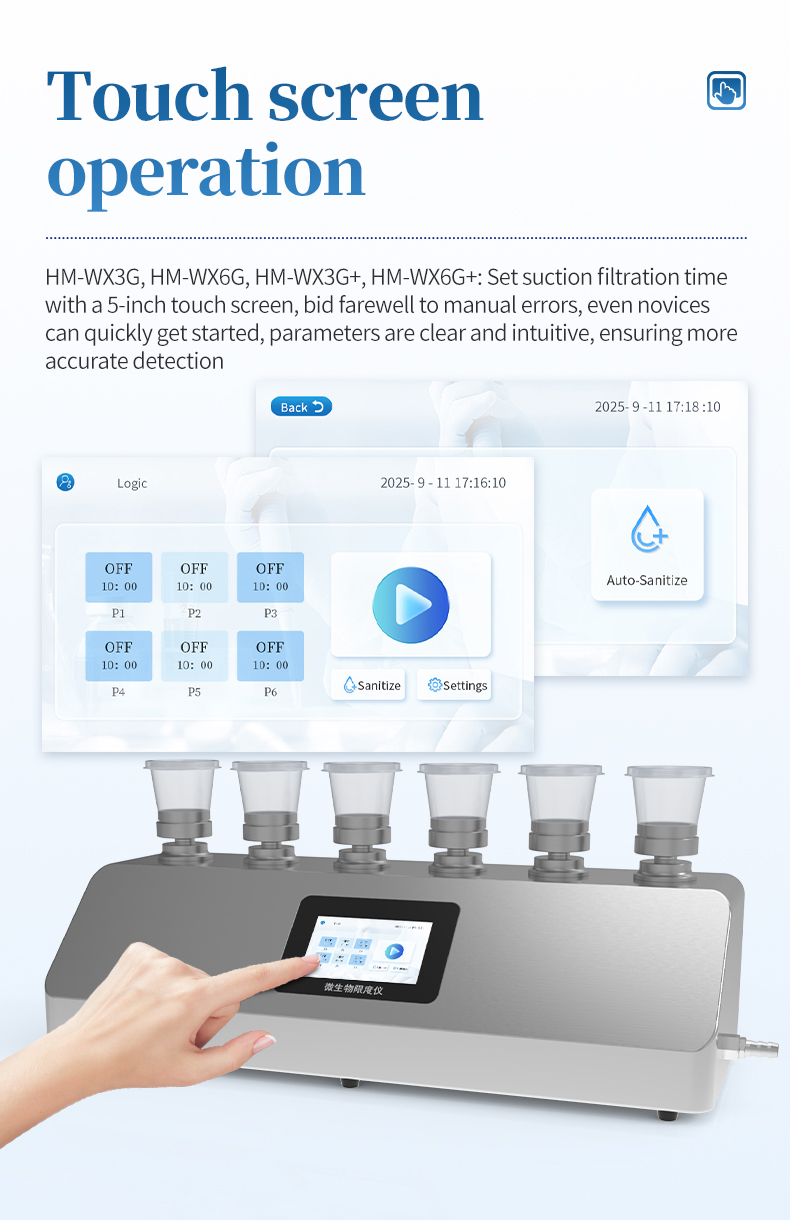

2. 5-inch LCD touchscreen provides centralized control for all six channels with real-time display and intuitive menu navigation.

3. Programmable timer for each channel ensures identical filtration duration across operators and shifts, supporting method reproducibility during regulatory audits.

4. Electronic parameter recording automatically captures filtration time and settings per run, creating traceable records that replace manual paper-based timing logs.

5. Six-station parallel processing enables testing of 10-20 water system sampling points within a single work shift without overtime.

6. Anti-backflow protection prevents liquid reverse flow, maintaining test integrity in GMP-regulated environments where result reliability is non-negotiable.

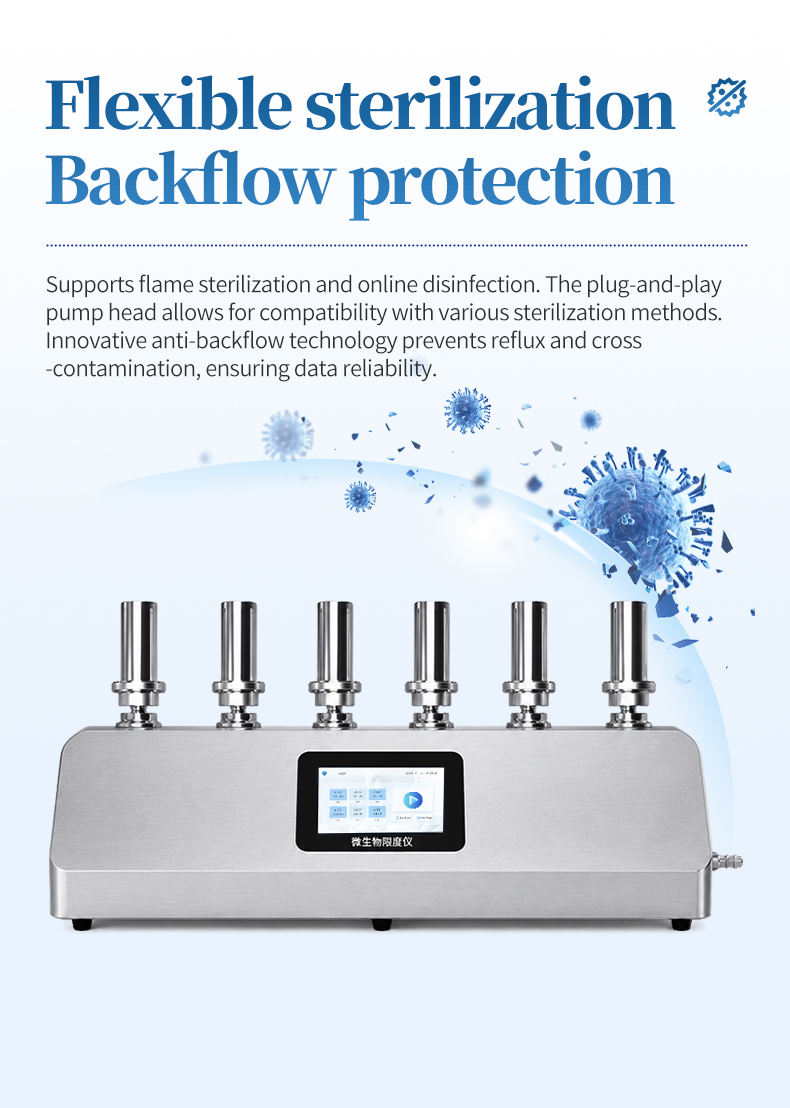

7. Flame sterilization-compatible filter heads allow rapid decontamination between consecutive test batches, supporting continuous aseptic workflow.

8. Plug-in pump head structure enables quick disassembly for cleaning and supports multiple sterilization methods including autoclave and flame.

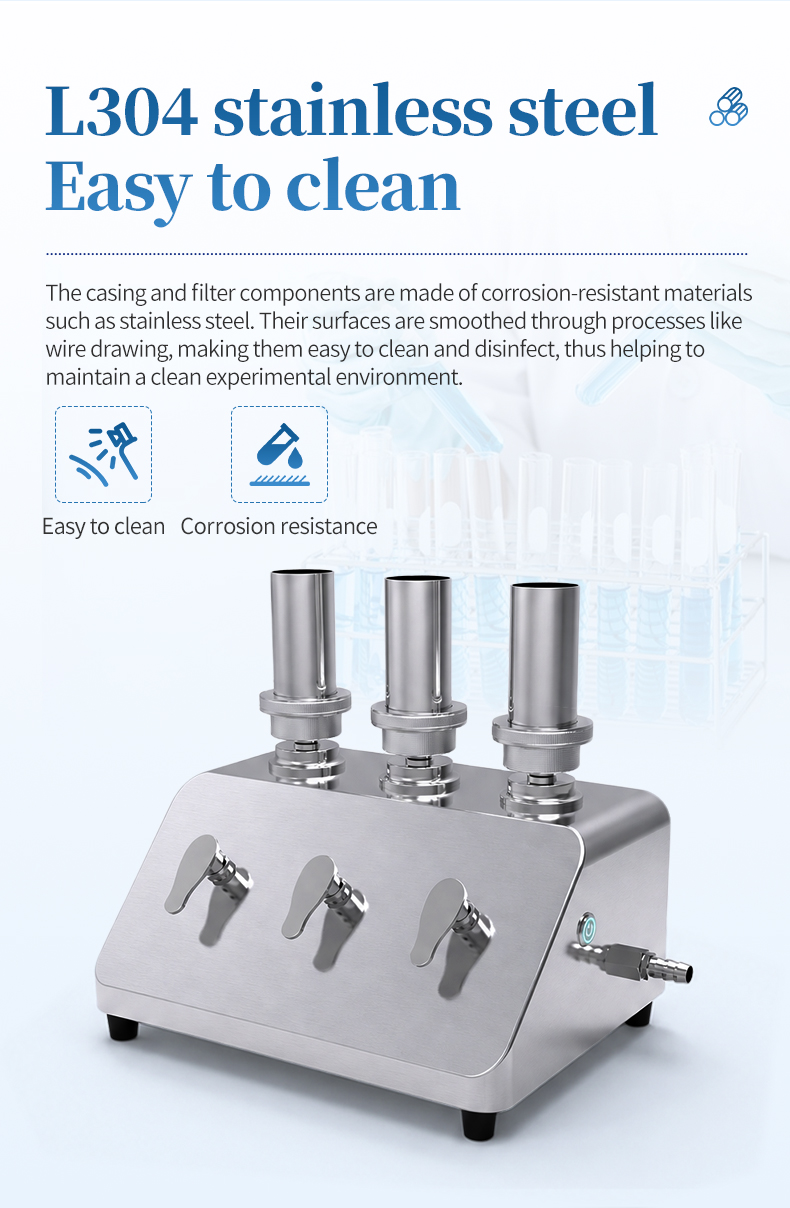

9. L304 stainless steel shell with brushed finish withstands repeated disinfection cycles with alcohol-based and quaternary ammonium compounds.

10. Direct drainage design eliminates filtrate collection bottles and their associated cleaning validation requirements, streamlining batch workflows.

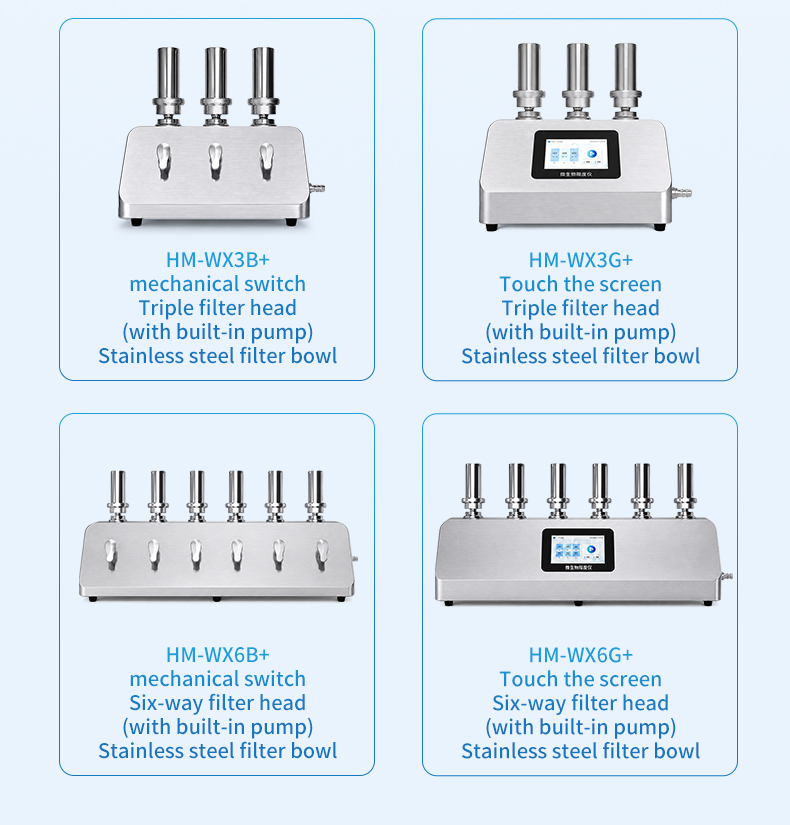

11. Compatible with disposable Ø47mm / 100 mL filter cups for single-use convenience, or reusable stainless steel filter cups for cost-effective high-volume applications.

12. 10W low power consumption reduces operating costs for continuous daily testing across six channels.

13. ISO 9001 certified quality management ensures consistent instrument performance and manufacturing traceability.

14. Nationwide 280-outlet service network provides 24-hour response for minimal testing downtime in pharmaceutical production environments.

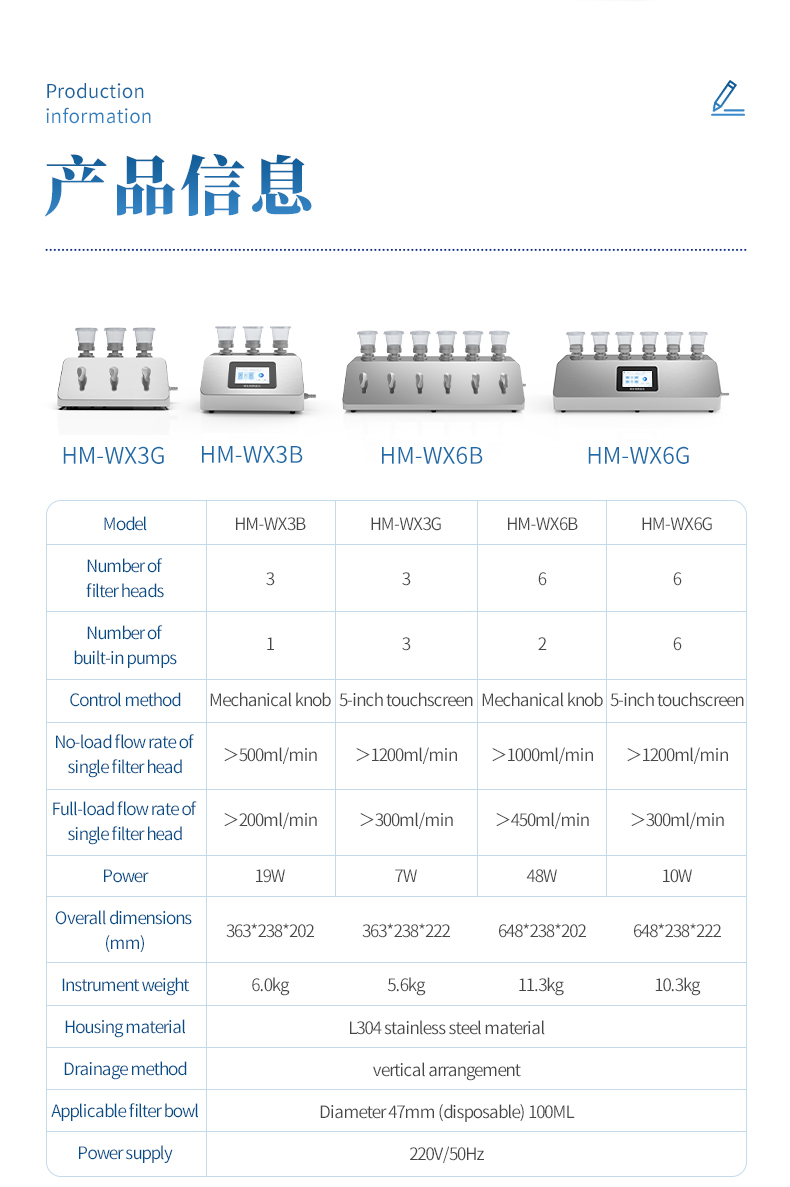

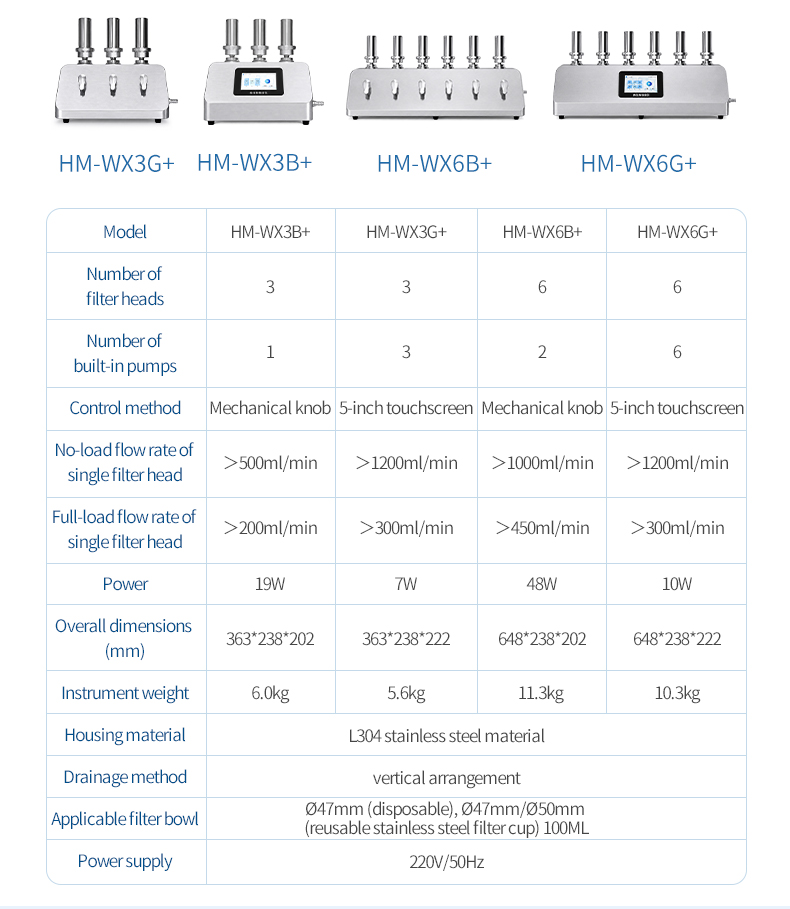

Technical Specifications

FAQ

Q: How does the HM-WX6G support GMP water system monitoring?

A: The HM-WX6G supports GMP compliance through three key mechanisms: programmable timers ensure consistent filtration duration across all operators and shifts; electronic parameter recording creates an automatic audit trail of filtration time and settings for each test run; and six independent pumps guarantee that vacuum pressure remains consistent at every station. These features collectively address the reproducibility and traceability requirements that GMP inspectors evaluate during facility audits.

Q: What is the advantage of six independent pumps over a shared-pump design?

A: In shared-pump designs, activating additional channels can reduce the vacuum at already-running stations, causing inconsistent filtration rates across channels. The HM-WX6G's six independent pumps ensure that each station receives identical vacuum pressure regardless of how many channels are operating simultaneously. This is critical for GMP compliance, where method consistency must be demonstrated across all test conditions.

Q: How many water system sampling points can be tested in a single shift?

A: With six channels running simultaneously and an average filtration time of 2-5 minutes per sample, a single operator can typically process 60-120 samples in an 8-hour shift, including setup, filter transfer, and documentation time. This capacity is well-suited for pharmaceutical facilities with 10-20 water system monitoring points that require daily or per-shift testing.

Q: Can the electronic records be used for regulatory submissions?

A: The electronic parameter recording captures filtration time and settings data that can be reviewed on the touchscreen display. For GMP documentation purposes, the recorded data supports the traceability requirements of test method documentation and can be transcribed into electronic lab notebooks or batch records. The instrument provides the raw data for compliance documentation; your quality system determines how this data is incorporated into formal records.

Q: What happens if one channel requires maintenance during a test run?

A: Each channel operates independently with its own pump and control. If one channel requires attention, the other five channels continue operating without interruption. The plug-in pump head structure allows quick disassembly and reassembly, minimizing downtime for the affected channel while the remaining stations continue processing samples.

Q: What after-sales support does HM Instruments provide?

A: HM Instruments provides a 1-year warranty, 24-hour response through 280 service outlets nationwide, lifelong technical support, and lifelong spare parts supply. Software updates for the touchscreen interface are provided free of charge for the instrument's lifetime. The company holds ISO 9001 certification for quality management.

Q: How does the touchscreen interface handle gloved operation in aseptic areas?

A: The 5-inch LCD touchscreen is designed for laboratory environments and responds reliably to gloved finger input. The interface uses large, clearly labeled buttons and menus to minimize selection errors when wearing nitrile or latex gloves commonly used in pharmaceutical aseptic testing areas.
