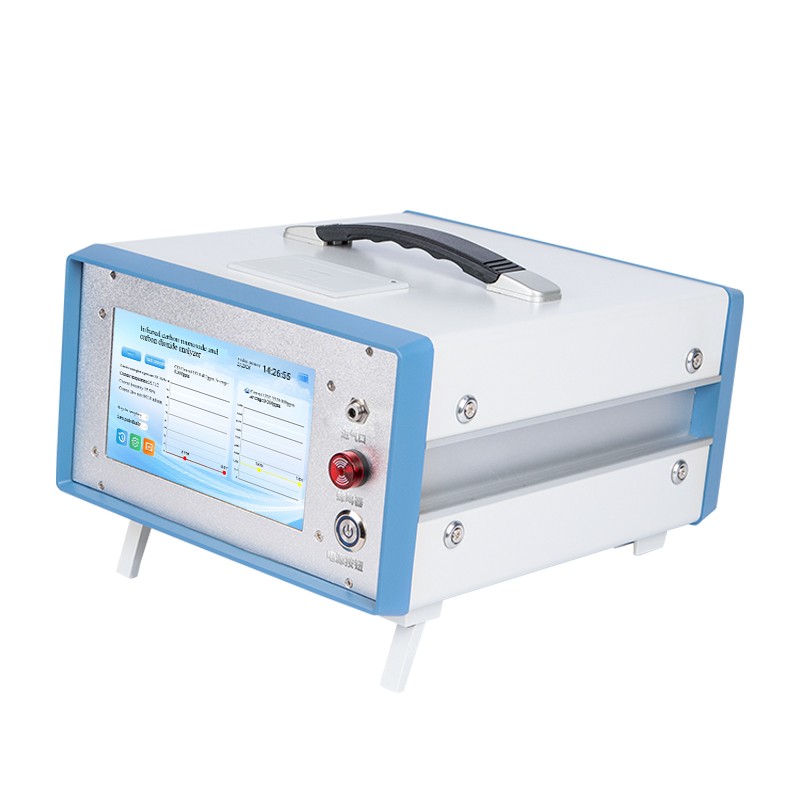

Infrared Carbon Monoxide Analyzer

【Introduction】NDIR pump-sampled carbon monoxide measurement. Range: 0–50 ppm. Includes a 7-inch touchscreen and USB data export.

Product model: HM-100A

+86 17853698681

Product details
Detail image
Related products
Related articles

Infrared gas analyzer series product presentation

Infrared gas analyzer pump, display and recording features

Infrared gas analyzer environmental and hygiene monitoring applications

Infrared gas analyzer method references

Infrared gas analyzer Android touchscreen operation

Infrared gas analyzer thermal printing function

Infrared gas analyzer digital sampling-flow display

Infrared gas analyzer internal heating and temperature compensation

Infrared gas analyzer zeroing and data-recording functions

Infrared gas analyzer series technical specification comparison

HM Instruments company and team presentation

HM Instruments laboratory and manufacturing presentation

Product Overview

The HM-100A from HM Instruments uses nondispersive infrared absorption to measure carbon monoxide in air. A built-in sampling pump supplies the gas to the measurement path, while the touchscreen displays concentration and operating information.

Key Features

A 7-inch capacitive touchscreen and Android interface support measurement control and data review.
Digital flow sensing provides sampling-flow information during measurement.
Nitrogen and catalytic zeroing, with internal path switching, support zero adjustment.
A thermal printer, USB export and storage for more than 100000 records support test documentation.
Audible and visual alarms indicate configured operating conditions.

Applications

Use for air measurements in environmental protection and monitoring, public-place hygiene, occupational hygiene, disease-control work and research. Select the gas channel and range for the expected concentration, and match sampling temperature and humidity to the specified operating conditions.

Technical Specifications

Parameter	Specification
Principle	Nondispersive infrared absorption (NDIR)
Measured gas	carbon monoxide
Sampling	Built-in pump
Measurement range	0–50 ppm
Resolution	0.1 ppm
Linear error	≤±2% FS
Repeatability	≤1.0%
Span drift	≤±2% FS over 3 h
Zero drift	≤±1% FS per hour
Response time	≤90 s
Warm-up	5 minutes
Flow range	0.5–2.0 L/min
Operating temperature	0–45 °C
Humidity	0–95% RH
Display	7-inch capacitive touchscreen
Record storage	More than 100000 records
Supply	Rechargeable battery, AC/DC operation
Dimensions	257.3 × 147 × 300 mm

Operation and Support

Warm up the instrument for the stated five-minute period, establish zero using the selected zeroing procedure and set the sampling flow within the specified range. Keep the sample within the gas-channel temperature limits. Store, export or print readings under the monitoring procedure; optional 4G communication requires the corresponding module.
