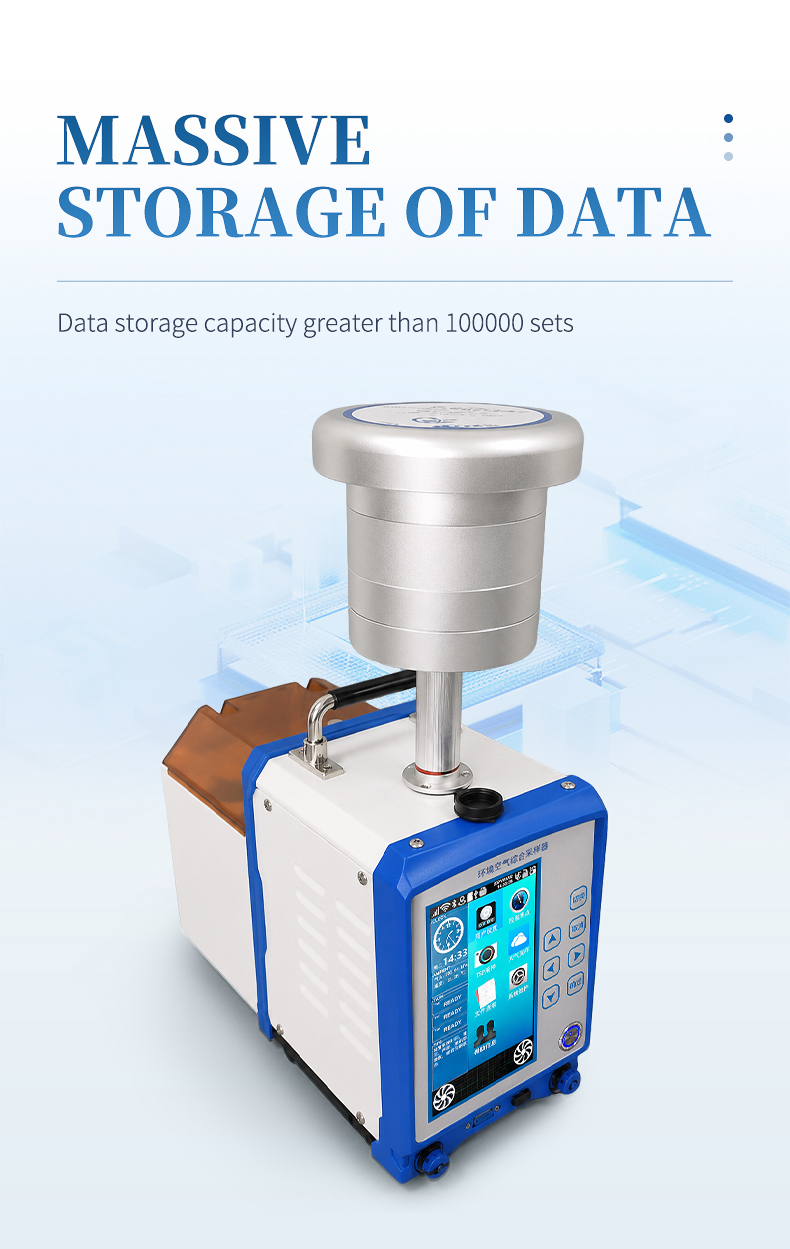

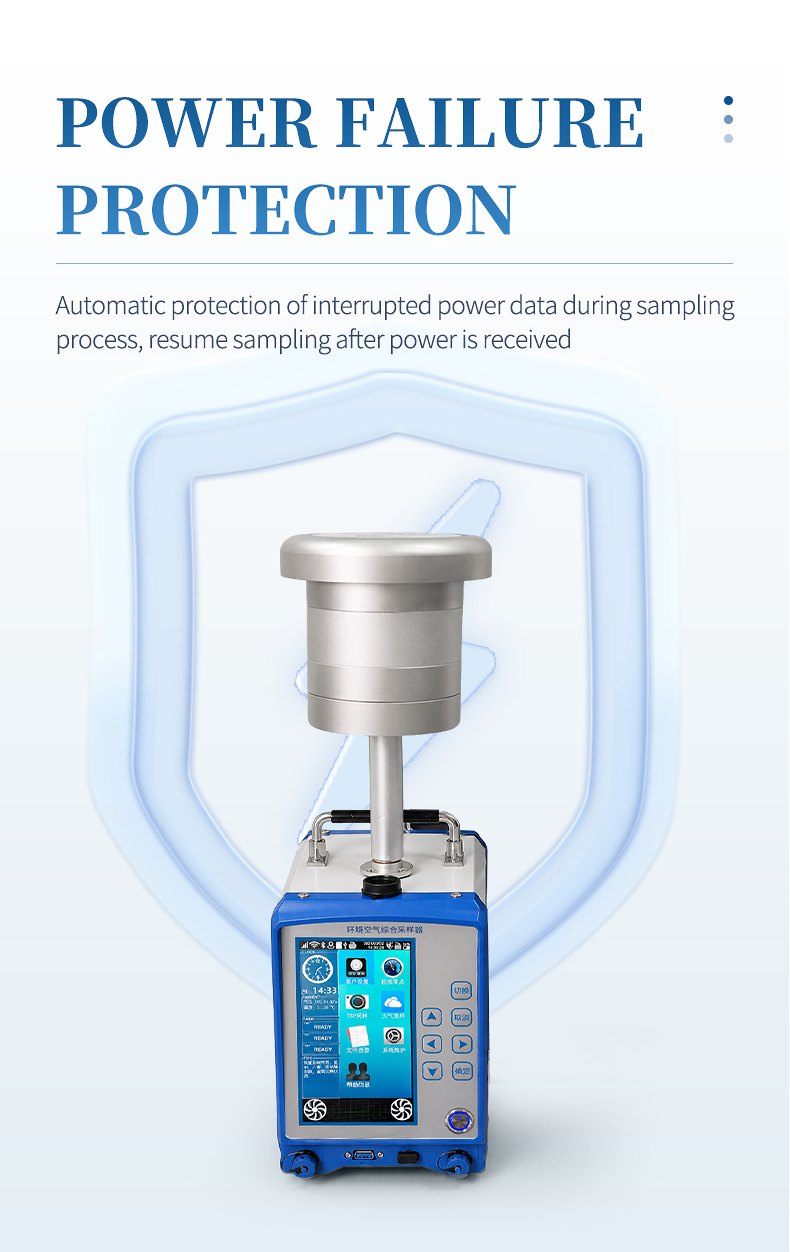

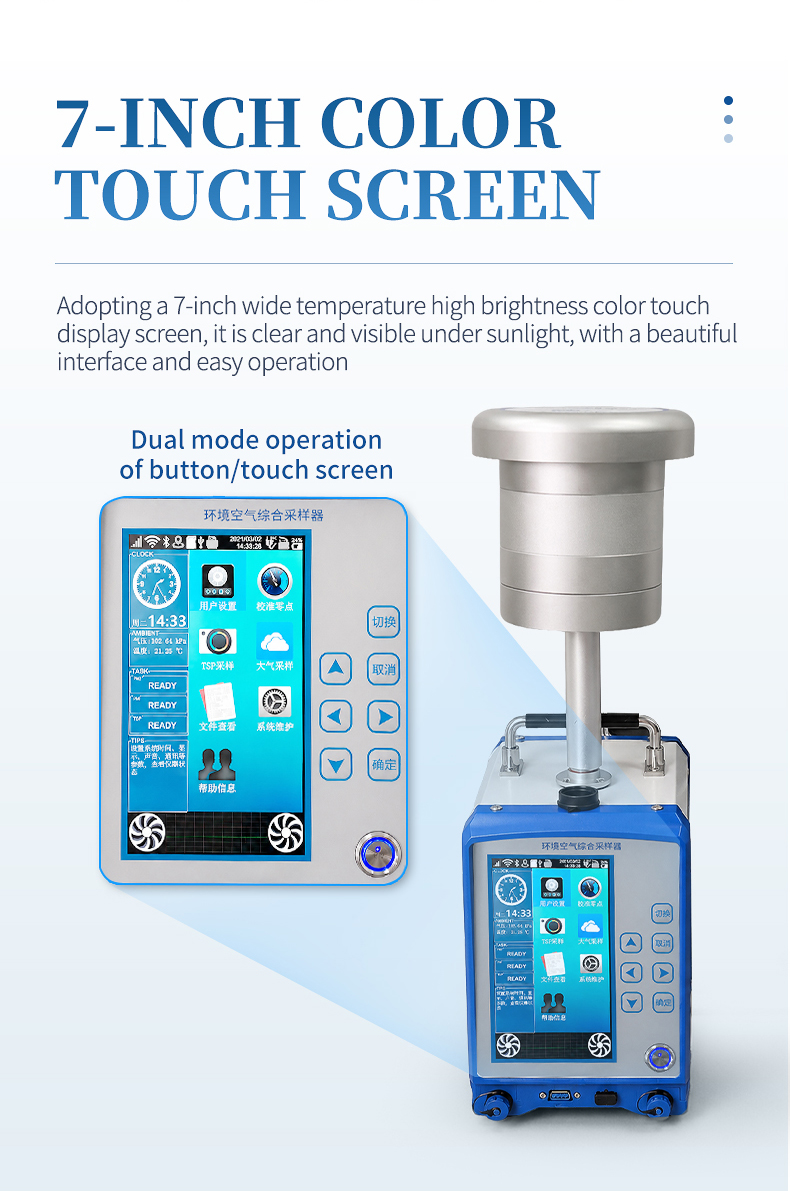

High Neg Pressure Air Sampler for Mining and Harsh Conditions

Product Introduction

Mine ventilation engineers, occupational health professionals, and environmental compliance officers face a persistent challenge: conventional air samplers lose flow accuracy when deployed in high-resistance underground environments or at high altitudes where atmospheric pressure drops significantly. In deep mine shafts, particulate-laden air and restrictive sampling pathways create back-pressure conditions that cause standard samplers to deliver inconsistent sample volumes, compromising measurement validity and regulatory compliance. At elevated altitudes, reduced atmospheric pressure affects both pump performance and flow calculation, introducing systematic errors that go unnoticed until audit time.

The HM-H7 high negative pressure dual constant-flow air sampler from HM Instruments directly addresses these problems. Its dual independent constant-flow channels actively compensate for filter loading and back-pressure variations, maintaining flow stability better than ±2.0% even when the pre-gauge pressure drops to -35 kPa — conditions where single-pump samplers without active compensation can deviate by 10% or more. The wide atmospheric pressure range of 50 to 110 kPa enables automatic barometric compensation at altitudes up to approximately 5,000 meters, eliminating manual pressure corrections that introduce human error.

Particulate sampling covers the full 10 to 130 L/min range at ±2.0% accuracy, supporting TSP, PM10, and PM2.5 collection in compliance with HJ 93-2026, HJ/T 374-2007, and JJG 943-2011 standards. The sampling timer accommodates intervals from 1 minute to 99 hours 59 minutes, allowing both short-term grab samples for rapid hazard assessment and extended 24-hour runs for compliance-grade data. Power flexibility is critical in mining and remote environments: the HM-H7 operates on AC 220V ±10% 50Hz for stationary installations or DC 29.4V/5A external battery packs for underground and off-grid deployment, with power consumption below 100W. At approximately 4.0 kg and measuring 165 × 330 × 275 mm, the instrument is portable enough for vertical shaft transport while delivering industrial-grade sampling performance. At $1,200, the HM-H7 provides a purpose-built solution for organizations that cannot tolerate the sample volume uncertainty of conventional samplers in extreme conditions.

Applications

• Underground mine air monitoring. Particulate and gas sampling in coal, metal, and non-metal mines where high dust loads and restricted ventilation create high-resistance sampling conditions.
• High-altitude environmental monitoring. Air quality assessment at plateau and alpine research stations where atmospheric pressure drops below standard conditions and conventional samplers require manual correction.
• Industrial occupational health. Workplace air sampling in steel mills, cement plants, and chemical factories with high particulate concentrations and long sampling lines.
• Emergency response and incident monitoring. Rapid deployment for air quality assessment after chemical spills, dust explosions, or fire events in industrial facilities.
• Tunnel and confined space monitoring. Air sampling during construction and maintenance of tunnels, underground utilities, and confined space operations.
• Regulatory compliance monitoring. Extended 24-hour TSP, PM10, and PM2.5 sampling per HJ 93-2026 and HJ/T 374-2007 at industrial and mining sites.
• Heavy industry perimeter monitoring. Fence-line particulate monitoring at steel, cement, and mineral processing facilities for community impact assessment.

Key Features and Advantages

1. High negative pressure dual constant-flow channels. Two independent sampling channels with active flow compensation maintain stable flow under extreme negative pressure down to -35 kPa — eliminating the sample volume drift that invalidates data from conventional samplers in mine shafts and restricted pathways.

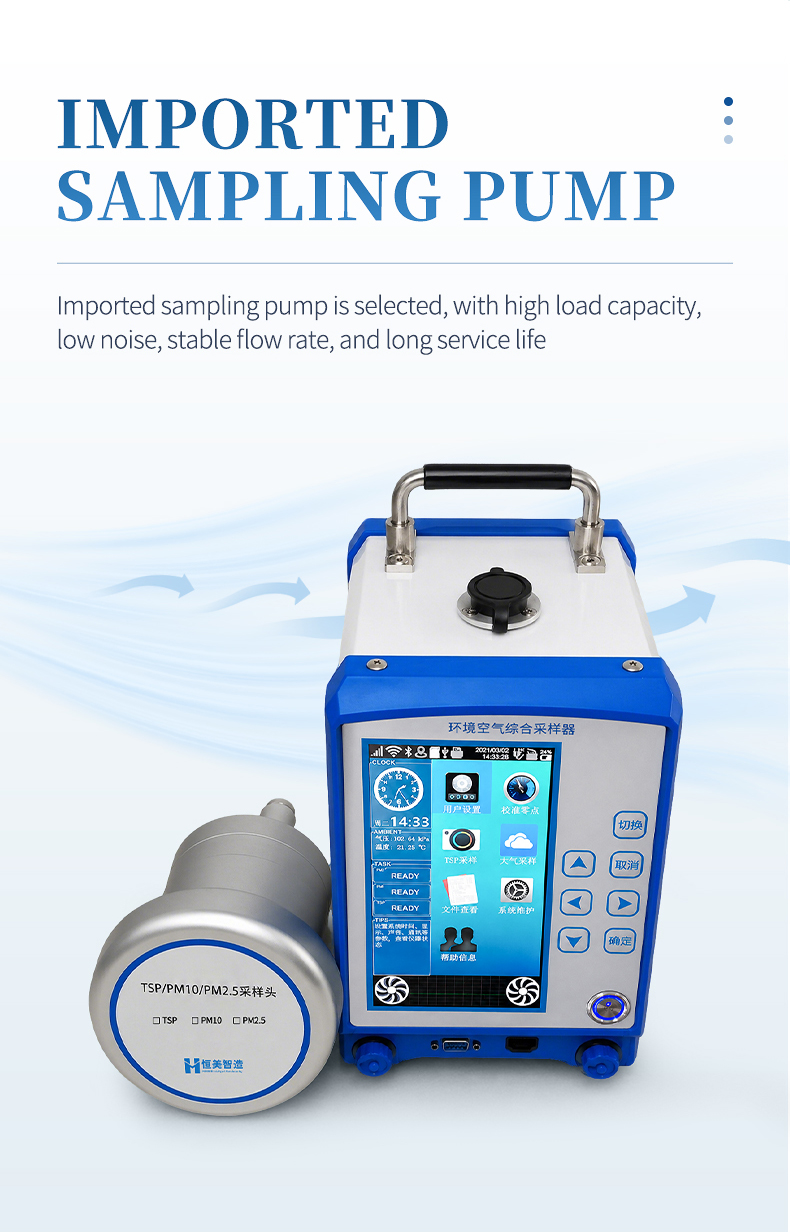

2. Flow stability better than ±2.0%. Automatic real-time compensation for filter loading, temperature changes, and pressure variations ensures consistent sample volume accuracy throughout extended sampling runs.
3. Wide atmospheric pressure range (50–110 kPa). Built-in barometric sensor and automatic compensation enable accurate sampling at altitudes up to approximately 5,000 meters without manual pressure corrections.
4. Particulate sampling 10–130 L/min at ±2.0% accuracy. Full-range compliance with HJ 93-2026 and HJ/T 374-2007 for TSP, PM10, and PM2.5 monitoring — no separate low-flow and high-flow instruments required.

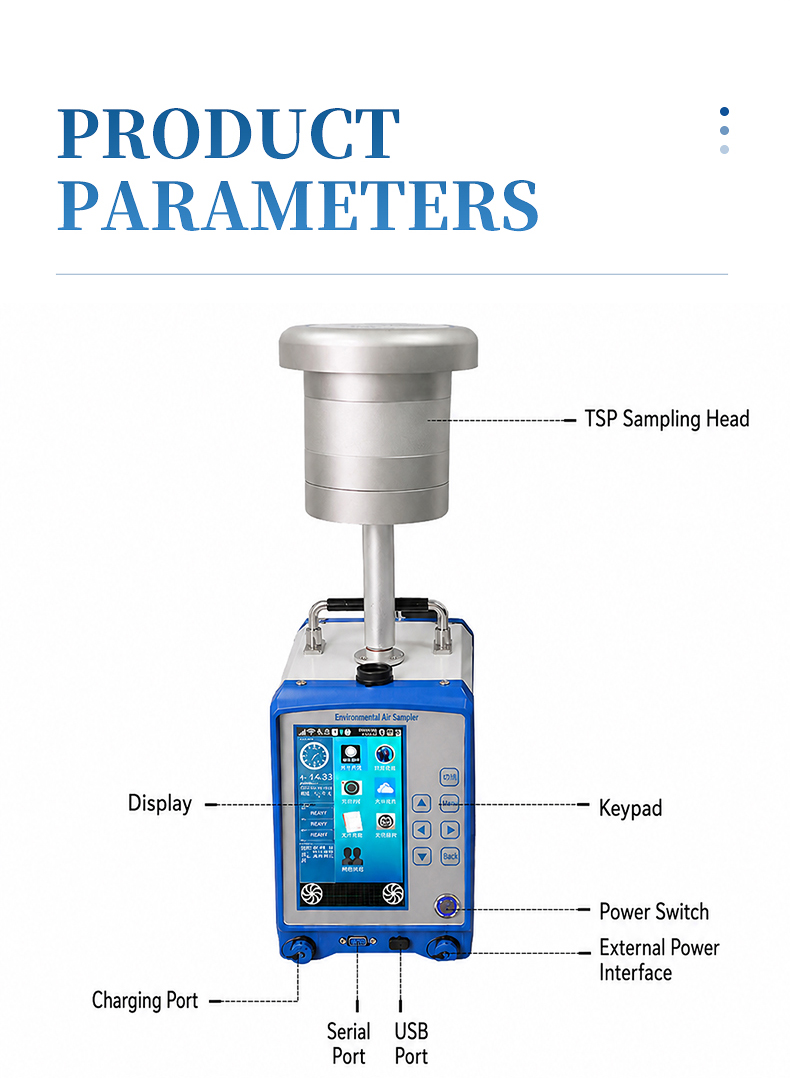

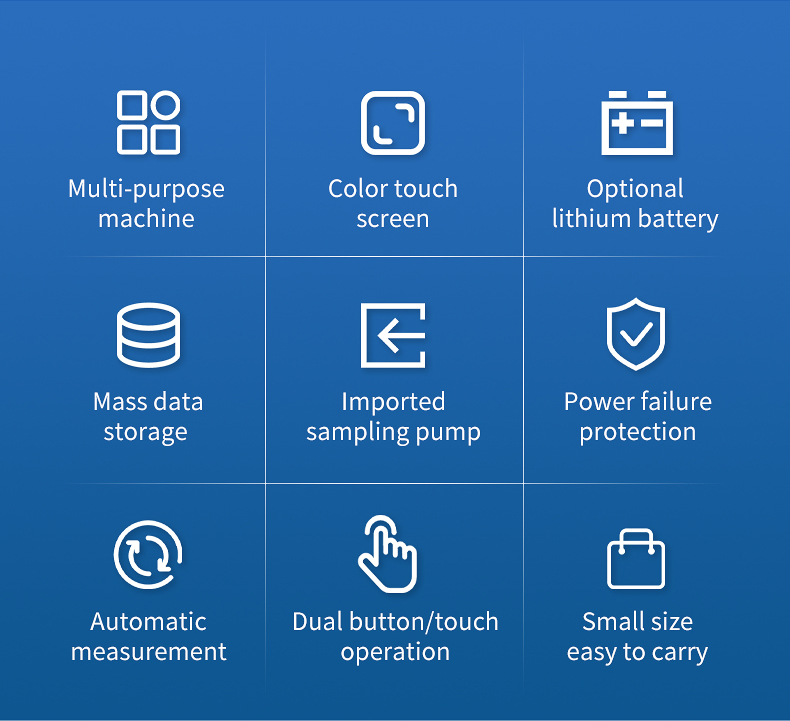

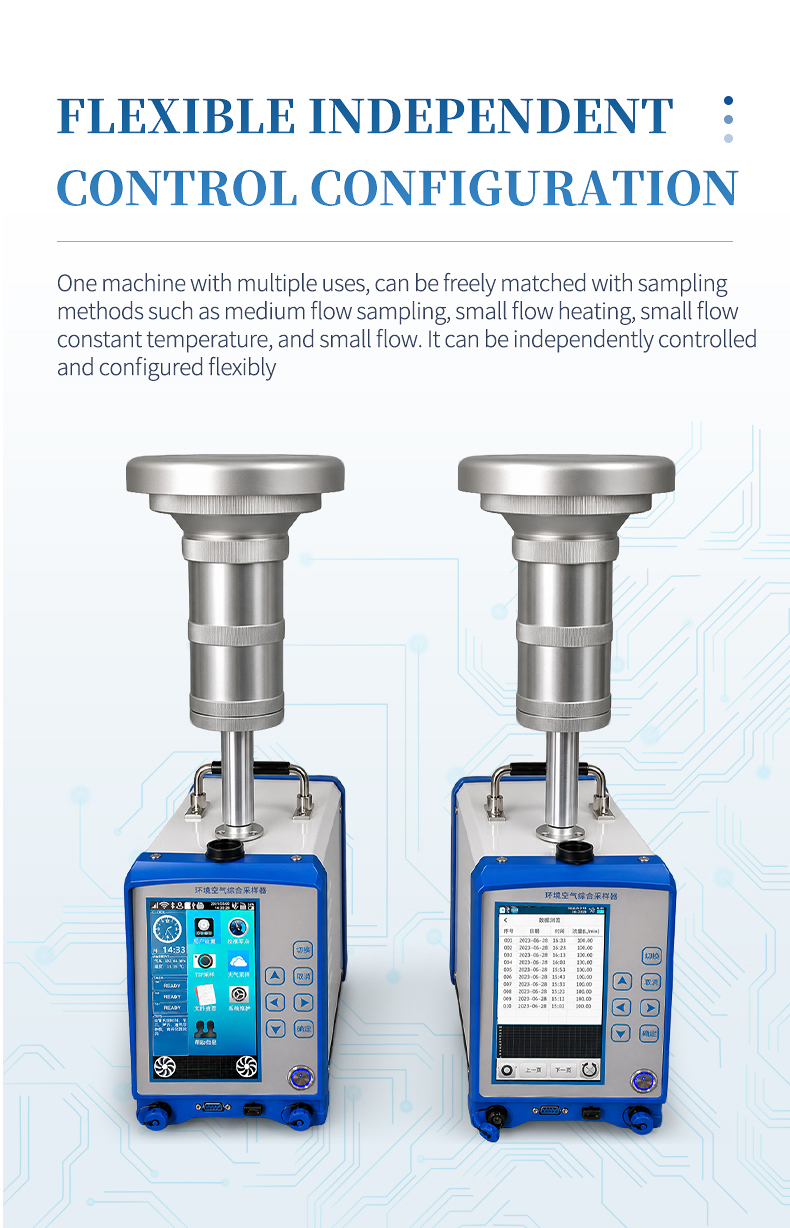

5. Dual independent sampling channels. Simultaneous gas and particulate sampling, or dual-channel particulate collection with individually controlled flow rates — reducing the number of instruments needed per monitoring point.
6. Pre-gauge pressure range -35 to 35 kPa. Wide-range pressure measurement validates pump performance and documents operating conditions for audit and quality assurance purposes.
7. Sampling time from 1 min to 99 h 59 min. Supports both rapid spot-check measurements for hazard assessment and extended 24-hour runs for regulatory compliance data.

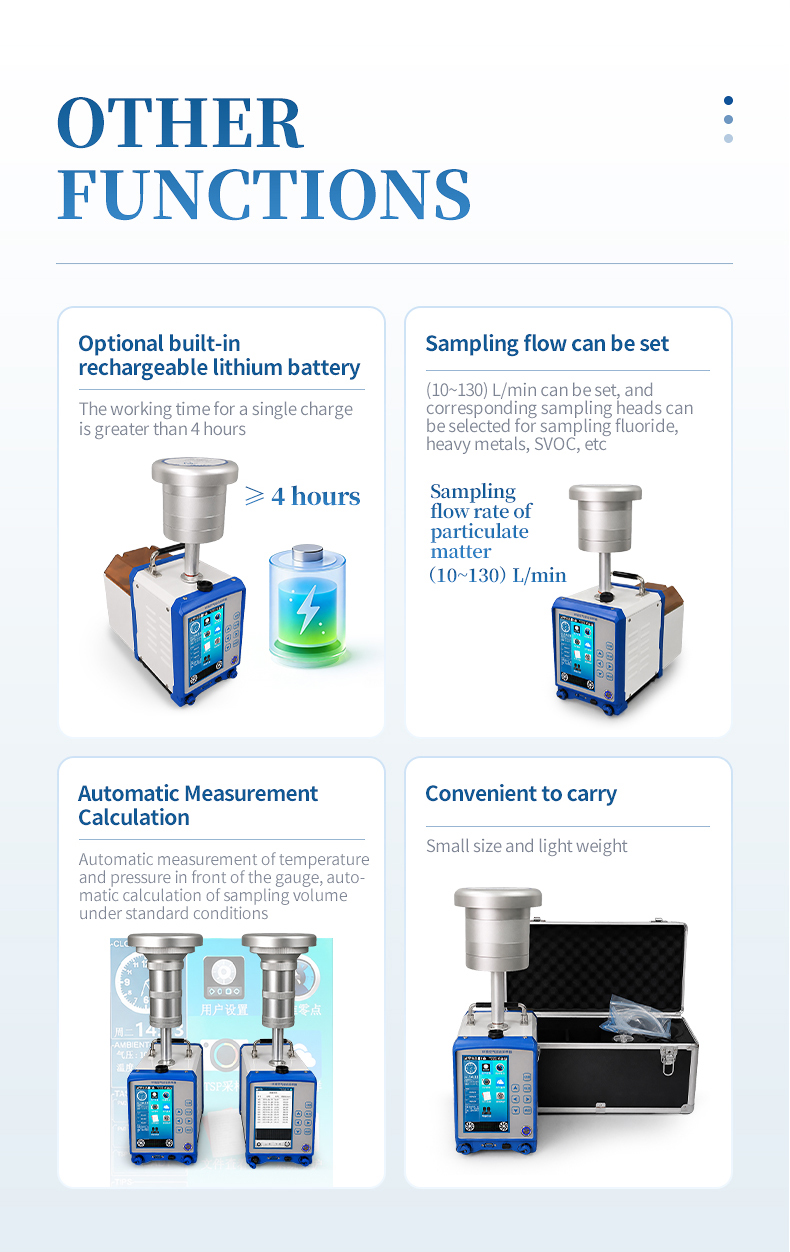

8. AC/DC dual power supply. AC 220V ±10% 50Hz for permanent installations; DC 29.4V/5A external battery for underground deployment where mains power is unavailable.
9. Power consumption below 100W. Energy-efficient design compatible with battery packs, portable generators, and solar power systems for remote and off-grid monitoring stations.
10. Noise level below 60 dB(A). Quiet operation suitable for indoor workplace monitoring and residential area perimeter sampling without disturbing occupants.
11. Compact and portable (165 × 330 × 275 mm, ~4.0 kg). Easy transport through mine shafts, up scaffolding, and to remote monitoring points — no heavy equipment handling required.

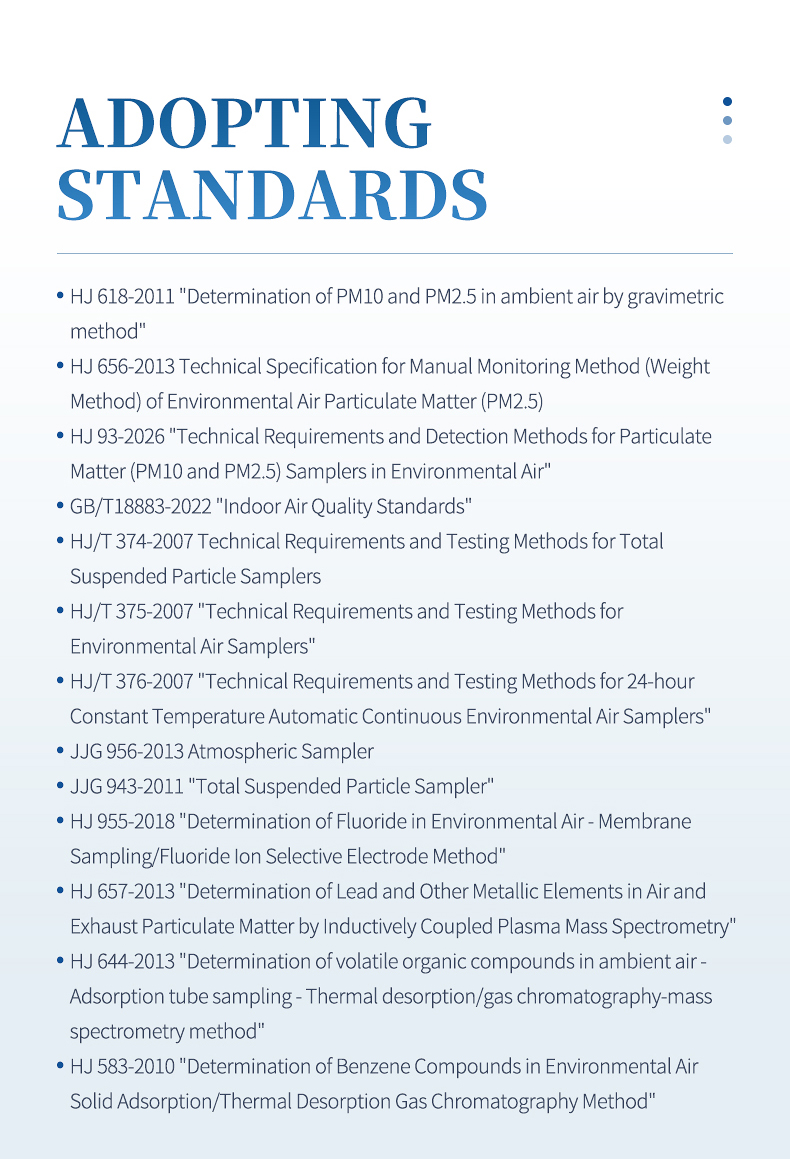

12. Compliance with multiple national standards. Meets HJ 93-2026, HJ/T 374-2007, HJ/T 375-2007, HJ/T 376-2007, JJG 956-2013, and JJG 943-2011 — accepted by environmental and occupational health regulatory authorities.

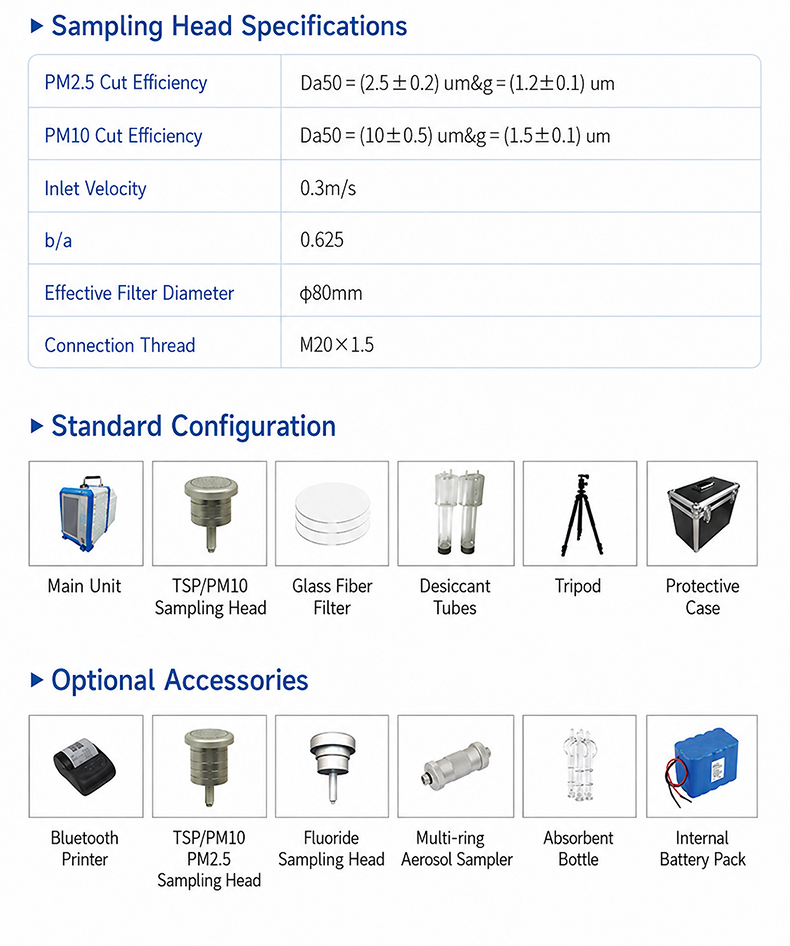

13. PM2.5 and PM10 impactor cutting heads. Precision-engineered cutters with Da50 = (2.5±0.2) μm and (10±0.5) μm respectively, ensuring accurate size fractionation for regulatory-grade particulate sampling.
14. Effective filter diameter φ80 mm. Standard filter size compatible with common gravimetric analysis protocols and laboratory balance equipment.

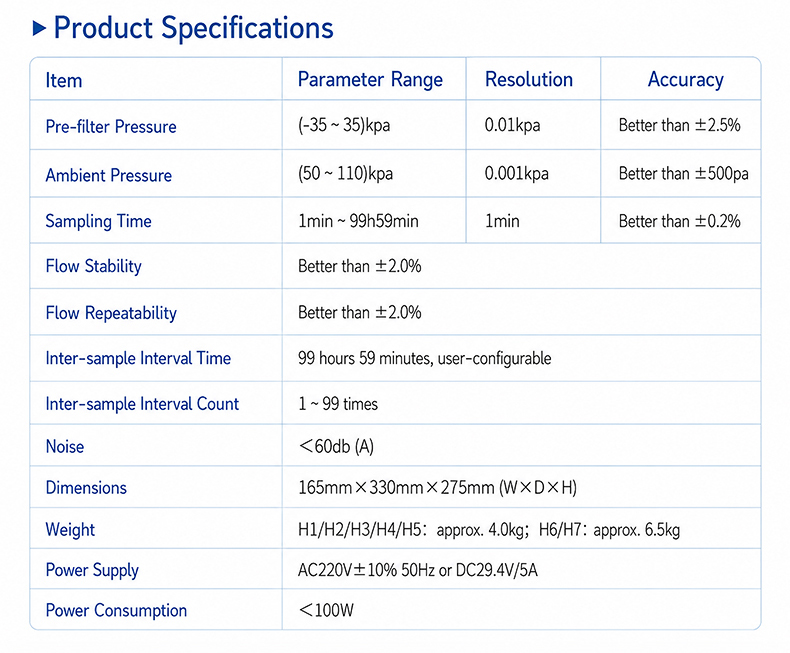

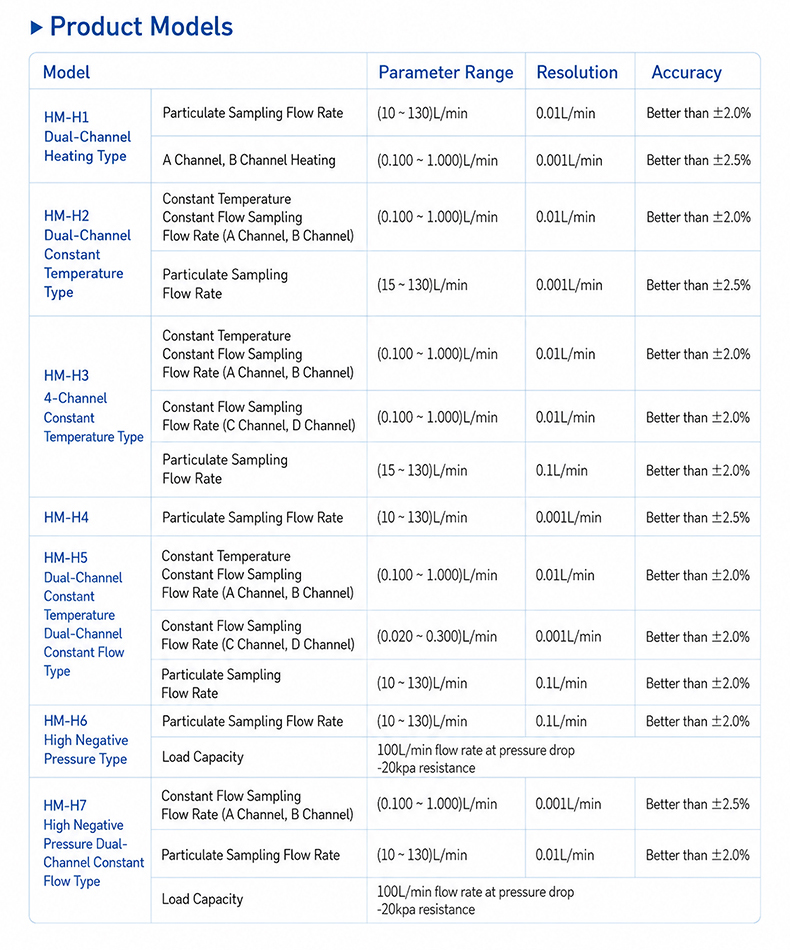

Technical Specifications

FAQ
